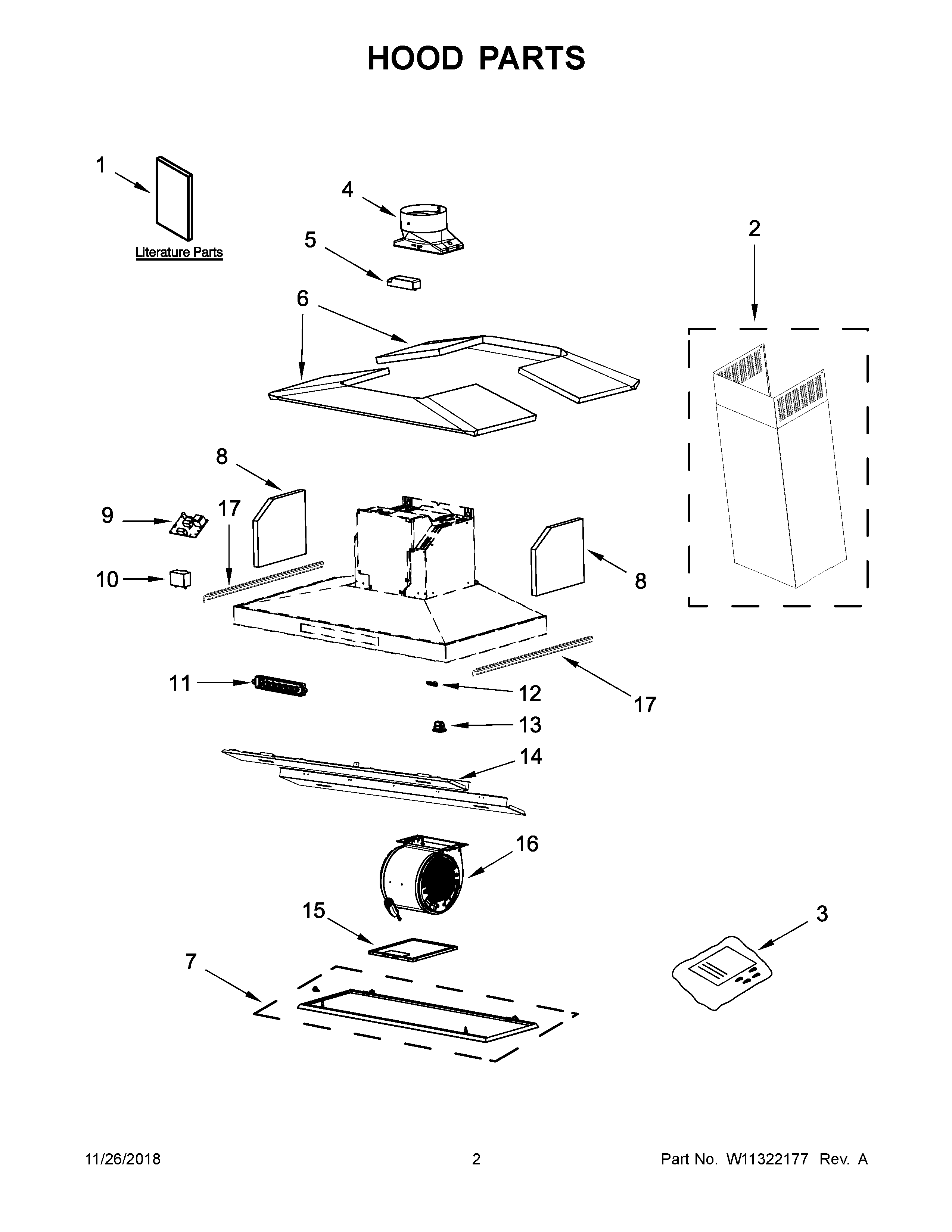

JXI8536HS0 02 – HOOD PARTS

Products

Position	Product
NI	ACCESSORIES, KIT, CHIMNEY EXTENSION
NI	MAY W10446915
NI	ACCESSORIES, KIT, IN-LINE SMART
NI	ACCESSORIES, KIT, CHARCOAL FILTER (FOR NON-VENTED INSTALLATIONS ONLY)
NI	ACCESSORIES, KIT, RECIRCULATION (FOR NON-VENTED INSTALLATIONS ONLY)
NI	ACCESSORIES, KIT, POWER CORD
1	USE AND CARE GUIDE
2	CHIMNEY, UPPER AND LOWER
3	HARDWARE, INSTALLATION
4	DAMPER, HOOD
5	DRIVER, LED
6	INSULATION (36" MODEL ONLY)
7	PANEL, PERIMETRIC (36" MODEL ONLY)
8	INSULATION, SIDE
9	BOARD, CONTROL
10	CAPACITOR (25 MF)
11	CONTROL, ELECTRONIC
12	SENSOR, SPEED
13	CLIP, PANEL
14	PANEL, LED LAMPS
15	FILTER, GREASE
16	BLOWER, FAN
17	LED STRIP, AMBIENT
