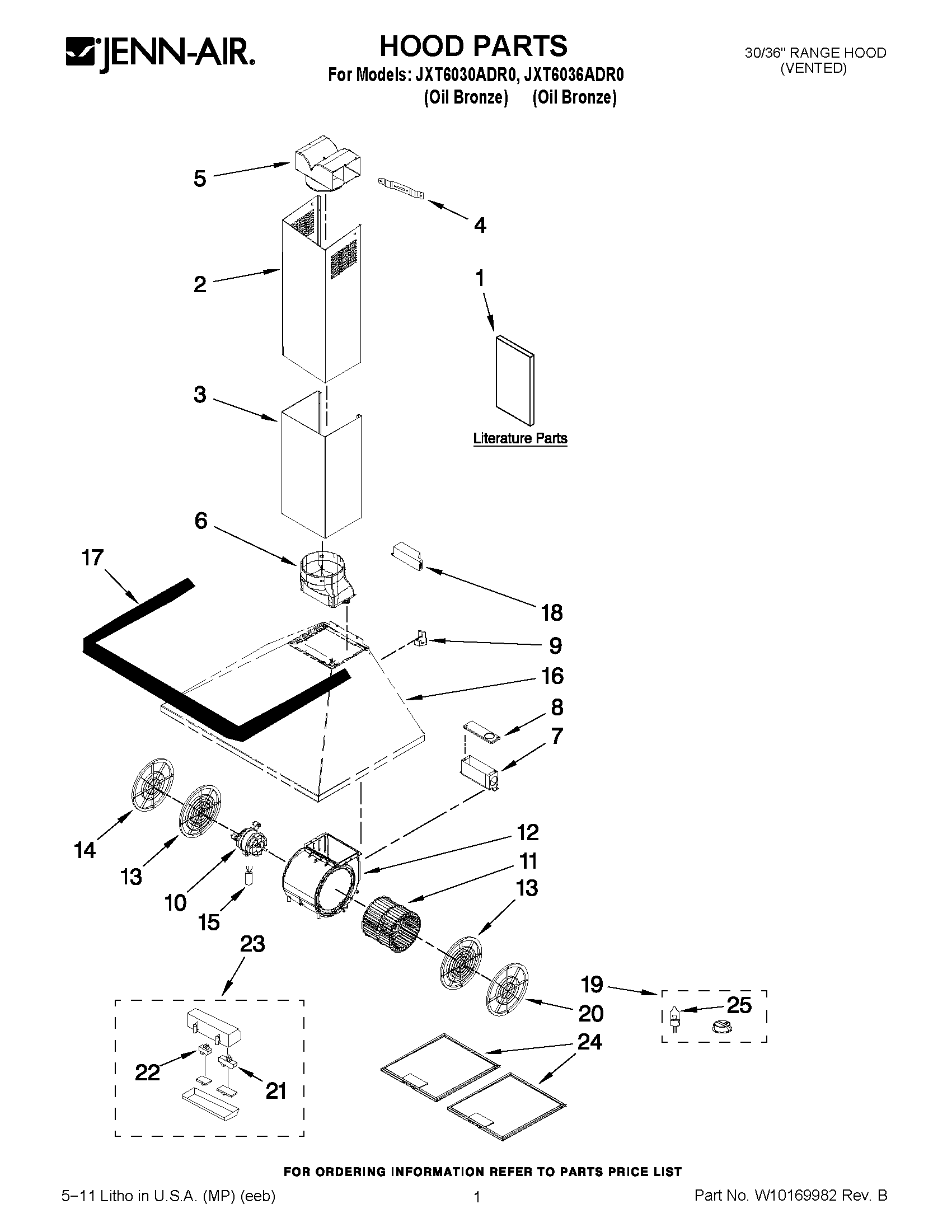

JXT6030ADR0 01 – HOOD PARTS
Written by
in
JXT6030ADR0 01 – HOOD PARTS
Products
Position
Product
NI
MAY W10169963
1
MAY W10173691
1
MAY W10173692
2
MAY W10169943
3
MAY W10169941
4
MAY 8190843
5
MAY W10169958
6
Duct, Air Connect
7
MAY W10169952
8
COVER
9
MAY 8190805
10
MAY W10169948
11
MAY W10169955
12
MAY 8190813
13
MAY W10169945
14
MAY W10169962
15
CAPACITOR
16
LINER (NOT A SERVICEABLE PART)
17
Trim (Frame) (36“ Hood)
17
MAY W10169944
18
Transformer (110-127V,20-6W)
19
BULB, ASSEMBLY
20
MAY W10169946
21
MAY 8190854
22
MAY 8190855
23
MAY W10169947
24
MAY W10169961
25
MAY W10298151
←
