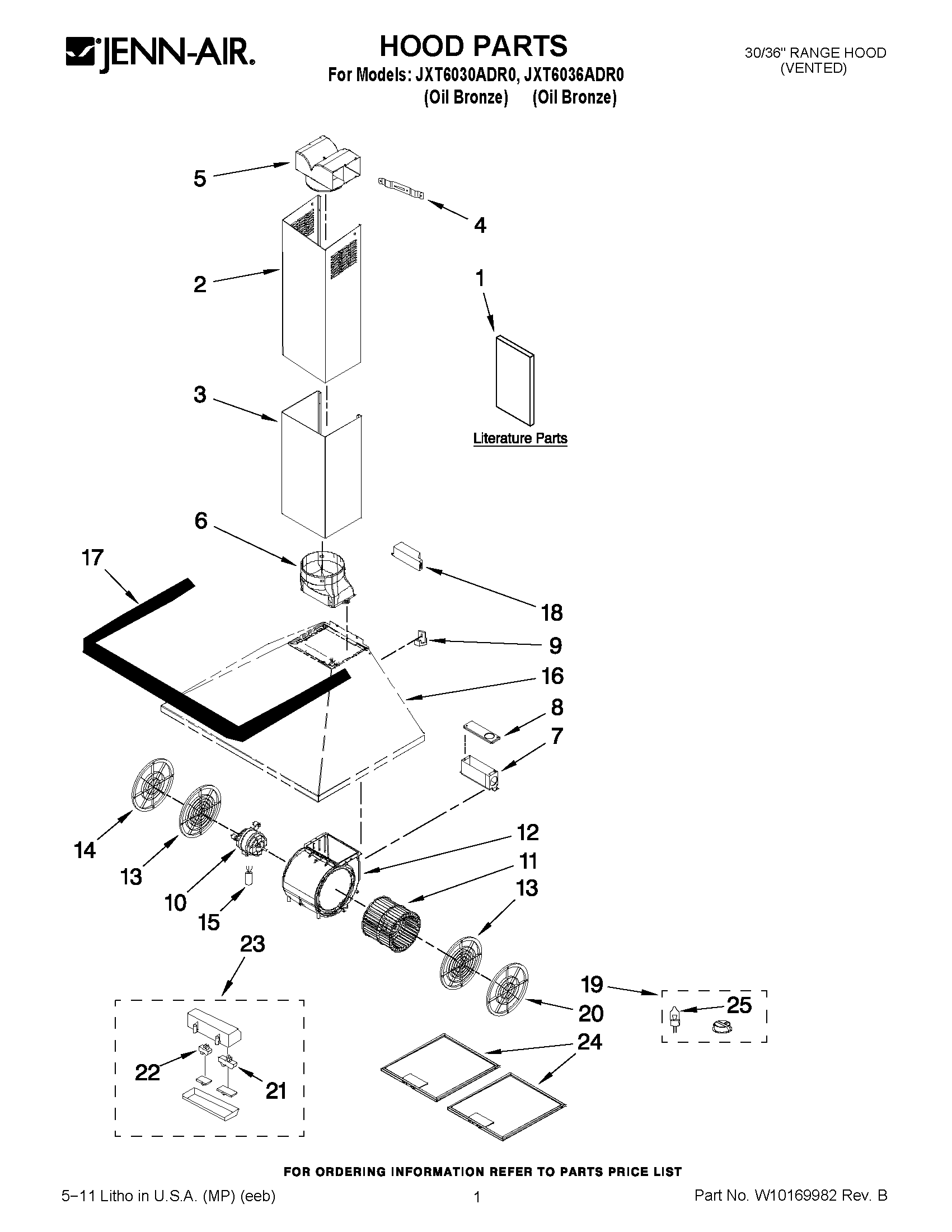

JXT6036ADR0 01 – HOOD PARTS

Products

Position	Product
NI	MAY W10169963
1	MAY W10173691
1	MAY W10173692
2	MAY W10169943
3	MAY W10169941
4	MAY 8190843
5	MAY W10169958
6	Duct, Air Connect
7	MAY W10169952
8	COVER
9	MAY 8190805
10	MAY W10169948
11	MAY W10169955
12	MAY 8190813
13	MAY W10169945
14	MAY W10169962
15	CAPACITOR
16	LINER (NOT A SERVICEABLE PART)
17	Trim (Frame) (36“ Hood)
17	MAY W10169944
18	Transformer (110-127V,20-6W)
19	BULB, ASSEMBLY
20	MAY W10169946
21	MAY 8190854
22	MAY 8190855
23	MAY W10169947
24	MAY W10169961
25	MAY W10298151
