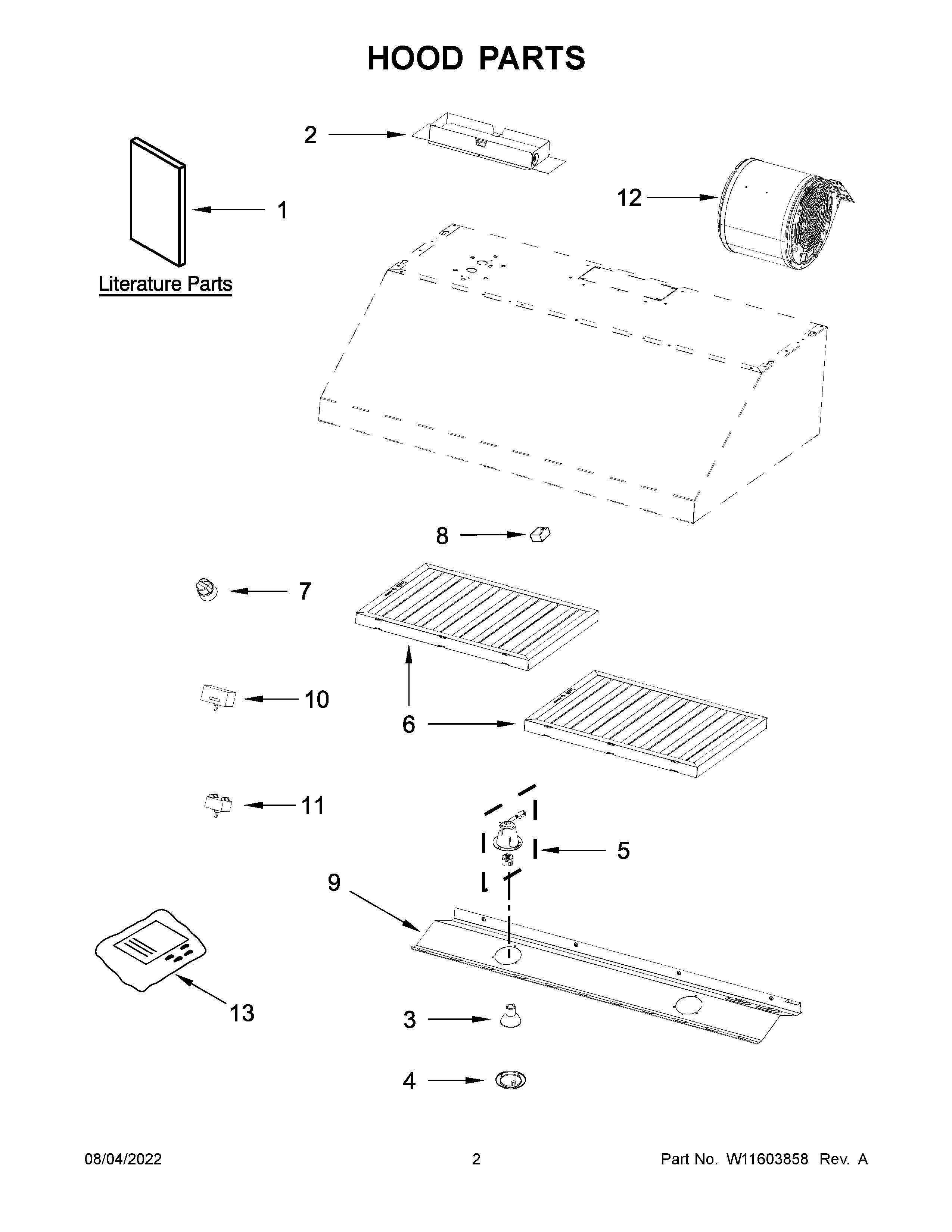

JXU9130HP3 02 – HOOD PARTS

JXU9130HP3 02 – HOOD PARTS

Written by

in

JXU9130HP3 02 – HOOD PARTS

Products

PositionProduct
1OWNERS MANUAL
2W11516461 Whirlpool Hood Damper
3W11388881 Whirlpool Light Assembly
4W10351924 Whirlpool Bezel
5HOUSING, LAMP
6W10351890 Whirlpool Filter
6AW10351892 Whirlpool Filter Assembly
7WPW10294009 Whirlpool Control Knob
8W11715950 Whirlpool Capacitor Assembly
9W10295809 Whirlpool LT Support
9ACONTROL PANEL (36" MODEL ONLY)
10W10293968 Whirlpool Rotary Switch
11W10293967 Whirlpool Rotary Switch
12WPW10293966 Whirlpool Blower Fan
13HARDWARE, INSTALLATION
