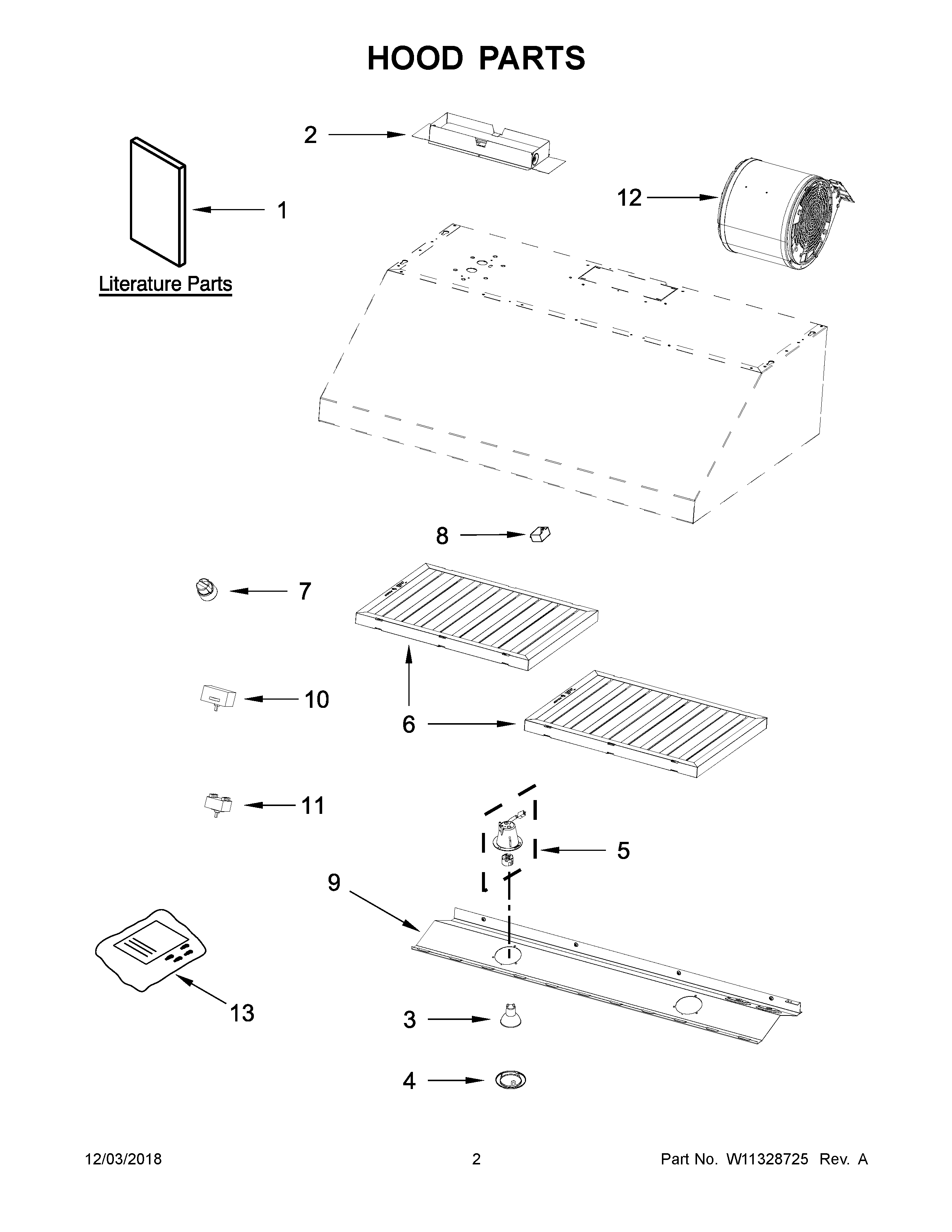

JXU9136HP0 02 – HOOD PARTSadmin2025-04-26T09:03:15+00:00JXU9136HP0 02 – HOOD PARTS
Products
| Position | Product |
|---|
| NI | ADJUSTABLE, BACKSPLASH |
| NI | ACCESSORIES, COVER, CHIMNEY 36" MODEL ONLY |
| NI | ACCESSORIES, COVER, CHIMNEY 30" MODEL ONLY |
| NI | ACCESSORIES, KIT, BACKSPLASH 30" WITHOUT SHELVES |
| NI | ACCESSORIES, KIT, BACKSPLASH 36" WITH SHELVES |
| NI | ACCESSORIES, KIT, BACKSPLASH 30" WITH SHELVES |
| 1 | MAY W11280192 |
| 2 | DAMPER, HOOD |
| 3 | BULB, LIGHT |
| 4 | BEZEL, LAMP |
| 5 | SOCKET, LIGHT |
| 6A | GREASE FILTER (36" MODEL ONLY) |
| 6 | GREASE FILTER (30" MODEL ONLY) |
| 7 | KNOB |
| 8 | CAPACITOR (25 MF) |
| 9A | CONTROL PANEL (36" MODEL ONLY) |
| 9 | CONTROL PANEL (30" MODEL ONLY) |
| 10 | SWITCH, LIGHT |
| 11 | SWITCH, FAN |
| 12 | ASSEMBLY, FAN |
| 13 | HARDWARE, INSTALLATION |
