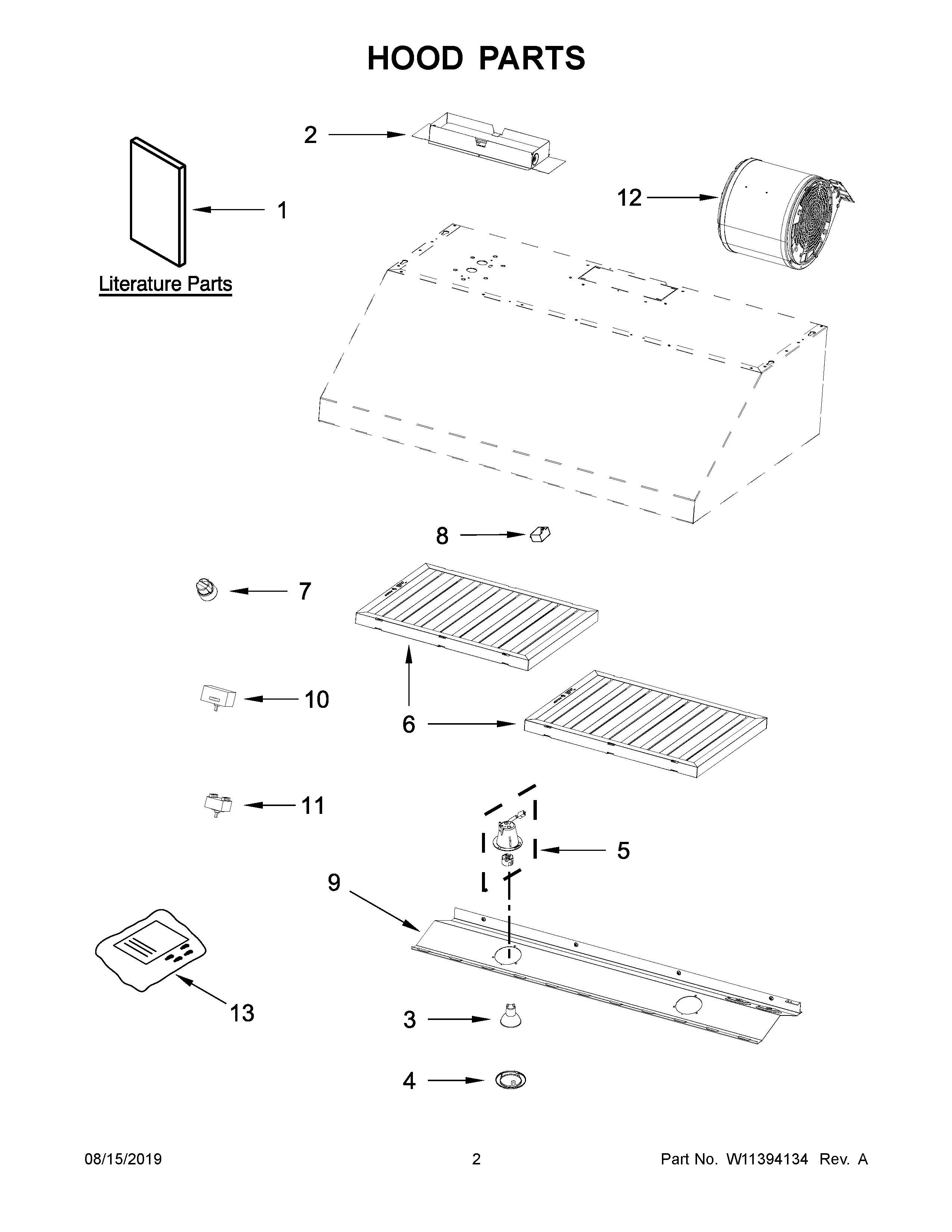

JXU9136HP1 02 – HOOD PARTS

Products

PositionProduct
NIACCESSORIES, COVER, CHIMNEY 36" MODEL ONLY
NIACCESSORIES, COVER, CHIMNEY 30" MODEL ONLY
NIACCESSORIES, KIT, BACKSPLASH 30" WITHOUT SHELVES
NIADJUSTABLE, BACKSPLASH
NIACCESSORIES, KIT, BACKSPLASH 36" WITH SHELVES
NIACCESSORIES, KIT, BACKSPLASH 30" WITH SHELVES
1MAY W11374533
2DAMPER, HOOD
3MAY W11388445
4BEZEL, LAMP
5SOCKET, LIGHT
6AGREASE FILTER (36" MODEL ONLY)
6GREASE FILTER (30" MODEL ONLY)
7KNOB
8CAPACITOR (25 MF)
9CONTROL PANEL (30" MODEL ONLY)
9ACONTROL PANEL (36" MODEL ONLY)
10SWITCH, LIGHT
11SWITCH, FAN
12ASSEMBLY, FAN
13HARDWARE, INSTALLATION
