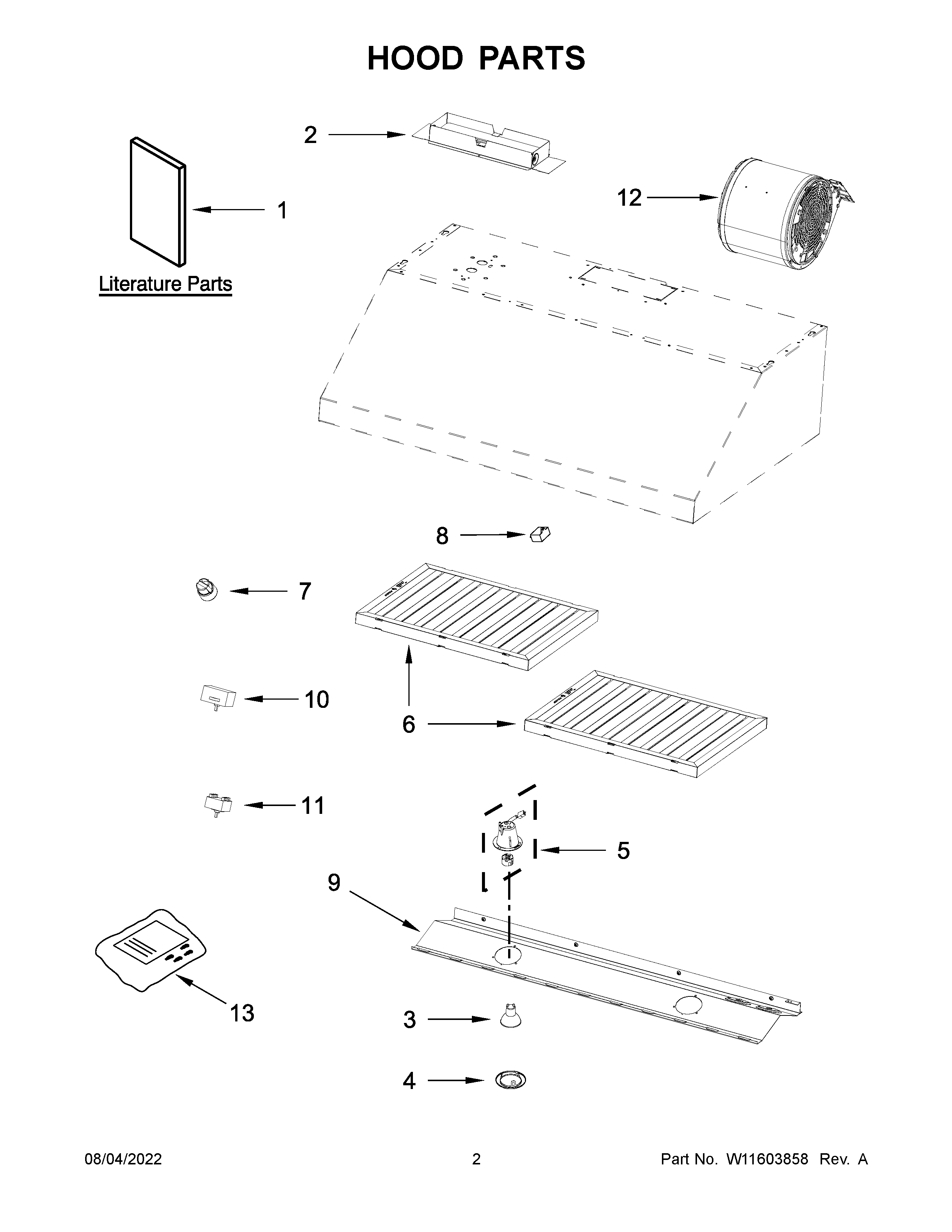

JXU9136HP3 02 – HOOD PARTS

Products

Position	Product
1	OWNERS MANUAL
2	W11516461 Whirlpool Hood Damper
3	W11388881 Whirlpool Light Assembly
4	W10351924 Whirlpool Bezel
5	HOUSING, LAMP
6	W10351890 Whirlpool Filter
6A	W10351892 Whirlpool Filter Assembly
7	WPW10294009 Whirlpool Control Knob
8	W11715950 Whirlpool Capacitor Assembly
9	W10295809 Whirlpool LT Support
9A	CONTROL PANEL (36" MODEL ONLY)
10	W10293968 Whirlpool Rotary Switch
11	W10293967 Whirlpool Rotary Switch
12	WPW10293966 Whirlpool Blower Fan
13	HARDWARE, INSTALLATION
