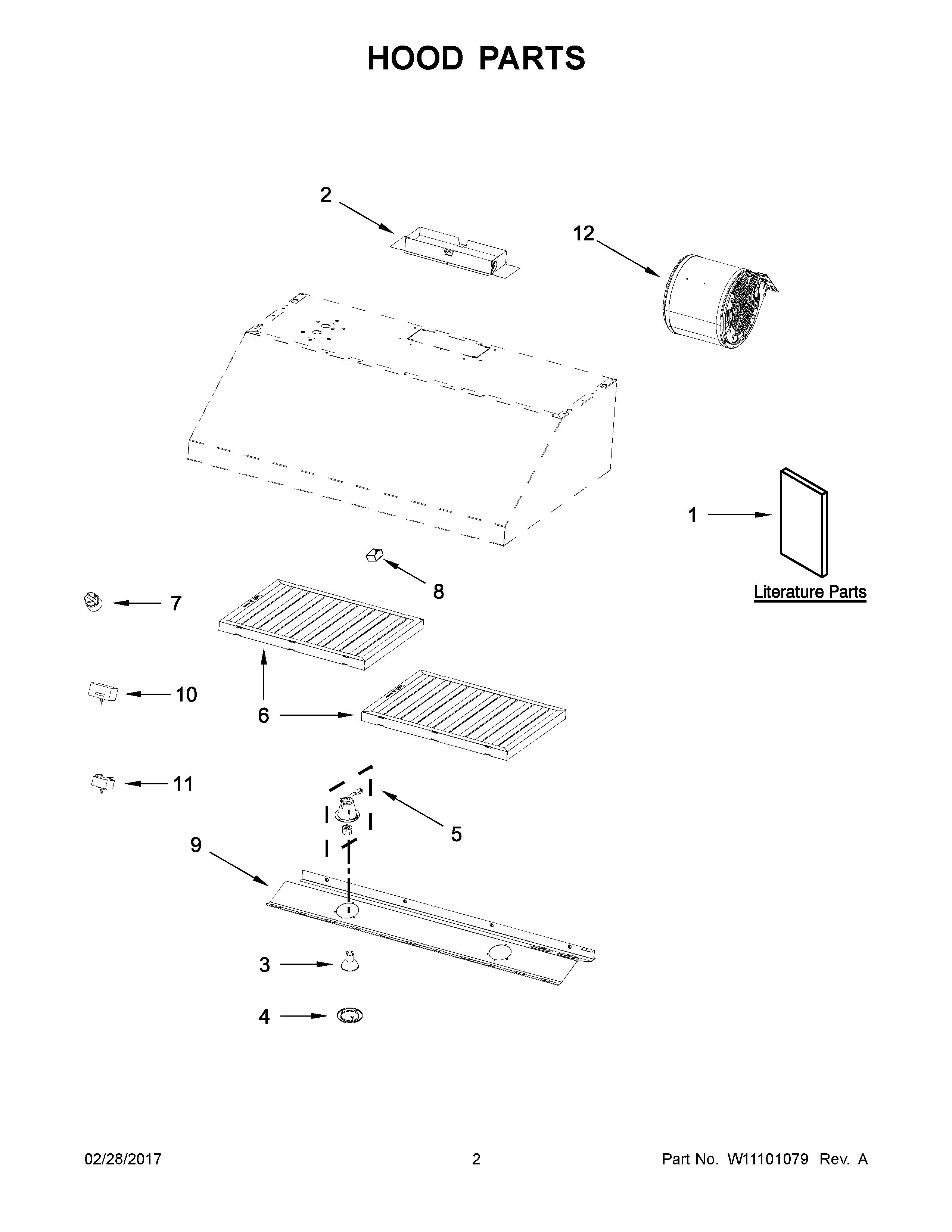

JXU9136WP1 02 – HOOD PARTS

Products

PositionProduct
NIACCESSORIES, KIT, BACKSPLASH 30" WITH SHELVES
NIACCESSORIES, KIT, BACKSPLASH 30" WITHOUT SHELVES
NIACCESSORIES, COVER, CHIMNEY 30" MODEL ONLY
NIACCESSORIES, COVER, CHIMNEY 36" MODEL ONLY
NIADJUSTABLE, BACKSPLASH
NIACCESSORIES, KIT, BACKSPLASH 36" WITH SHELVES
1HARDWARE, INSTALLATION
2DAMPER, HOOD
3BULB, LIGHT
4BEZEL, LAMP
5SOCKET, LIGHT
6AGREASE FILTER (36" MODEL ONLY)
6GREASE FILTER (30" MODEL ONLY)
7KNOB
8CAPACITOR
9ACONTROL PANEL (36" MODEL ONLY)
9CONTROL PANEL (30" MODEL ONLY)
10SWITCH, LIGHT
11SWITCH, FAN
12ASSEMBLY, FAN
