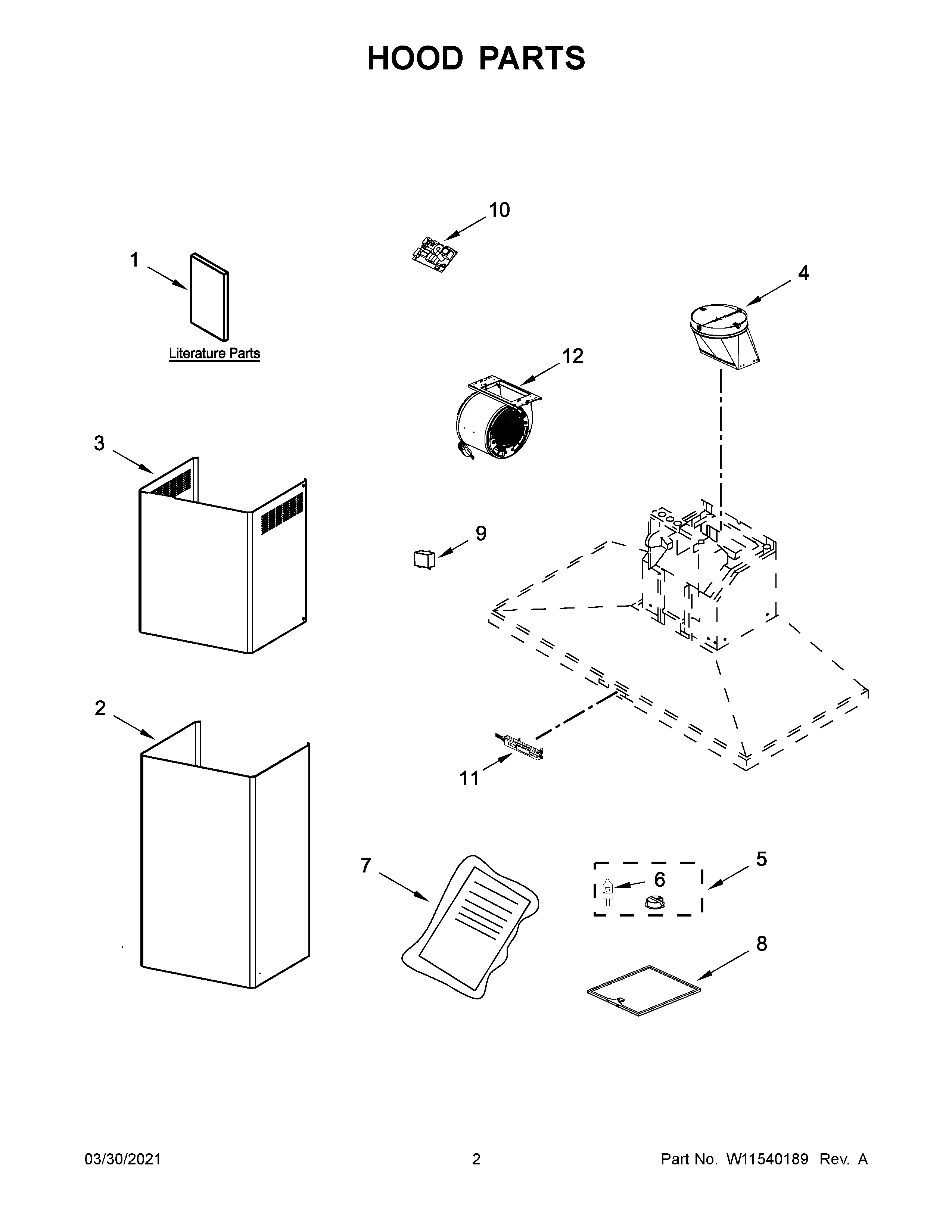

JXW8036WS2 02 – HOOD PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11321566 Whirlpool Chimney Assembly
3CHIMNEY, UPPER
4ASSEMBLY, DAMPER
5BULB-LIGHT
6BULB-LIGHT
7W11088595 Whirlpool Hardware
8W10291612 Whirlpool Filter
9W11715950 Whirlpool Capacitor Assembly
10WPW10291604-includeCORE Whirlpool WPW10291604 Washer Electronic Control Board + Core
11WPW10295846 Whirlpool Electronic Control Board
12W11106377 Whirlpool Blower Fan
