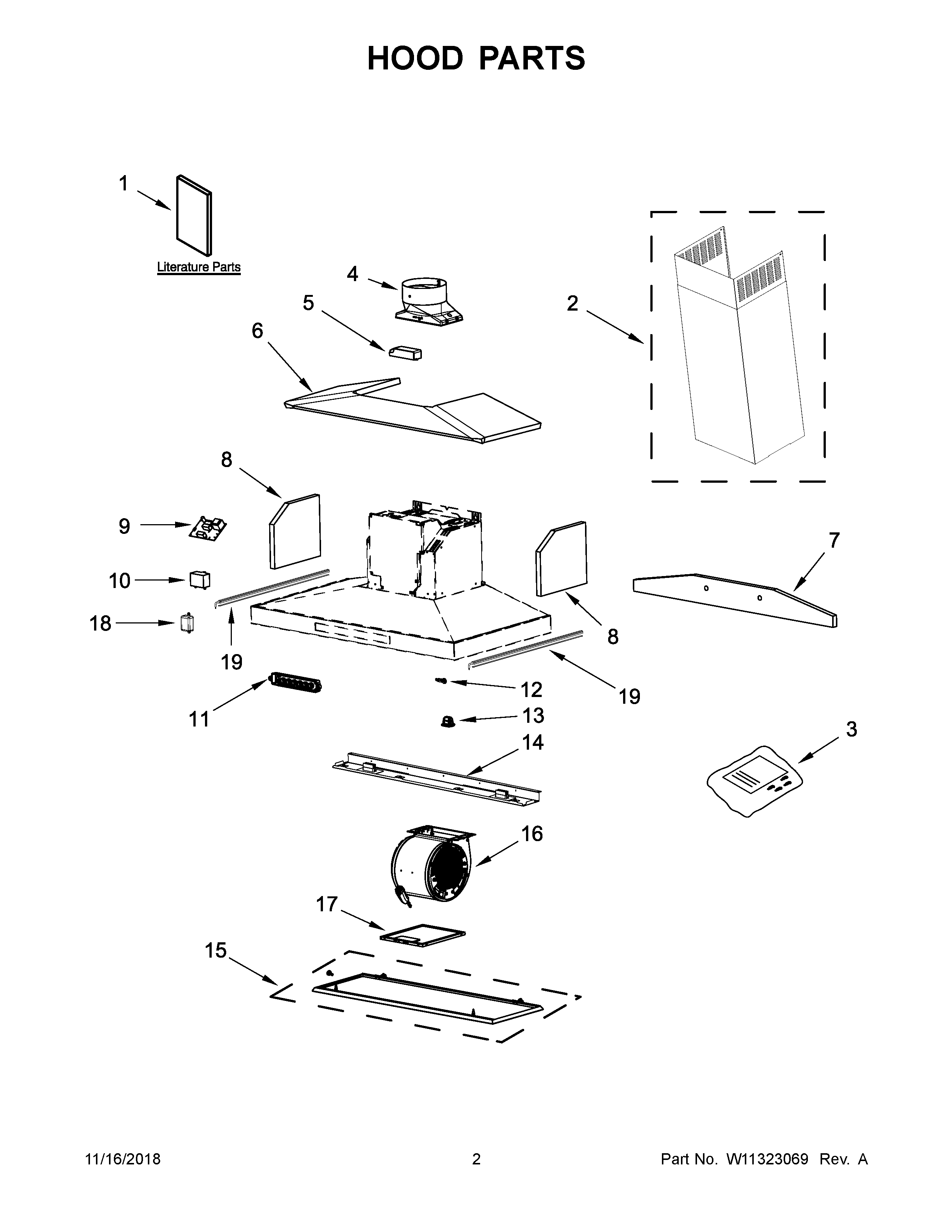

JXW8530DS1 02 – HOOD PARTSadmin2025-04-26T09:03:03+00:00JXW8530DS1 02 – HOOD PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORIES, KIT, CHARCOAL FILTER (FOR NON-VENTED INSTALLATIONS ONLY) |
| NI | ACCESSORIES, KIT, IN-LINE SMART |
| NI | ACCESSORIES, KIT, POWER CORD |
| NI | ACCESSORIES, KIT, RECIRCULATION (FOR NON-VENTED INSTALLATIONS ONLY) |
| NI | MAY W10446915 |
| NI | ACCESSORIES, CHIMNEY EXTENSION KIT |
| 1 | USE AND CARE GUIDE |
| 2 | CHIMNEY, UPPER AND LOWER |
| 3 | HARDWARE, INSTALLATION |
| 4 | DAMPER, HOOD |
| 5 | DRIVER, LED |
| 6A | INSULATION (36" MODEL ONLY) |
| 6 | INSULATION (30" MODEL ONLY) |
| 7 | INSULATION, BACK (30" MODEL ONLY) |
| 7A | INSULATION, BACK (36" MODEL ONLY) |
| 8 | INSULATION, SIDE |
| 9 | BOARD, CONTROL |
| 10 | CAPACITOR (25 MF) |
| 11 | CONTROL, ELECTRONIC |
| 12 | SENSOR, SPEED |
| 13 | CLIP, PANEL |
| 14A | PANEL, LED LIGHTS (36" MODEL ONLY) |
| 14 | PANEL, LED LIGHTS (30" MODEL ONLY) |
| 15A | PANEL, PERIMETRIC (36" MODEL ONLY) |
| 15 | PANEL, PERIMETRIC (30" MODEL ONLY) |
| 16 | BLOWER, FAN |
| 17 | FILTER, GREASE |
| 18 | MAY W11088596 |
| 19 | LED STRIP, AMBIENT |
