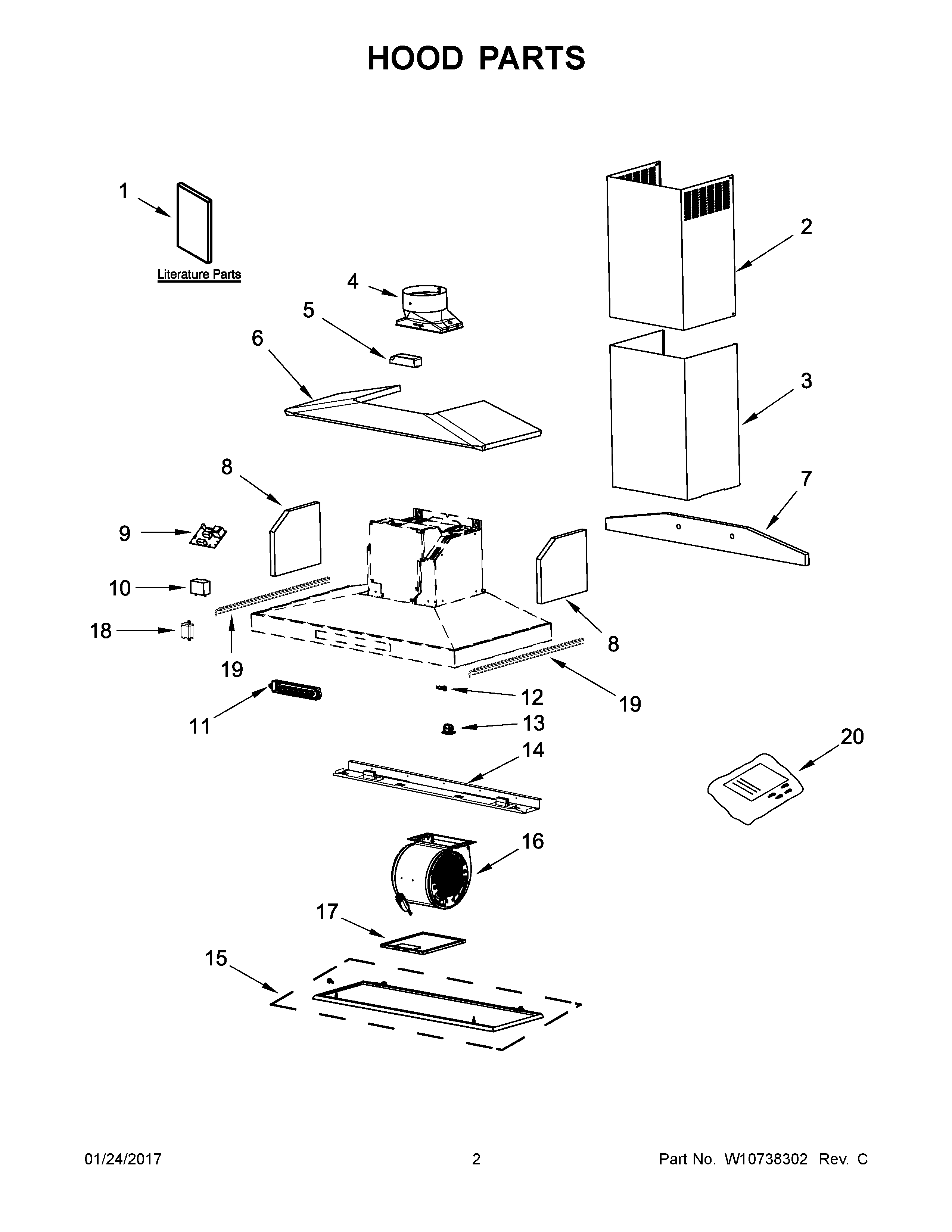

JXW8536DS0 02 – HOOD PARTS

Products

Position	Product
NI	ACCESSORIES, KIT, IN-LINE SMART
NI	ACCESSORIES, KIT, CHARCOAL FILTER (FOR NON-VENTED INSTALLATIONS ONLY)
NI	ACCESSORIES, KIT, POWER CORD
NI	ACCESSORIES, KIT, RECIRCULATION (FOR NON-VENTED INSTALLATIONS ONLY)
NI	MAY W10446915
NI	ACCESSORIES, CHIMNEY EXTENSION KIT
1	USE AND CARE GUIDE
2	MAY W10291601
3	MAY W10291599
4	DAMPER, HOOD
5	DRIVER, LED
6A	INSULATION (36" MODEL ONLY)
6	INSULATION (30" MODEL ONLY)
7A	INSULATION, BACK (36" MODEL ONLY)
7	INSULATION, BACK (30" MODEL ONLY)
8	INSULATION, SIDE
9	BOARD, CONTROL
10	CAPACITOR
11	CONTROL, ELECTRONIC
12	SENSOR, SPEED
13	CLIP, PANEL
14A	PANEL, LED LIGHTS (36" MODEL ONLY)
14	PANEL, LED LIGHTS (30" MODEL ONLY)
15	PANEL, PERIMETRIC (30" MODEL ONLY)
15A	PANEL, PERIMETRIC (36" MODEL ONLY)
16	BLOWER, FAN
17	FILTER, GREASE
18	MAY W11088596
19	LED STRIP, AMBIENT
20	HARDWARE, INSTALLATION
