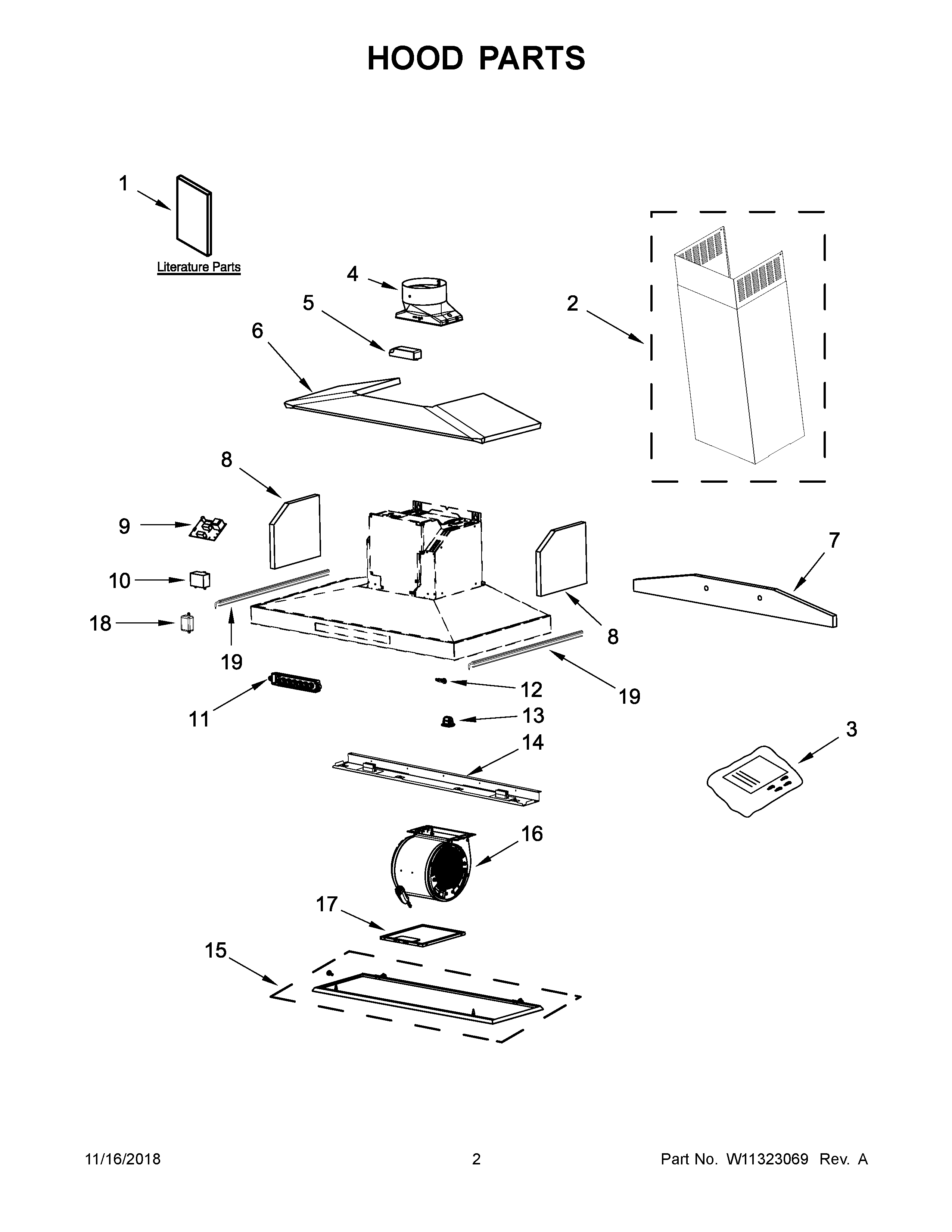

JXW8536DS1 02 – HOOD PARTS

Products

Position	Product
NI	ACCESSORIES, KIT, CHARCOAL FILTER (FOR NON-VENTED INSTALLATIONS ONLY)
NI	ACCESSORIES, KIT, IN-LINE SMART
NI	ACCESSORIES, KIT, POWER CORD
NI	ACCESSORIES, KIT, RECIRCULATION (FOR NON-VENTED INSTALLATIONS ONLY)
NI	MAY W10446915
NI	ACCESSORIES, CHIMNEY EXTENSION KIT
1	USE AND CARE GUIDE
2	CHIMNEY, UPPER AND LOWER
3	HARDWARE, INSTALLATION
4	DAMPER, HOOD
5	DRIVER, LED
6A	INSULATION (36" MODEL ONLY)
6	INSULATION (30" MODEL ONLY)
7	INSULATION, BACK (30" MODEL ONLY)
7A	INSULATION, BACK (36" MODEL ONLY)
8	INSULATION, SIDE
9	BOARD, CONTROL
10	CAPACITOR (25 MF)
11	CONTROL, ELECTRONIC
12	SENSOR, SPEED
13	CLIP, PANEL
14A	PANEL, LED LIGHTS (36" MODEL ONLY)
14	PANEL, LED LIGHTS (30" MODEL ONLY)
15A	PANEL, PERIMETRIC (36" MODEL ONLY)
15	PANEL, PERIMETRIC (30" MODEL ONLY)
16	BLOWER, FAN
17	FILTER, GREASE
18	MAY W11088596
19	LED STRIP, AMBIENT
