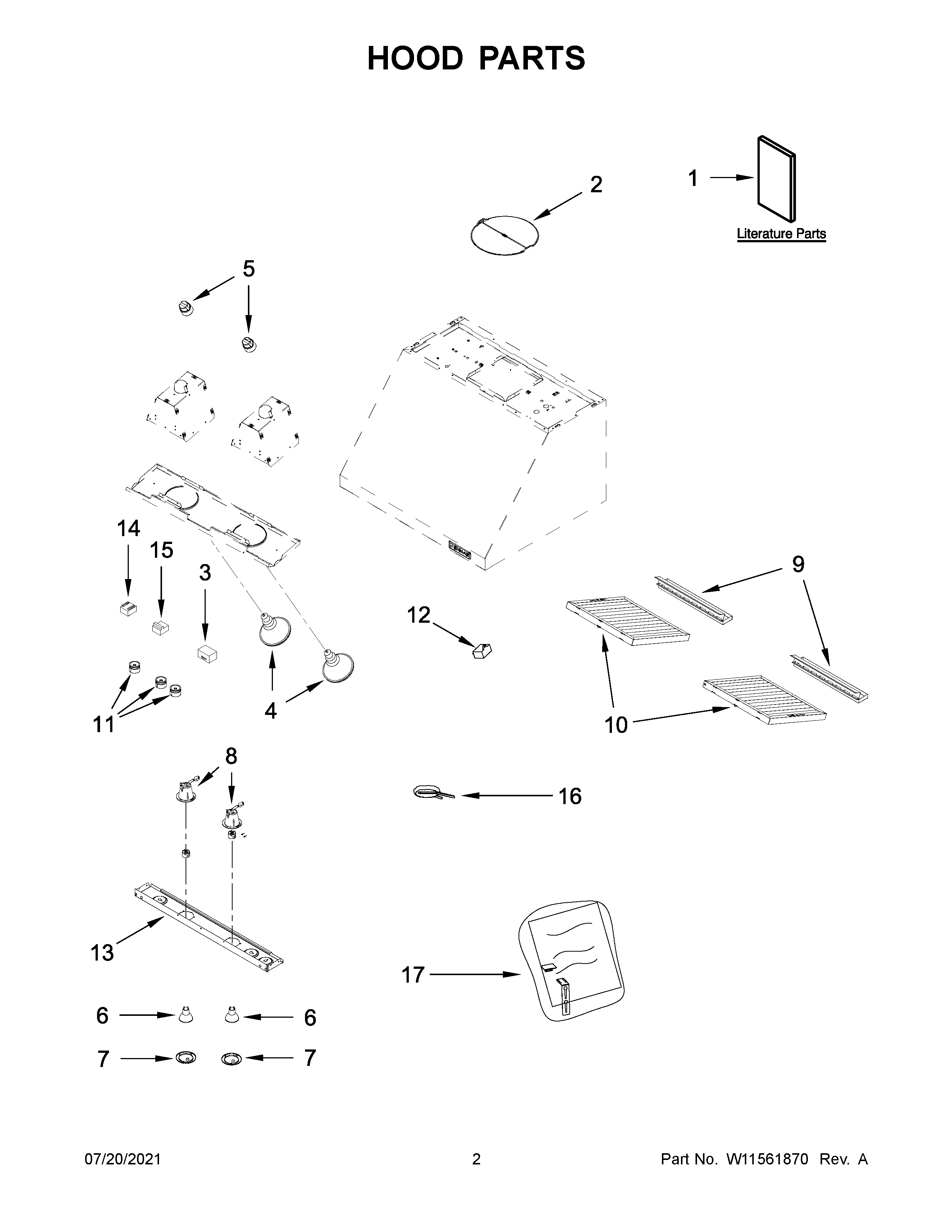

JXW9036HP3 02 – HOOD PARTS

Products

Position	Product
1	OWNERS MANUAL
2	W11551389 Whirlpool Hood Damper
3	W10293967 Whirlpool Rotary Switch
4	WPW10294005 Whirlpool Light Bulb
5	W10294008 Whirlpool Socket
6	W11388881 Whirlpool Light Assembly
7	W10351924 Whirlpool Bezel
8	W10295808 Whirlpool Socket
9	W10294003 Whirlpool Grease Channel
9A	W10294011 Whirlpool Grease Channel
9B	W10294022 Whirlpool Grease Channel
10	W10351890 Whirlpool Filter
10B	WPW10351929 Whirlpool Filter
10A	W10351892 Whirlpool Filter Assembly
11	WPW10294009 Whirlpool Control Knob
12	W11715950 Whirlpool Capacitor Assembly
13	CONTROL PANEL (30" MODEL ONLY)
13A	CONTROL PANEL (36" MODEL ONLY)
13B	W10293971 Whirlpool LT Support
14	W10293976 Whirlpool Rotary Switch
15	W10293968 Whirlpool Rotary Switch
16	W10427011 Whirlpool Filter
17	W10293977 Whirlpool Hardware
