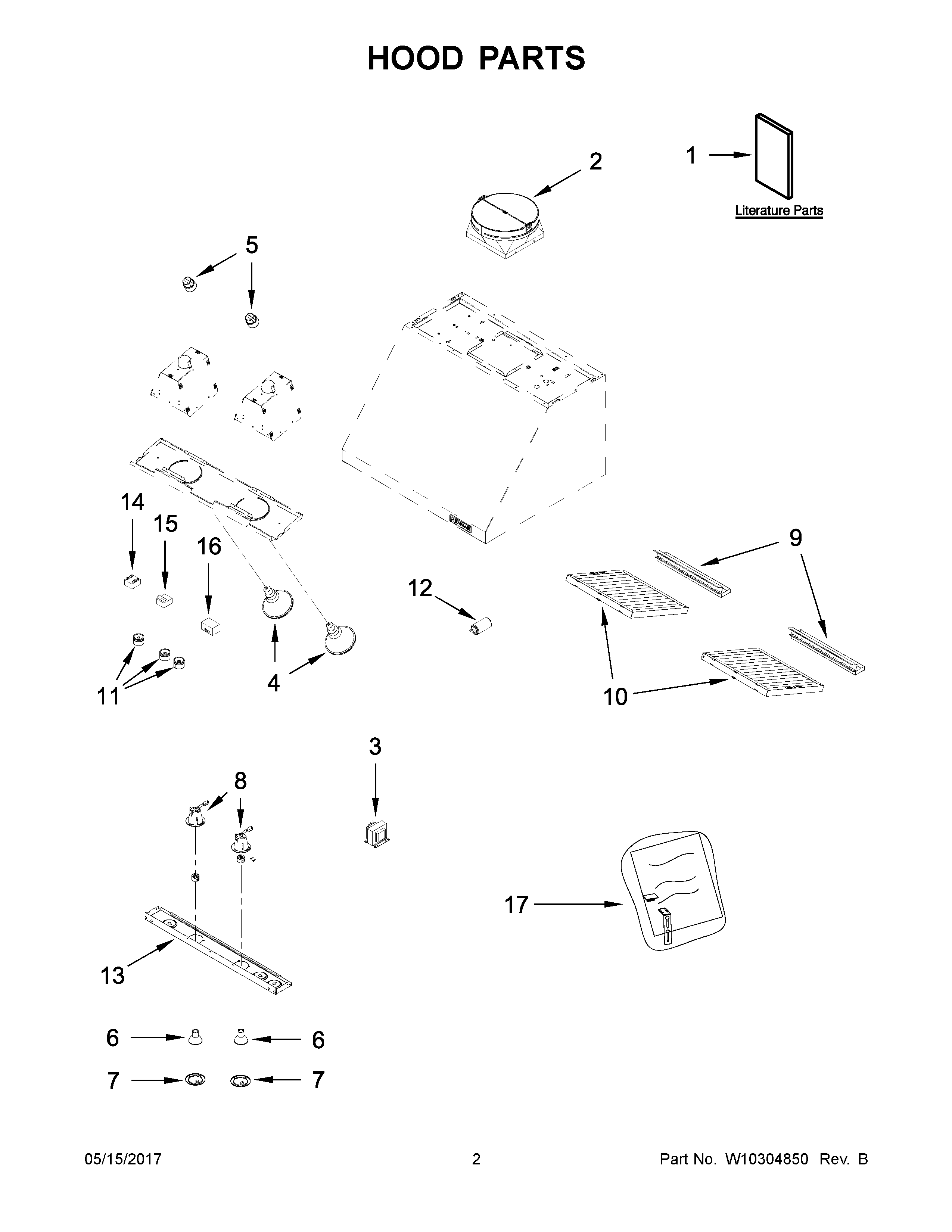

JXW9036WP0 02 – HOOD PARTS

Products

Position	Product
NI	ACCESSORIES, KIT, BACKSPLASH 30" WITH SHELVES
NI	ACCESSORIES, COVER, CHIMNEY 36" MODEL ONLY
NI	ACCESSORIES, KIT, BACKSPLASH 48" WITH SHELVES
NI	ACCESSORIES, KIT, BACKSPLASH 36" WITH SHELVES
NI	ACCESSORIES, FULL-WIDTH DUCT COVER (48" MODEL ONLY)
NI	ACCESSORIES, COVER, CHIMNEY 30" MODEL ONLY
1	MAY W10274316
2	ASSEMBLY, DAMPER
3	KIT, TRANSFORMER
4	LAMP, IR
5	SOCKET, IR LAMP
6	BULB, LIGHT
7	BEZEL, LIGHT
8	SOCKET, LIGHT
9	GREASE TRAY (30" MODEL ONLY)
9A	GREASE TRAY (36" MODEL ONLY)
9B	GREASE TRAY (48" MODEL ONLY)
10	GREASE FILTER (30" MODEL ONLY)
10A	GREASE FILTER (36" MODEL ONLY)
10B	GREASE FILTER (48" MODEL ONLY)
11	KNOB
12	CAPACITOR
13	CONTROL PANEL (30" MODEL ONLY)
13A	CONTROL PANEL (36" MODEL ONLY)
13B	CONTROL PANEL (48" MODEL ONLY)
14	SWITCH, IR LAMP
15	SWITCH, LIGHT
16	SWITCH, FAN
17	HARDWARE, INSTALLATION
