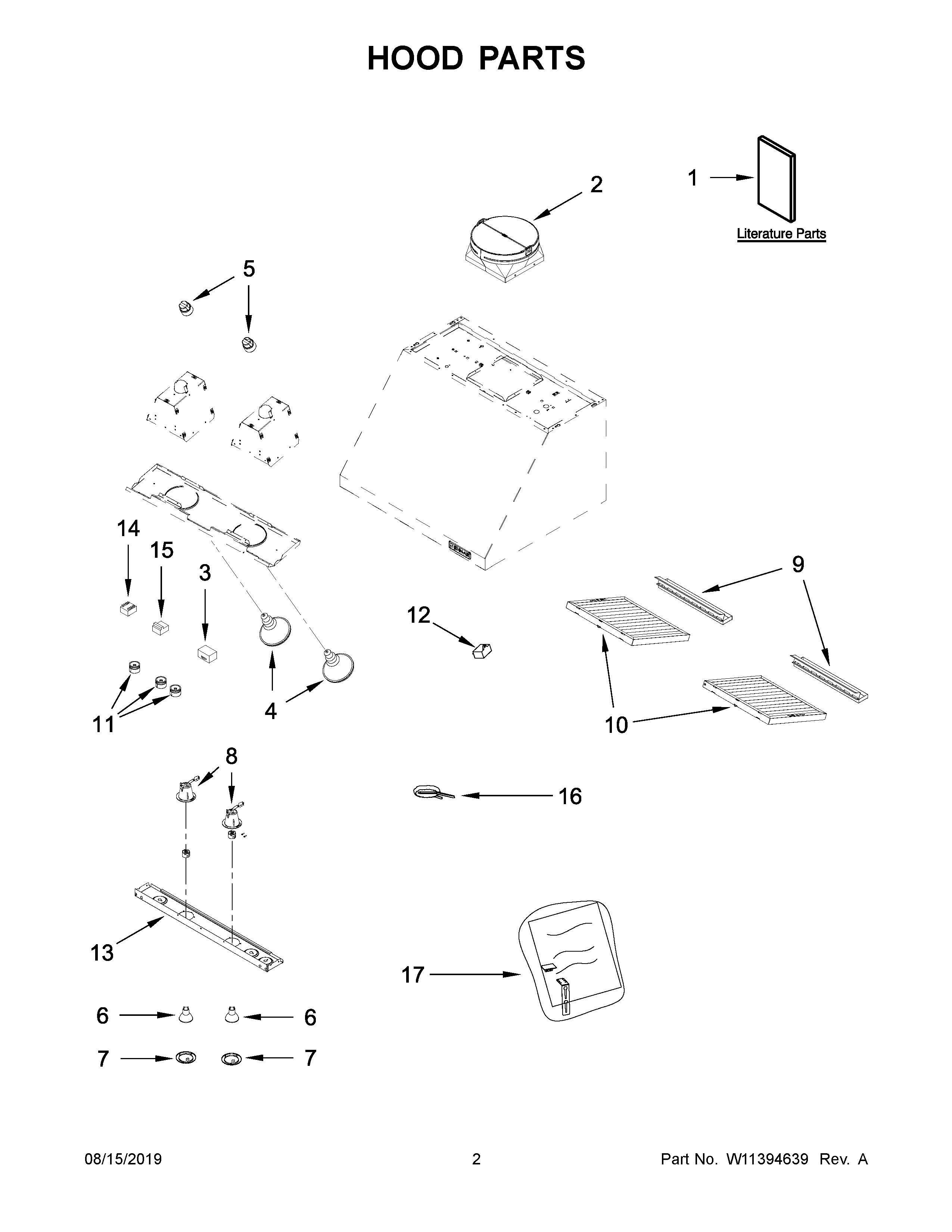

JXW9048HP1 02 – HOOD PARTSadmin2025-04-26T09:03:45+00:00JXW9048HP1 02 – HOOD PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORIES, KIT, BACKSPLASH 48" WITH SHELVES |
| NI | ACCESSORIES, KIT, BACKSPLASH 36" WITH SHELVES |
| NI | ACCESSORIES, KIT, BACKSPLASH 30" WITH SHELVES |
| 1 | MAY W11374531 |
| 2 | ASSEMBLY, DAMPER |
| 3 | SWITCH, FAN |
| 4 | LAMP, IR |
| 5 | SOCKET, IR LAMP |
| 6 | MAY W11388445 |
| 7 | BEZEL, LAMP |
| 8 | SOCKET, LIGHT |
| 9B | GREASE TRAY (48" MODEL ONLY) |
| 9A | GREASE TRAY (36" MODEL ONLY) |
| 9 | GREASE TRAY (30" MODEL ONLY) |
| 10B | GREASE FILTER (48" MODEL ONLY) |
| 10 | GREASE FILTER (30" MODEL ONLY) |
| 10A | GREASE FILTER (36" MODEL ONLY) |
| 11 | KNOB |
| 12 | CAPACITOR (25 MF) |
| 13B | CONTROL PANEL (48" MODEL ONLY) |
| 13A | CONTROL PANEL (36" MODEL ONLY) |
| 13 | CONTROL PANEL (30" MODEL ONLY) |
| 14 | SWITCH, IR LAMP |
| 15 | SWITCH, LIGHT |
| 16 | FILTER, NOISE |
| 17 | HARDWARE, INSTALLATION |
