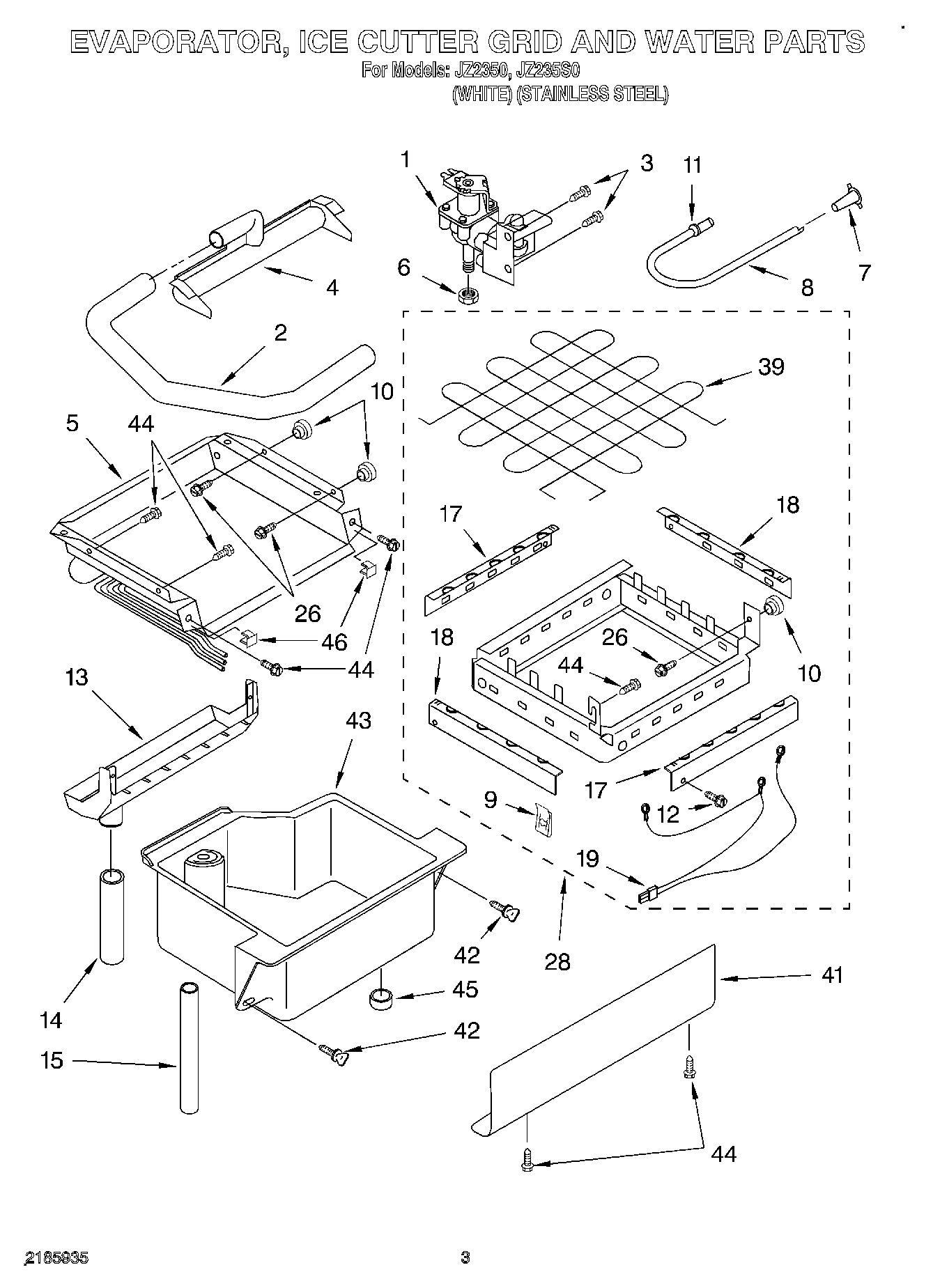

JZ2350 02 – EVAPORATOR, ICE CUTTER GRID AND WATER

JZ2350 02 – EVAPORATOR, ICE CUTTER GRID AND WATER

Written by

in

JZ2350 02 – EVAPORATOR, ICE CUTTER GRID AND WATER

Products

PositionProduct
1W10801996 Whirlpool Water Inlet Valve
3W11693756 Whirlpool Screw Assembly
4W10863947 Whirlpool Refrigerator Tube
5WPW10218037 Whirlpool Refrigerator Evaporator
6WP627018 Whirlpool Refrigerator Nut
74387491 Whirlpool Refrigerator Insert
8W10823511 Whirlpool Refrigerator Water Tube
9488660 Whirlpool Refrigerator Nut
10836667 Whirlpool Refrigerator Spacer
11WPL 2208329
12WP489443 Whirlpool Refrigerator Screw
13WP2185625 Whirlpool Refrigerator Water Pan
14WP2185626 Whirlpool Refrigerator Hose
15WP2313890 Whirlpool Overflow Hose
17Bracket, Front and Rear
188201791 Whirlpool Air Conditioner Spacer
192185681 Whirlpool Refrigerator Harness
26WP3400886 Whirlpool Refrigerator Screw
28WP2313637 Whirlpool Cutting Grid Assembly
39GRID
412185570 Whirlpool Refrigerator Panel
42Screw, Thumb 10-32 x 3/4 (2)
43Reservoir, Water
44WP3400884 Whirlpool Refrigerator Screw
45WP2185696 Whirlpool Cap
46WP3400909 Whirlpool Refrigerator Nut
