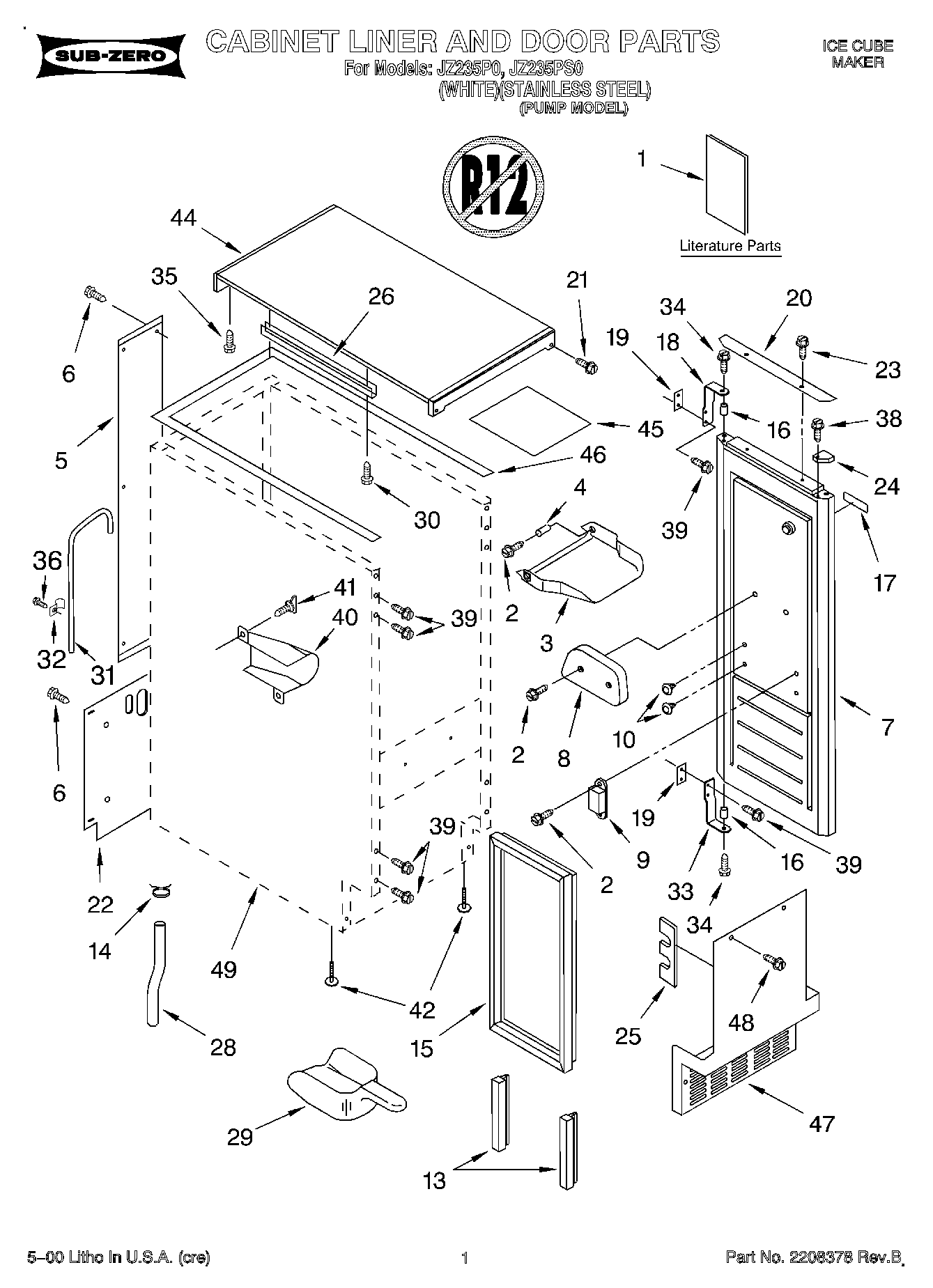

JZ235P0 01 – CABINET LINER AND DOOR, LIT/OPTIONAL

JZ235P0 01 – CABINET LINER AND DOOR, LIT/OPTIONAL

Written by

in

JZ235P0 01 – CABINET LINER AND DOOR, LIT/OPTIONAL

Products

Position	Product
1	WPL LIT2185734
1	WPL LIT2185887
2	WP3400886 Whirlpool Refrigerator Screw
3	BIN, DOOR
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	WPL 2932800BS
7	WPL 2932800W
8	2185695 Whirlpool Refrigerator Door Cam
9	W11223751 Whirlpool Refrigerator Catch Assembly
10	WP2189000 Whirlpool Refrigerator Handle Plug
13	2217367 Whirlpool Refrigerator Door Gasket
14	WP489503 Whirlpool Refrigerator Clamp
15	WP2217294 Whirlpool Refrigerator Door Gasket
16	WPL 2185894
16	WPL 2185932
17	WPL 2185970
18	2185710 Whirlpool Refrigerator Hinge
19	2185709 Whirlpool Refrigerator Shim
20	WPL 2185865B
20	Handle, Door (White)
21	8281188 Whirlpool Refrigerator M Screw
22	WPW10136199 Whirlpool Refrigerator Unit Cover
23	WPL 8281138
24	2185656B Whirlpool Floor Endcap
24	Filler, Endcap (Left Side)
24	Filler, Endcap (Left Side)
24	Filler, Endcap (Right Side)
25	W10532250 Whirlpool Refrigerator Foam Pad
26	2185691 Whirlpool Refrigerator Channel
28	Tube, Drain
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	WP3400884 Whirlpool Refrigerator Screw
31	Tube, Air Vent
32	WP2208367 Whirlpool Refrigerator Half Clamp
33	2185711 Whirlpool Refrigerator Hinge
34	2185712 Whirlpool Refrigerator Hinge Pin
35	WP250830 Whirlpool Refrigerator Screw
36	WP489464 Whirlpool Refrigerator Screw
38	NAMEPLATE
39	WP999367 Whirlpool Refrigerator Screw
40	2185927 Whirlpool Refrigerator Holder
41	Screw, Thumb 10-32 x 3/4 (2)
42	8193716 Whirlpool Leveling Leg
44	Top
44	Top
45	2185690 Whirlpool Shield Assembly
46	W11624957 Whirlpool Refrigerator Top Gasket
47	WP2185571B Whirlpool Refrigerator Grille
47	WP2185571W Whirlpool Refrigerator Grille
48	WP489474 Whirlpool Refrigerator Screw
49	212643 Whirlpool Refrigerator Permagum Sealer
49	876370 Whirlpool Refrigerator Insulation
49	WP503695 Whirlpool Refrigerator Sealer
49	WP505587 Whirlpool Refrigerator Sealer
49	978026 Whirlpool Refrigerator Primary Valve
49	978027 Whirlpool Refrigerator Primary Valve
49	978030 Whirlpool Refrigerator Valve
49	WP978025 Whirlpool Refrigerator Valve
49	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
49	VALVE, ACCESS (5/8“)
49	W11179302 Whirlpool Ice Machine Cleaner
49	VALVE, ACCESS (1/2“)
