JZ235P0 04 – CONTROL PANEL
Written by
in

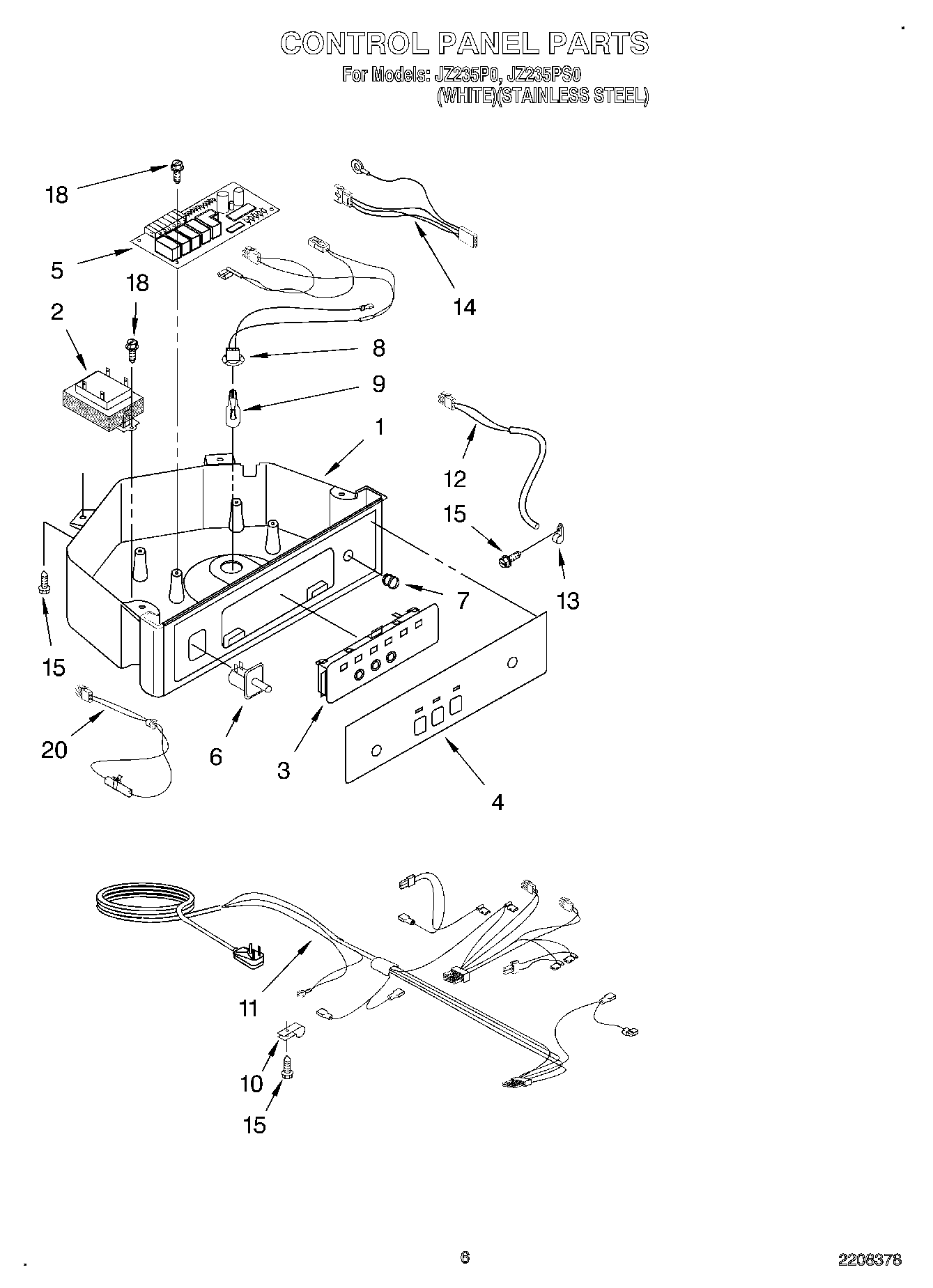

JZ235P0 04 – CONTROL PANEL
Products
Position
Product
1
Box, Control
2
Transformer
3
Assembly, Switch (ALSO ORDER 4)
4
WPL 2185916W
5
WPL 2185947
6
WP2149705 Whirlpool Refrigerator Door Switch
7
Lens, LED
8
Wiring Harness Grid/ Light
9
Bulb, Light (Pkg. Of 2)
10
W11456069 Whirlpool Refrigerator Clamp
11
Wiring Harness, Complete Unit (Includes Power Cord)
12
WPW10503764 Whirlpool Refrigerator Thermistor
13
2185825 Whirlpool Refrigerator Clamp
14
Wiring Harness, Main to Pump,
15
WP3400884 Whirlpool Refrigerator Screw
18
WP489443 Whirlpool Refrigerator Screw
20
Thermister, Ice Control
←
