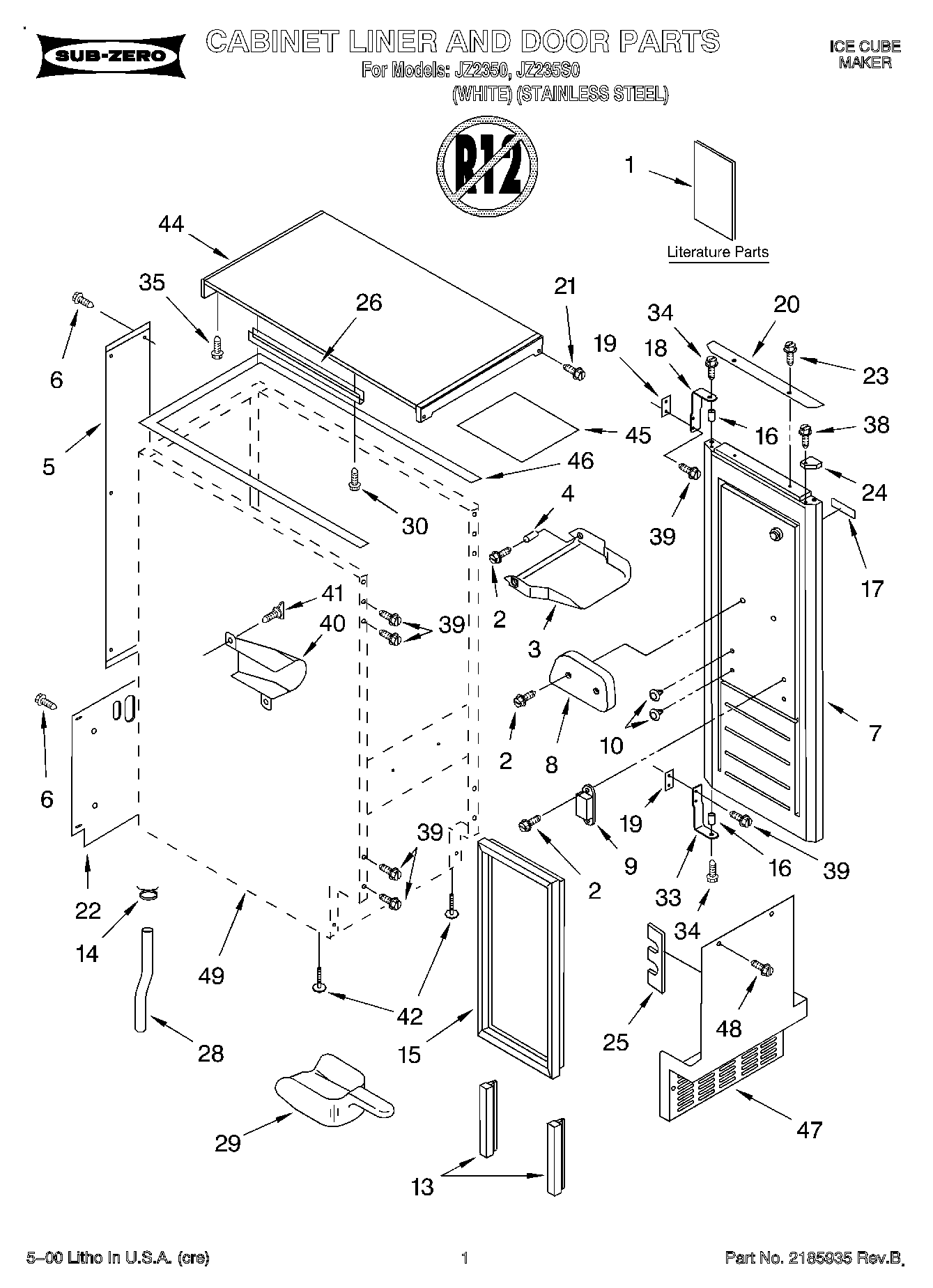

JZ235S0 01 – CABINET LINER AND DOOR, LIT/OPTIONAL

JZ235S0 01 – CABINET LINER AND DOOR, LIT/OPTIONAL

Written by

in

JZ235S0 01 – CABINET LINER AND DOOR, LIT/OPTIONAL

Products

PositionProduct
1WPL LIT2185734
1WPL LIT2185887
2WP3400886 Whirlpool Refrigerator Screw
3BIN, DOOR
42185678 Whirlpool Refrigerator Spacer
52217394 Whirlpool Refrigerator Wire Cover
6WP489442 Whirlpool Refrigerator Screw
7WPL 2932800S
7WPL 2932800W
82185695 Whirlpool Refrigerator Door Cam
9W11223751 Whirlpool Refrigerator Catch Assembly
10WP941839 Whirlpool Refrigerator Button Plug
132217367 Whirlpool Refrigerator Door Gasket
14WP489503 Whirlpool Refrigerator Clamp
15WP2217294 Whirlpool Refrigerator Door Gasket
16WPL 2185932
16WPL 2185894
17WPL 2185970
17WPL 2185970B
182185710 Whirlpool Refrigerator Hinge
192185709 Whirlpool Refrigerator Shim
20WPL 2185865B
20Handle, Door (White)
218281188 Whirlpool Refrigerator M Screw
22WPW10136199 Whirlpool Refrigerator Unit Cover
23WPL 8281138
24Filler, Endcap (Left Side)
24Filler, Endcap (Right Side)
24Filler, Endcap (Left Side)
242185656B Whirlpool Floor Endcap
25W10532250 Whirlpool Refrigerator Foam Pad
262185691 Whirlpool Refrigerator Channel
28WP2185989 Whirlpool Refrigerator Tube
29W11420408 Whirlpool Refrigerator Ice Scoop
30WP3400884 Whirlpool Refrigerator Screw
332185711 Whirlpool Refrigerator Hinge
342185712 Whirlpool Refrigerator Hinge Pin
35WP250830 Whirlpool Refrigerator Screw
38NAMEPLATE
39WP999367 Whirlpool Refrigerator Screw
402185927 Whirlpool Refrigerator Holder
41Screw, Thumb 10-32 x 3/4 (2)
428193716 Whirlpool Leveling Leg
44Top
44Top
452185690 Whirlpool Shield Assembly
46W11624957 Whirlpool Refrigerator Top Gasket
47WP2185571W Whirlpool Refrigerator Grille
47WP2185571B Whirlpool Refrigerator Grille
48WP489474 Whirlpool Refrigerator Screw
49978030 Whirlpool Refrigerator Valve
49W11179302 Whirlpool Ice Machine Cleaner
49VALVE, ACCESS (5/8“)
49212643 Whirlpool Refrigerator Permagum Sealer
49876370 Whirlpool Refrigerator Insulation
49WP503695 Whirlpool Refrigerator Sealer
49WP505587 Whirlpool Refrigerator Sealer
49VALVE, ACCESS (1/2“)
49978026 Whirlpool Refrigerator Primary Valve
49WP978025 Whirlpool Refrigerator Valve
49978027 Whirlpool Refrigerator Primary Valve
49WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
