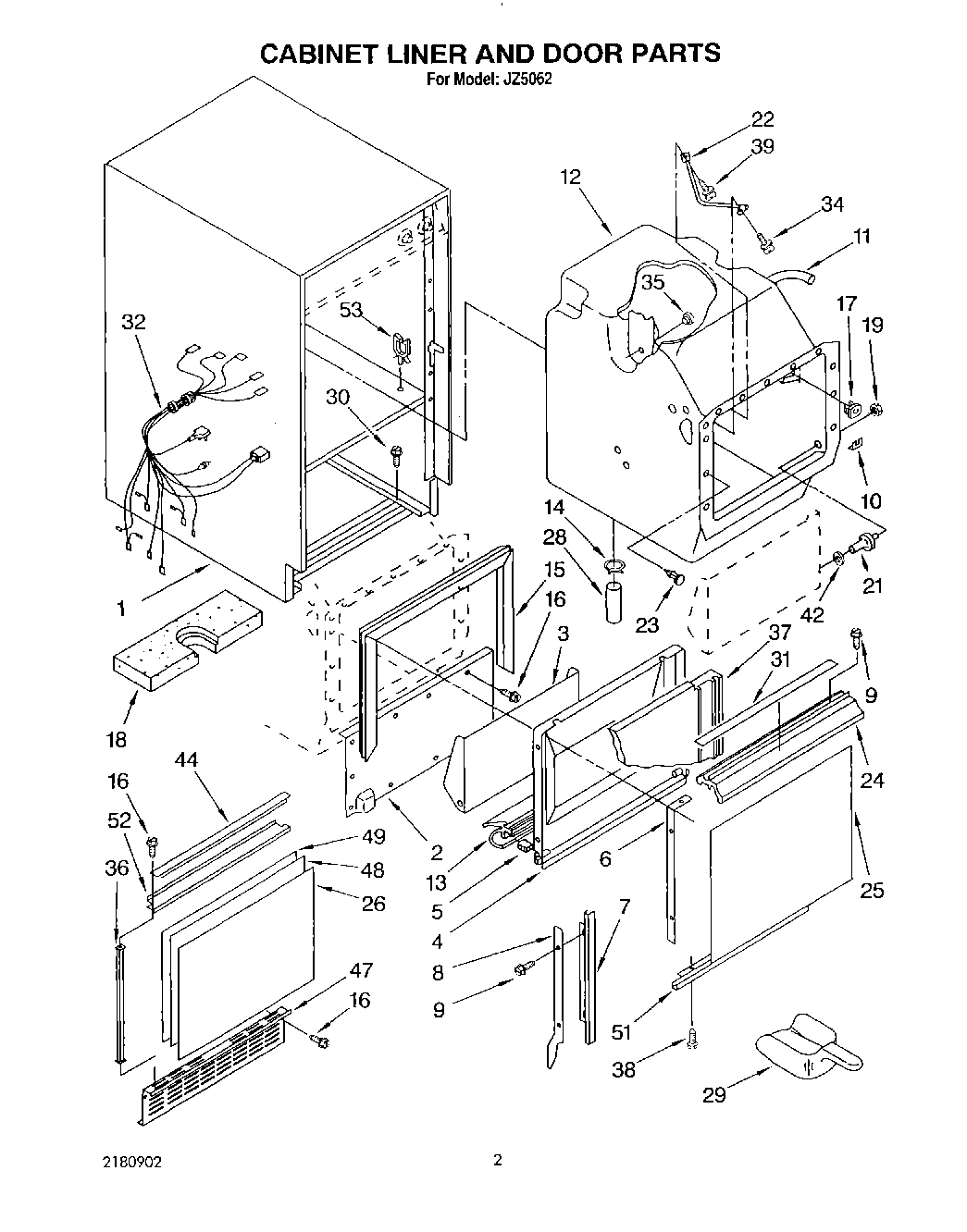

JZ5062 02 – CABINET LINER AND DOOR, LITERATURE

Products

Position	Product
	WPL LIT2180830
	WPL LIT2180635
	WPL LIT2180902
	WPL LIT758887
1	WPL 2180600
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (L.S.)
7	Trim, Door (R.S.)
8	Rail, Door (Left Side)
8	Rail, Door (Right Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	WPL 758902
25	WPL 758888
26	WPL 758889
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	WPL 758901
32	WPL 2174781
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Sides (2)
37	WPL 758754
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Top & Bottom
47	Grille, Panel
48	Filler, Grille Panel
49	Panel, Inner Grille
51	Trim, Door (Lower)
52	WPL 2175604
53	978030 Whirlpool Refrigerator Valve
53	VALVE, ACCESS (5/8“)
53	978027 Whirlpool Refrigerator Primary Valve
53	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53	VALVE, ACCESS (1/2“)
53	876370 Whirlpool Refrigerator Insulation
53	Retainer, Wire (2)
53	WP503695 Whirlpool Refrigerator Sealer
53	978026 Whirlpool Refrigerator Primary Valve
53	WP978025 Whirlpool Refrigerator Valve
53	WP505587 Whirlpool Refrigerator Sealer
53	212643 Whirlpool Refrigerator Permagum Sealer
