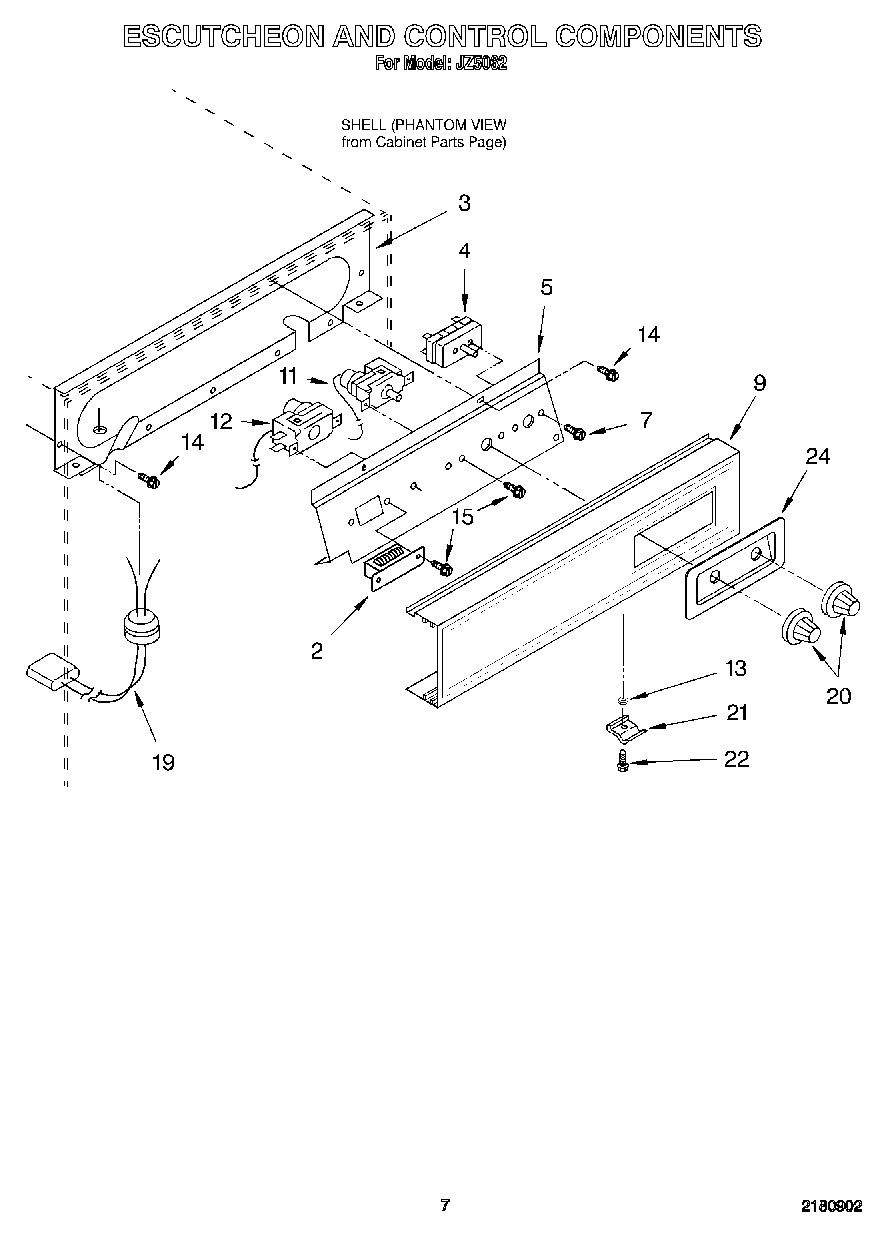

JZ5062 05 – ESCUTCHEON AND CONTROL COMPONENTS

Products

Position	Product
2	WPL 2165483
3	Escutcheon, Panel
4	Switch, Service
5	WPL 2172846
7	WP486579 Whirlpool Air Conditioner Screw
9	WPL 759000
11	Thermostat, Ice-Control
12	Thermostat, Ice-Bin
13	Washer, Latch
14	WP488729 Whirlpool Refrigerator Door Screw
15	Screw, 8-32 x 3/8 (2)
19	Harness, Wiring (Cutter Grid)
20	WPL 756880
21	Latch, Door
22	Screw, 8-32 x 1/2
24	WPL 593736
