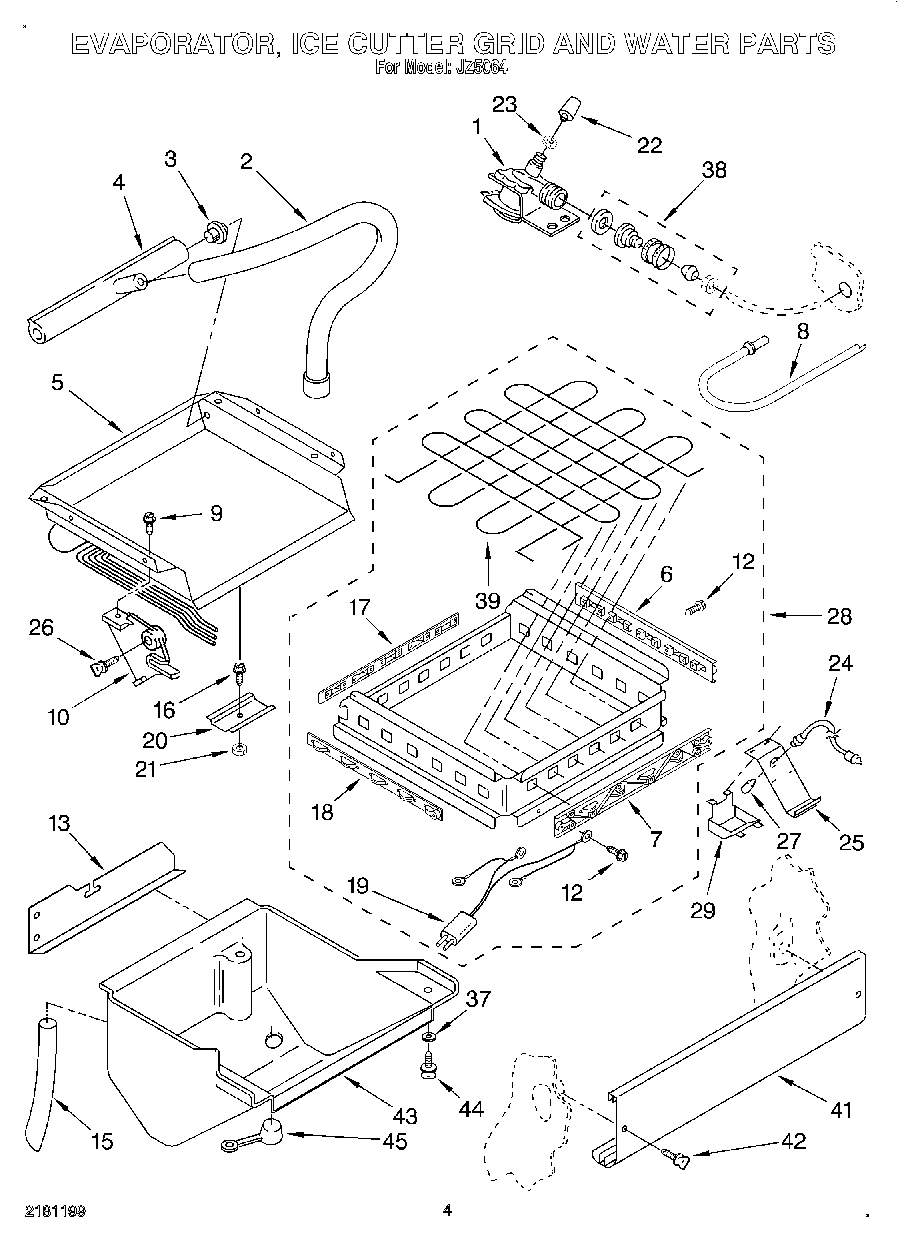

JZ5064 03 – EVAPORATOR, ICE CUTTER GRID AND WATER
Written by
in
JZ5064 03 – EVAPORATOR, ICE CUTTER GRID AND WATER
Products
Position
Product
1
Valve, Water
2
Hose, Dispenser
3
Plug,
4
WPL 1129798
5
WPL 2181076
6
WPL 2174726
7
WPL 2174724
8
WPL 759213
9
SCREW
10
Bracket, Grid (2)
12
WP489443 Whirlpool Refrigerator Screw
13
Shelf, Water Pan
15
WPL 759109
16
Screw, 10-32 x 1/2
17
WPL 2174725
18
WPL 2174727
19
WPL 2174750
20
Clamp
21
Nut, 10-32
22
4387491 Whirlpool Refrigerator Insert
23
WP627018 Whirlpool Refrigerator Nut
24
Harness, Light
25
Bracket, Light
26
Screw, Thumb 10-32 x 1“
27
Bulb, Light (Pkg. Of 2)
28
WPL 2174752
29
Shield, Light
37
Washer, Latch
38
Adapter
39
GRID
41
Panel, Grid
42
Screw, Thumb 10-32 x 3/4 (2)
43
Pan, Water
44
Screw, 10 x 1/2
45
WPL 759043
←
