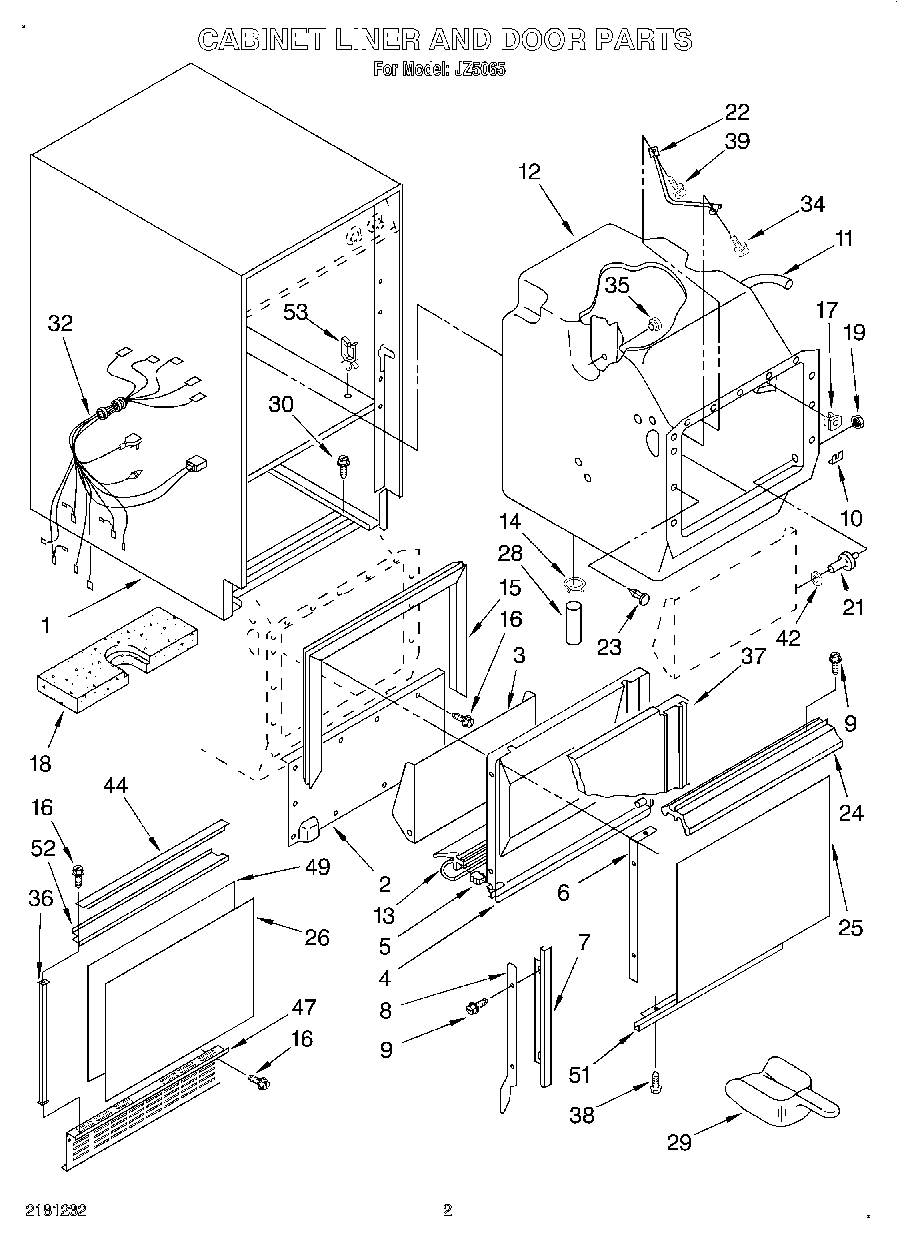

JZ5065 02 – CABINET LINER AND DOOR, LITERATURE

Products

Position	Product
	WPL LIT2181232
	WPL LIT2180830
	WPL LIT2180911
	WPL LIT758887
1	WPL 2175636
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (L.S.)
7	Trim, Door (R.S.)
8	Rail, Door (Left Side)
8	Rail, Door (Right Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	WPL 758902
25	WPL 758888
26	WPL 758889
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
32	WPL 2181157
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Sides (2)
37	WPL 758754
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Top & Bottom
47	Grille, Panel
49	Panel, Inner Grille
51	Trim, Door (Lower)
52	WPL 2175604
53	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53	VALVE, ACCESS (5/8“)
53	212643 Whirlpool Refrigerator Permagum Sealer
53	876370 Whirlpool Refrigerator Insulation
53	WP503695 Whirlpool Refrigerator Sealer
53	978026 Whirlpool Refrigerator Primary Valve
53	WP505587 Whirlpool Refrigerator Sealer
53	978027 Whirlpool Refrigerator Primary Valve
53	978030 Whirlpool Refrigerator Valve
53	WP978025 Whirlpool Refrigerator Valve
53	VALVE, ACCESS (1/2“)
53	WPL 489482
