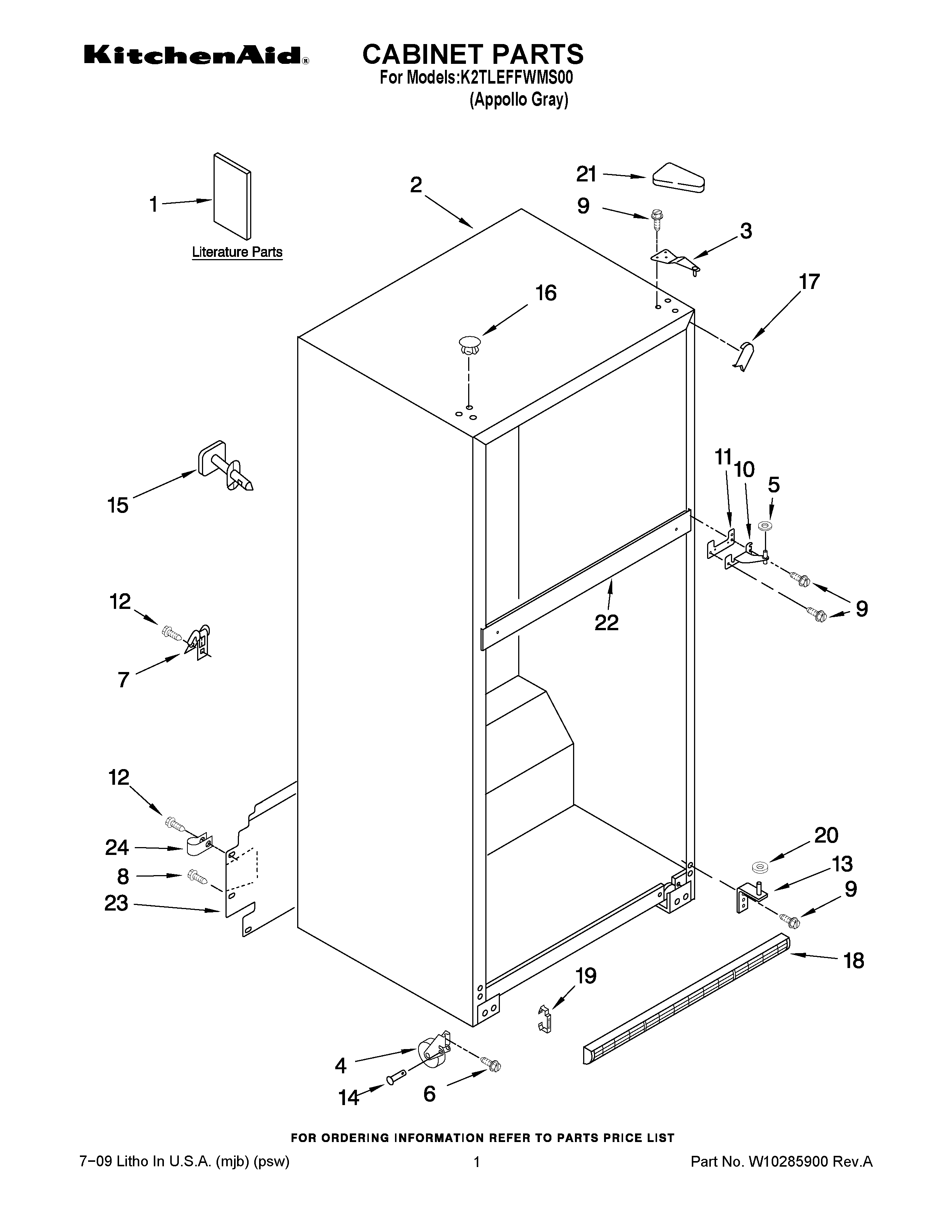

K2TLEFFWMS00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1ENERGY LABEL
1DO-IT-YOURSELF MANUAL, ICEMAKER
1USE & CARE GUIDE
3WP2261963 Whirlpool Refrigerator Door Hinge
4WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP489467 Whirlpool Hinge Shim
6WP3400504 Whirlpool Refrigerator Screw
7549193 Whirlpool Refrigerator Power Clamp
8WP489427 Whirlpool Refrigerator Screw
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183852 Whirlpool Refrigerator Shim
12WP489464 Whirlpool Refrigerator Screw
13WP2254473 Whirlpool Refrigerator Door Hinge
14W11594405 Whirlpool Axle
16WPW10520307 Whirlpool Refrigerator Replacement Plug Button
16WP2183998 Whirlpool Refrigerator Button Plug
16WP2151652 Whirlpool Refrigerator Button Plug
17W10851579 Whirlpool Refrigerator Filler
18GRILLE (INCLUDES ILLUS. 19) (APOLLO GRAY)
19CLIP, GRILLE
20WP487576 Whirlpool Washer
21W10853622 Whirlpool Refrigerator Cover
22CABINET (NOT A SERVICEABLE PART)
23Cover, Unit
24WP488366 Whirlpool Refrigerator Clamp
