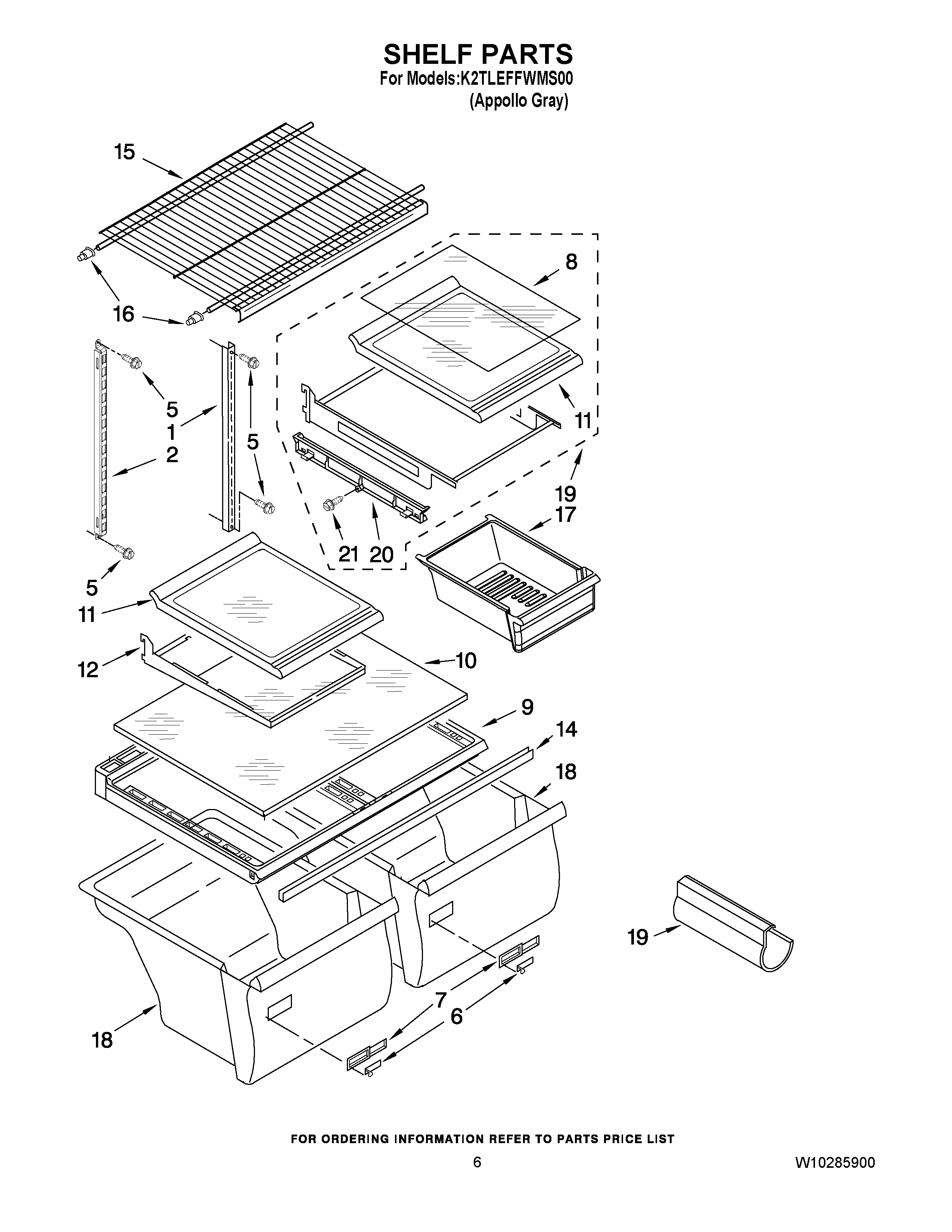

K2TLEFFWMS00 04 – SHELF PARTS

K2TLEFFWMS00 04 – SHELF PARTS

Written by

in

K2TLEFFWMS00 04 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
5WP489478 Whirlpool Refrigerator Screw
6WP2176222 Whirlpool Refrigerator Slide
7WP2212446 Whirlpool Refrigerator Control Body
8Glass, Shelf
9WP2314549 Whirlpool Refrigerator Cover
10WP2176225 Whirlpool Glass Shelf
11SHELF, SPILLGAURD
12Frame Assembly, Shelf
14WP2172748 Whirlpool Drawer Support
15Shelf, Freezer
162163762 Whirlpool Refrigerator Cup Assembly
17WP2218132K Whirlpool Crisper Meat Pan
18W10854037 Whirlpool Refrigerator Crisper Pan
19SHELF ASSY
20Track, Pan Slide (2)
21WP3400065 Whirlpool Refrigerator Screw
