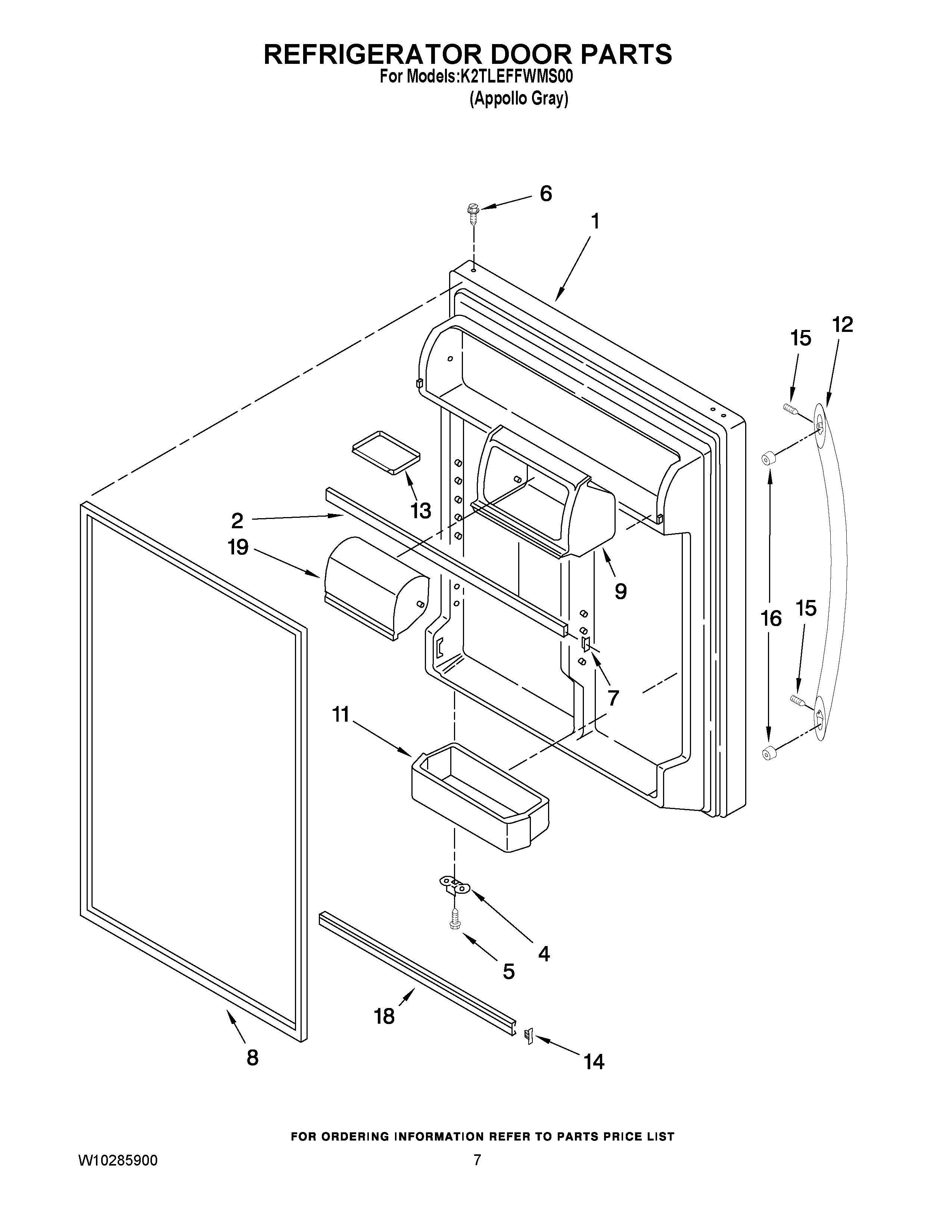

K2TLEFFWMS00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 8 & 10)
2Trim, Door Shelf
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7Endcap, Door Trim
8W10249195 Whirlpool Refrigerator Door Gasket
9Housing Compartment
11BIN-CNTLVR
12HANDLE, FREEZER (INCLUDES ILLUS. 11) (ARCH)
13Tray, Door
14WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
15SET SCREW
16WPW10170540 Whirlpool Screw
18WPW10421486 Whirlpool Refrigerator Door Trim
19DOOR-COMP
