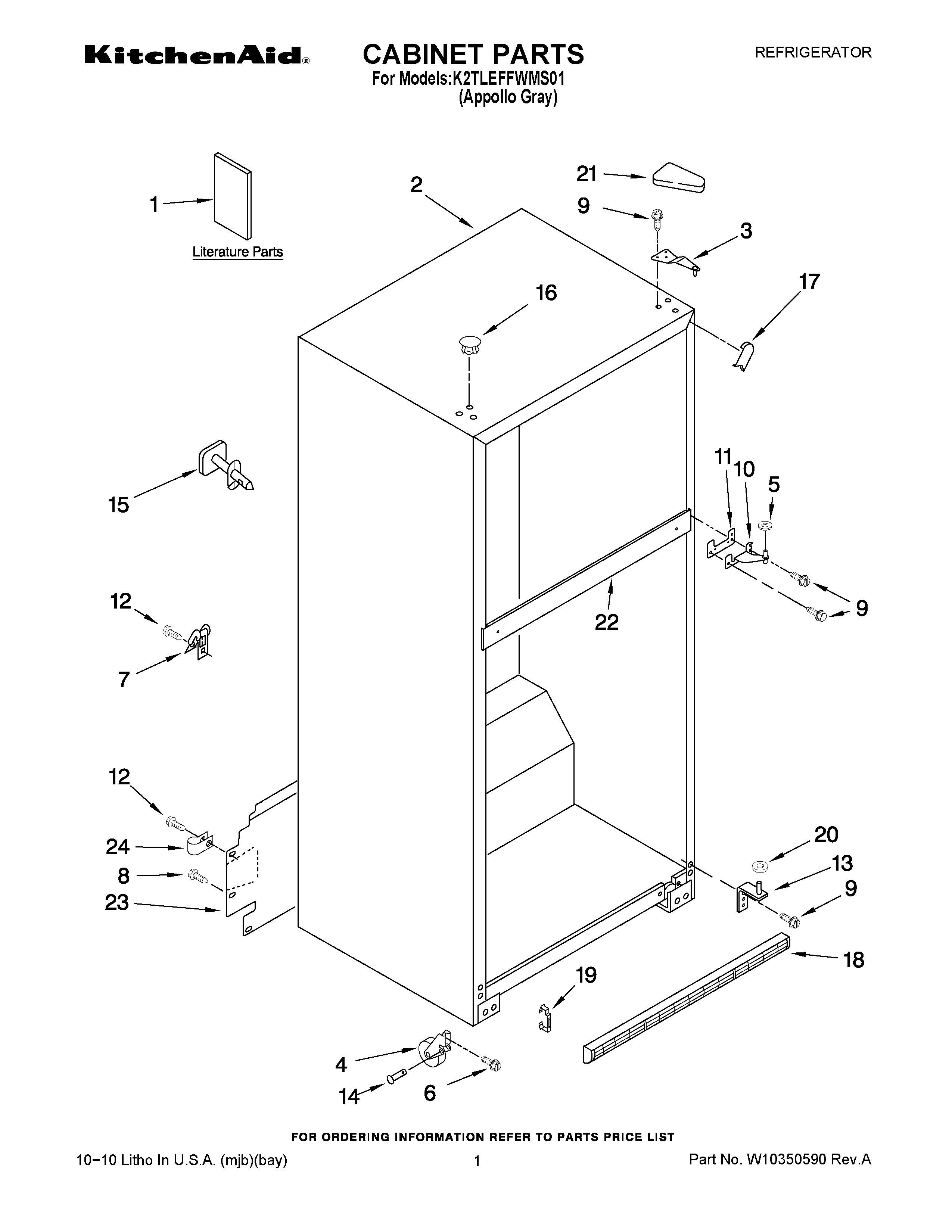

K2TLEFFWMS01 01 – CABINET PARTS

Products

Position	Product
1	U & C GUIDETRI
1	SERVICE & WIRING SHEET
1	DO-IT-YOURSELF MANUAL, ICEMAKER
1	ENERGY LABEL
1	U & C GUIDE BI
3	WP2261963 Whirlpool Refrigerator Door Hinge
4	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP489467 Whirlpool Hinge Shim
6	WP3400504 Whirlpool Refrigerator Screw
7	549193 Whirlpool Refrigerator Power Clamp
8	WP489427 Whirlpool Refrigerator Screw
9	WP489497 Whirlpool Screw
10	WP2254618 Whirlpool Center Door Hinge
11	WP2183852 Whirlpool Refrigerator Shim
12	WP489464 Whirlpool Refrigerator Screw
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	W11594405 Whirlpool Axle
16	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
17	W10851579 Whirlpool Refrigerator Filler
18	GRILLE (INCLUDES ILLUS. 19) (APOLLO GRAY)
19	CLIP, GRILLE
20	WP487576 Whirlpool Washer
21	W10853622 Whirlpool Refrigerator Cover
22	CABINET (NOT A SERVICEABLE PART)
23	Cover, Unit
24	WP488366 Whirlpool Refrigerator Clamp
