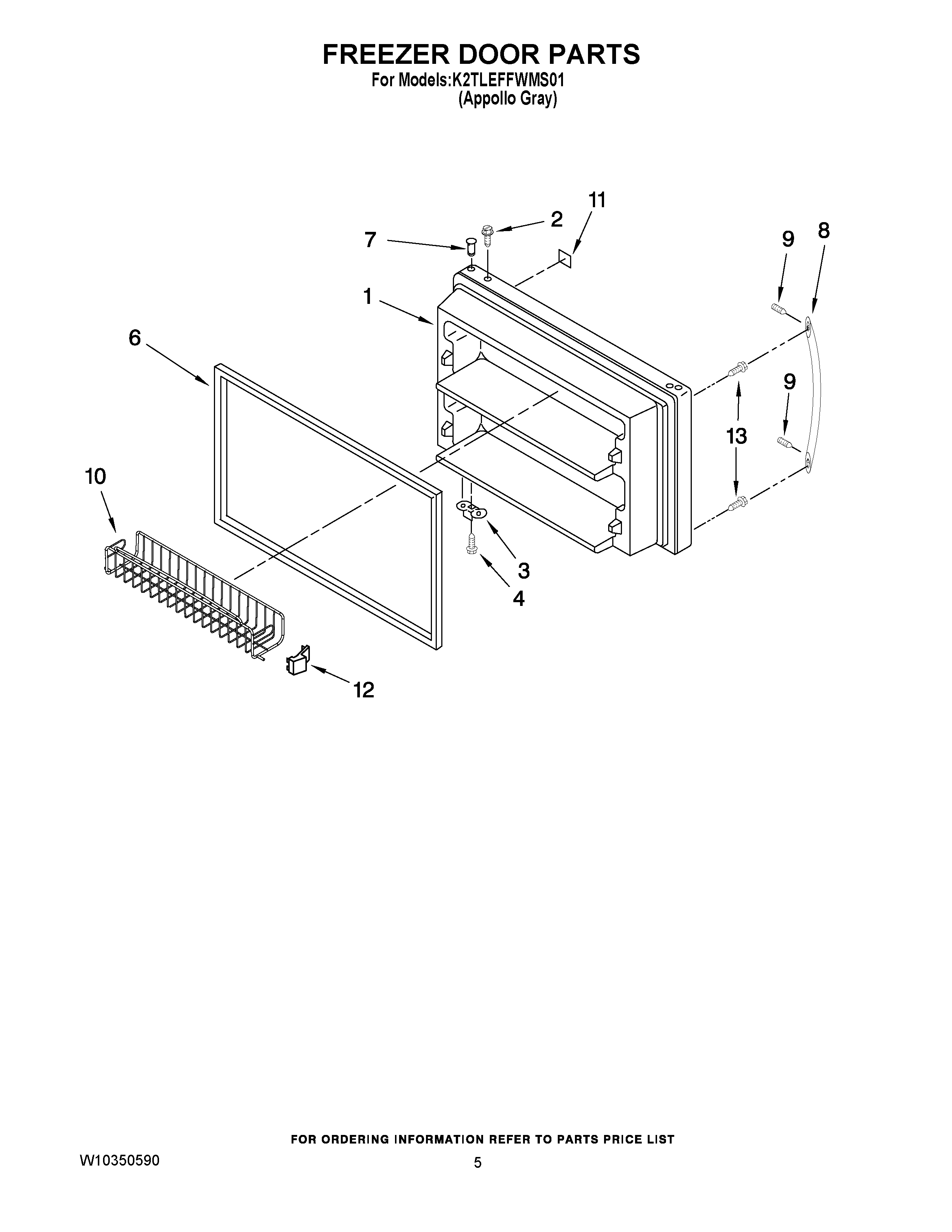

K2TLEFFWMS01 03 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ILLUS. 6 & 7)
2WP8281206 Whirlpool Refrigerator Screw
3W11745278 Whirlpool Bracket
4WP488921 Whirlpool Refrigerator Screw
6W10249196 Whirlpool Refrigerator Gasket FIP
7WP2314293 Whirlpool Refrigerator Thimble
8HANDLE, FREEZER (INCLUDES ILLUS. 11) (ARCH)
9SCREW
10BASKET, DOOR (2)
11NAMEPLATE
12ENDCAP, BSKT.(L)
12ENDCAP, BSKT.(R)
13WPW10170540 Whirlpool Screw
