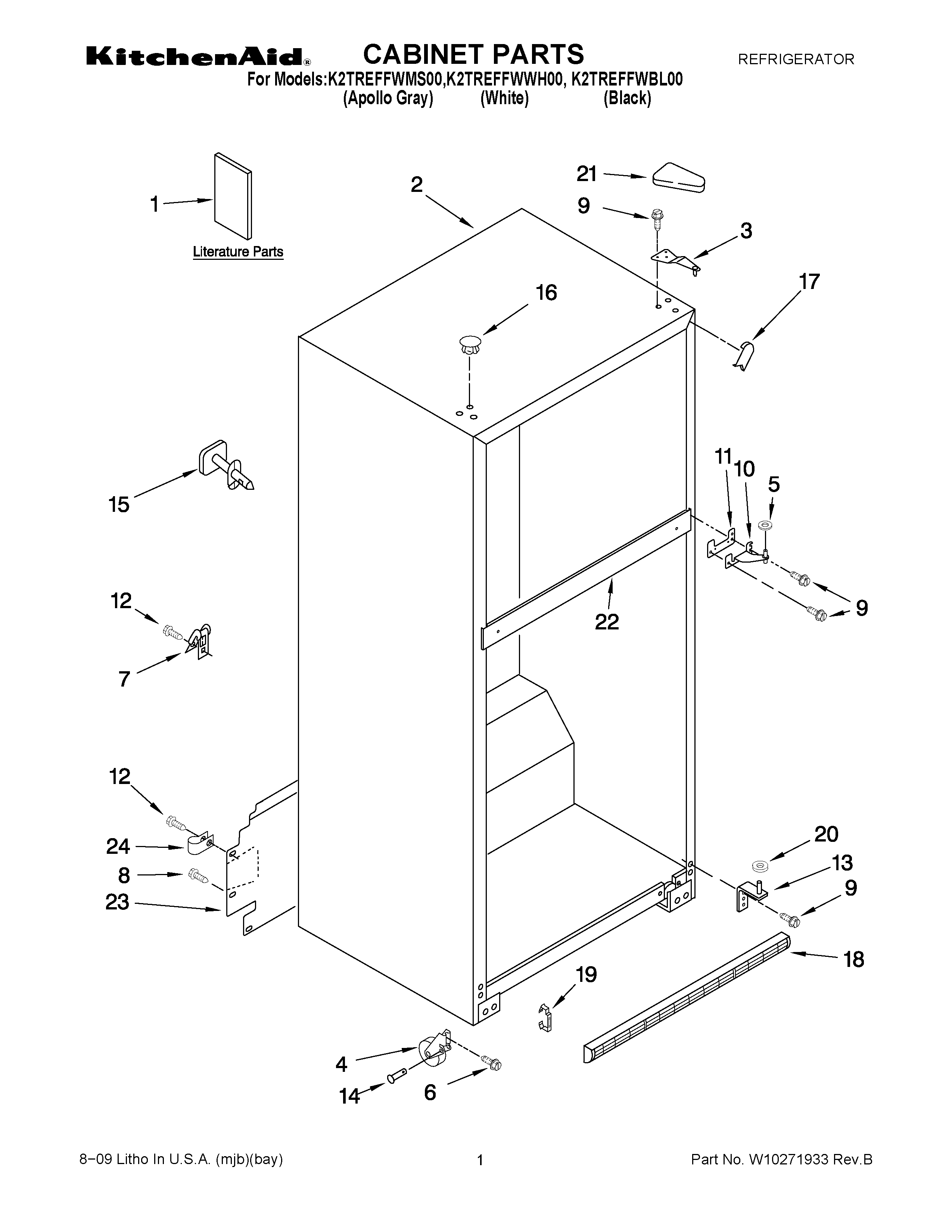

K2TREFFWBL00 01 – CABINET PARTSadmin2025-04-26T09:39:22+00:00K2TREFFWBL00 01 – CABINET PARTS ProductsPositionProduct1Service & Wiring Sheet1ENERGY LABEL1USE & CARE GUIDE1DO-IT-YOURSELF MANUAL, ICEMAKER3WP2261963 Whirlpool Refrigerator Door Hinge4WP2166108 Whirlpool Refrigerator Cabinet Roller5WP489467 Whirlpool Hinge Shim6WP3400504 Whirlpool Refrigerator Screw7549193 Whirlpool Refrigerator Power Clamp8WP489427 Whirlpool Refrigerator Screw9WP489497 Whirlpool Screw10WP2254618 Whirlpool Center Door Hinge11WP2183852 Whirlpool Refrigerator Shim12WP489464 Whirlpool Refrigerator Screw13WP2254473 Whirlpool Refrigerator Door Hinge14W11594405 Whirlpool Axle16WPW10520307 Whirlpool Refrigerator Replacement Plug Button16WP2151652 Whirlpool Refrigerator Button Plug16WP2183998 Whirlpool Refrigerator Button Plug17W10851579 Whirlpool Refrigerator Filler17W11252732 Whirlpool Refrigerator Filler17WPW10283959 Whirlpool Refrigerator Filler18Grille (White)18GRILLE (INCLUDES ILLUS. 19) (BLACK)18GRILLE (INCLUDES ILLUS. 19) (APOLLO GRAY)19CLIP, GRILLE20WP487576 Whirlpool Washer21W10853622 Whirlpool Refrigerator Cover21WP2213360 Whirlpool Refrigerator Cover21WP2213363 Whirlpool Refrigerator Cover22CABINET (NOT A SERVICEABLE PART)23Cover, Unit24WP488366 Whirlpool Refrigerator Clamp
