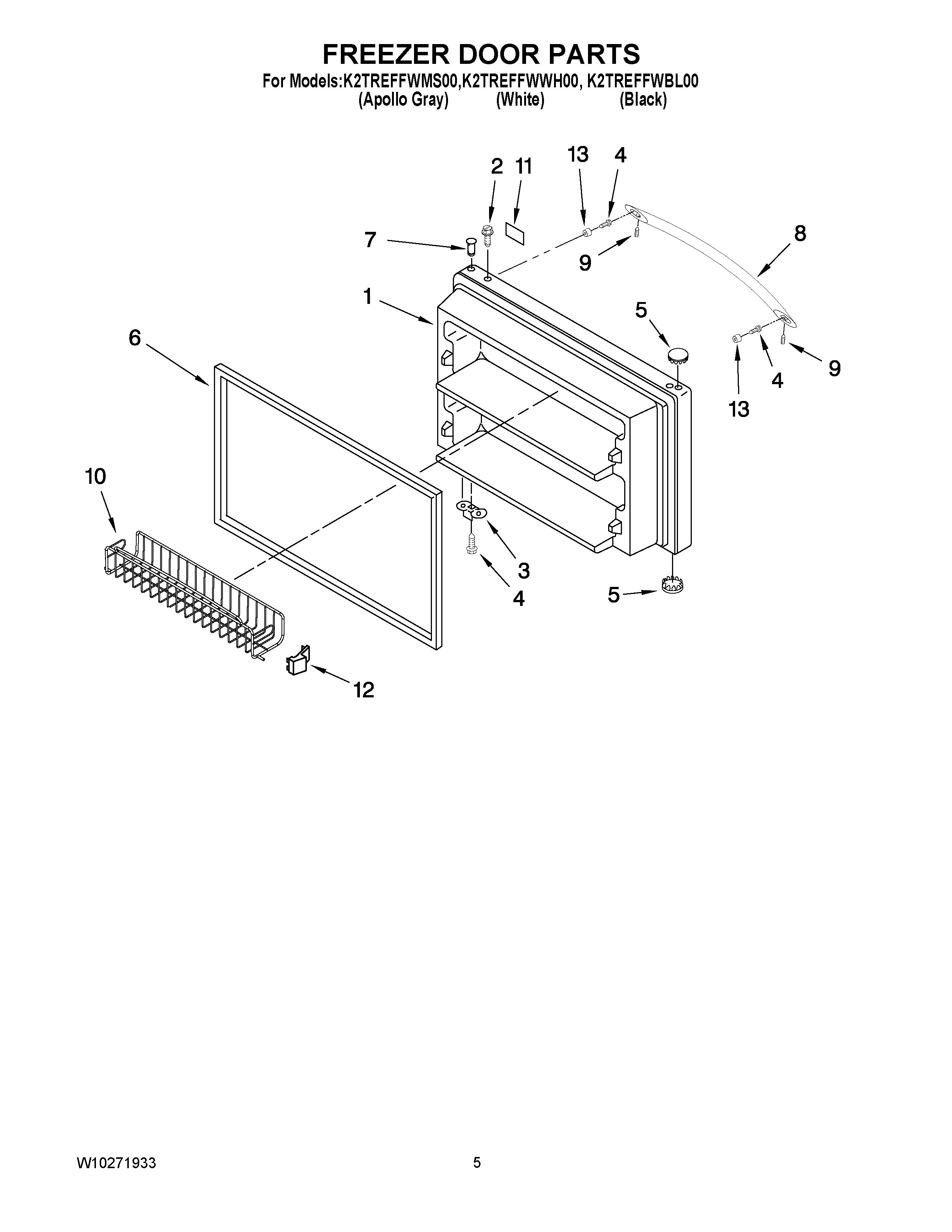

K2TREFFWBL00 03 – FREEZER DOOR PARTS

K2TREFFWBL00 03 – FREEZER DOOR PARTS

Written by

in

K2TREFFWBL00 03 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (WHITE)
1FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (BLACK)
1FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (STAINLESS STEEL)
2WP8281206 Whirlpool Refrigerator Screw
3W11745278 Whirlpool Bracket
4WP488921 Whirlpool Refrigerator Screw
5WP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
62177310 Whirlpool Refrigerator Door Gasket
6W10249196 Whirlpool Refrigerator Gasket FIP
7WP2314293 Whirlpool Refrigerator Thimble
8HANDLE, FREEZER (INCLUDES ILLUS. 11) (BLACK)
8HANDLE, FREEZER (INCLUDES ILLUS. 11) (ARCH)
8HANDLE, FREEZER (INCLUDES ILLUS. 11) (WHITE)
9SET SCREW
10BASKET, DOOR (2)
11NAMEPLATE
11WPW10243393 Whirlpool Dishwasher Nameplate
11WPW10243392 Whirlpool Dishwasher Nameplate
12ENDCAP, BSKT.(L)
12ENDCAP, BSKT.(R)
13WPW10170540 Whirlpool Screw
