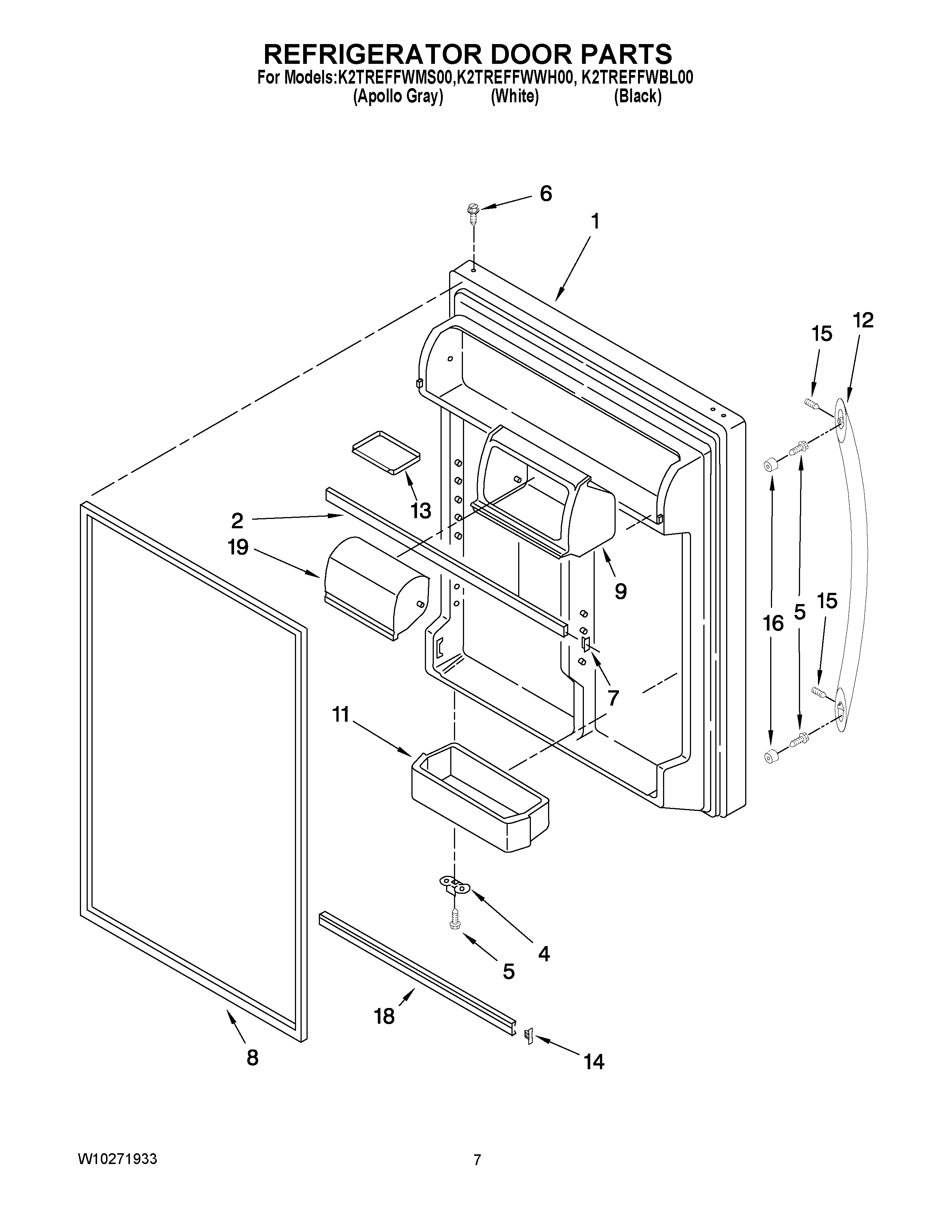

K2TREFFWMS00 05 – REFRIGER

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 8 & 10) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 8 & 10) (STAINLESS STEEL)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 8 & 10) (BLACK)
2	Trim, Door Shelf
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Endcap, Door Trim
8	2177311 Whirlpool Refrigerator Magnetic Door Gasket
8	W10249195 Whirlpool Refrigerator Door Gasket
9	Housing Compartment
11	BIN-CNTLVR
12	HANDLE, FREEZER (INCLUDES ILLUS. 11) (ARCH)
12	HANDLE, FREEZER (INCLUDES ILLUS. 11) (WHITE)
12	HANDLE, FREEZER (INCLUDES ILLUS. 11) (BLACK)
13	Tray, Door
14	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
15	SET SCREW
16	WPW10170540 Whirlpool Screw
18	WPW10421486 Whirlpool Refrigerator Door Trim
19	DOOR-COMP
