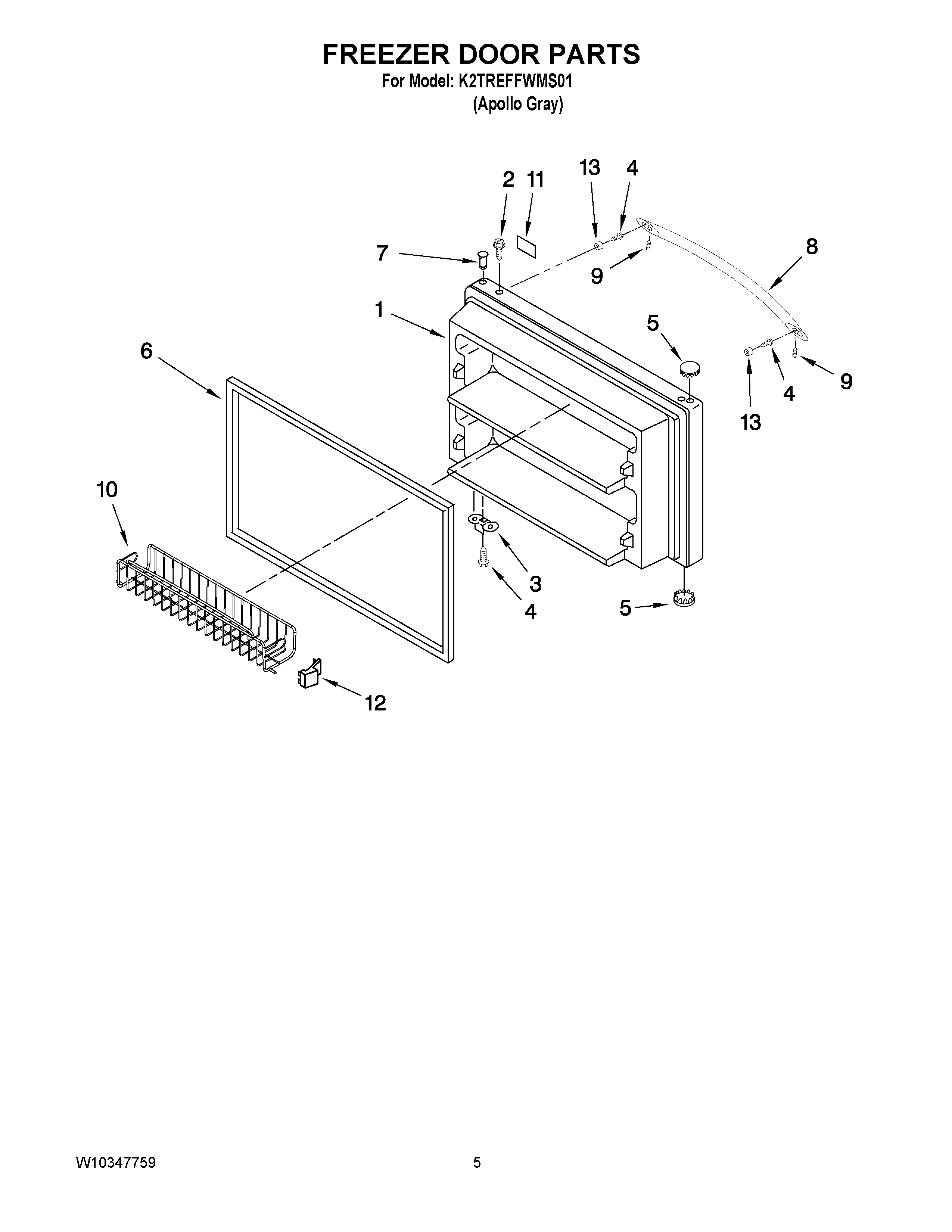

K2TREFFWMS01 03 – FREEZER DOOR PARTS

K2TREFFWMS01 03 – FREEZER DOOR PARTS

Written by

in

K2TREFFWMS01 03 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (STAINLESS STEEL)
2WP8281206 Whirlpool Refrigerator Screw
3W11745278 Whirlpool Bracket
4WP488921 Whirlpool Refrigerator Screw
5WPW10520307 Whirlpool Refrigerator Replacement Plug Button
6W10249196 Whirlpool Refrigerator Gasket FIP
7WP2314293 Whirlpool Refrigerator Thimble
8HANDLE, FREEZER (INCLUDES ILLUS. 11) (ARCH)
9SCREW
10BASKET, DOOR (2)
11NAMEPLATE
12ENDCAP, BSKT.(L)
12ENDCAP, BSKT.(R)
13WPW10170540 Whirlpool Screw
