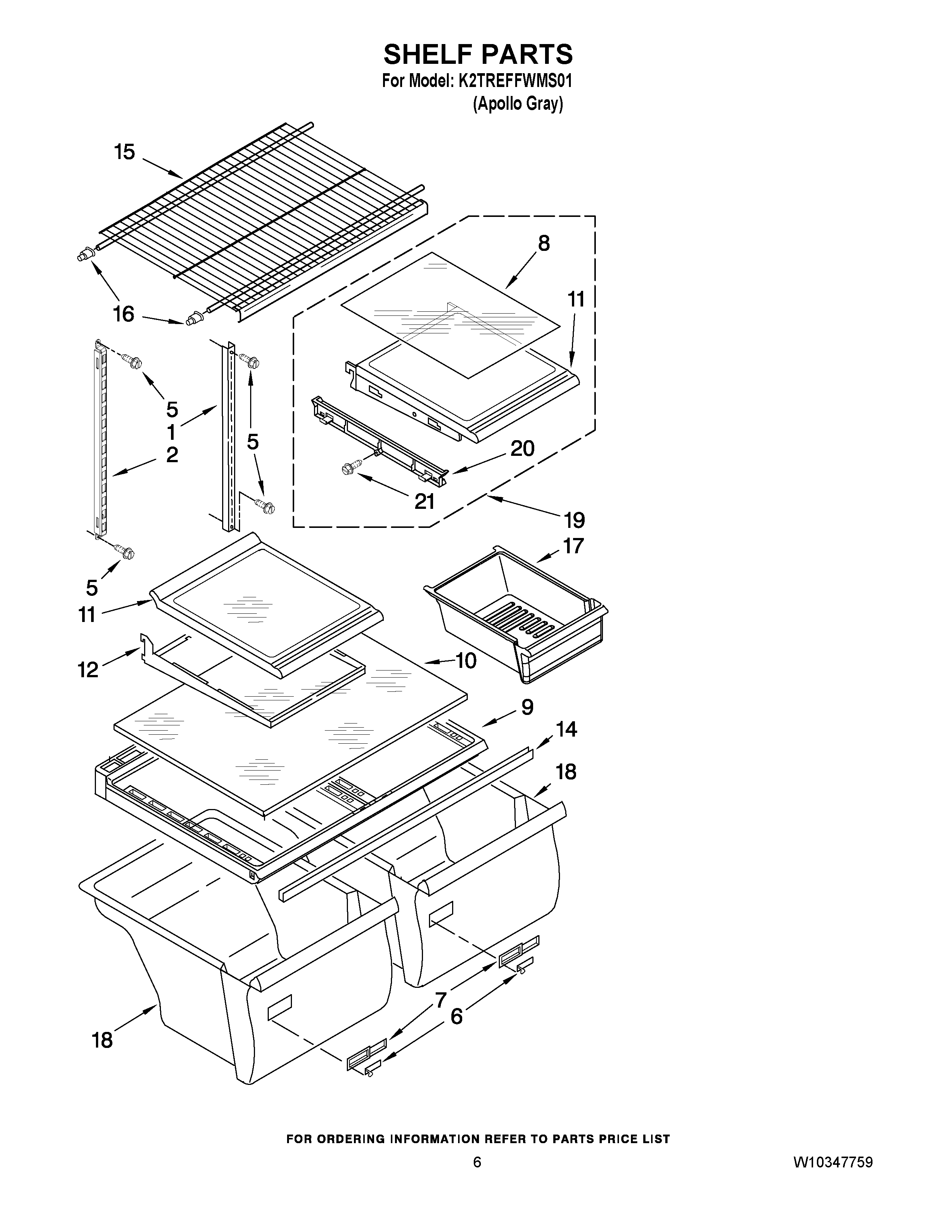

K2TREFFWMS01 04 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
5	WP489478 Whirlpool Refrigerator Screw
6	WP2176222 Whirlpool Refrigerator Slide
7	WP2212446 Whirlpool Refrigerator Control Body
8	Glass, Shelf
9	WP2314549 Whirlpool Refrigerator Cover
10	WP2176225 Whirlpool Glass Shelf
11	WP999520 Whirlpool Refrigerator Glass Shelf
12	Frame Assembly, Shelf
14	WP2172748 Whirlpool Drawer Support
15	Shelf, Freezer
16	2163762 Whirlpool Refrigerator Cup Assembly
17	WP2218132K Whirlpool Crisper Meat Pan
18	W10854037 Whirlpool Refrigerator Crisper Pan
19	SHELF ASSY
20	Track, Pan Slide (2)
21	WP3400065 Whirlpool Refrigerator Screw
