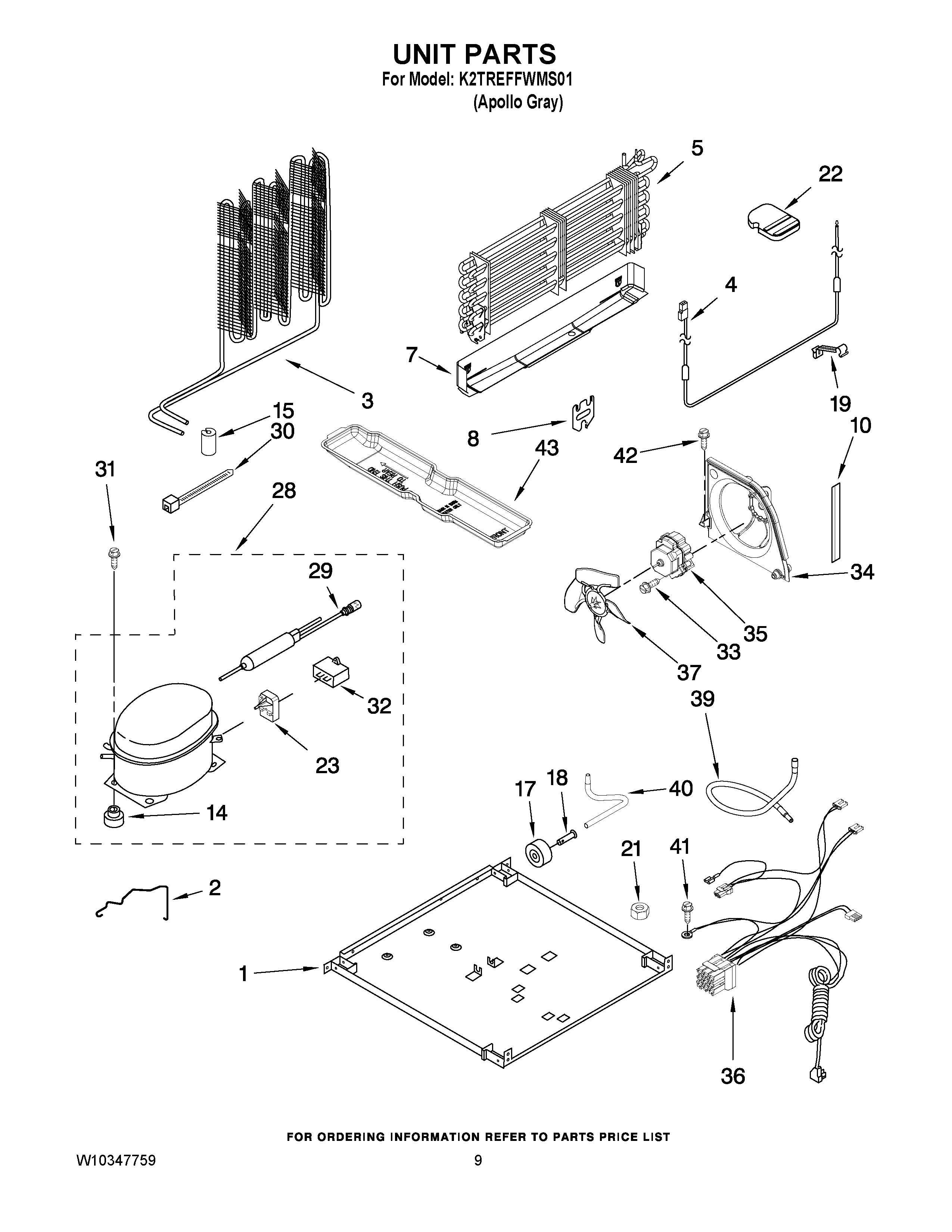

K2TREFFWMS01 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	W11661170 Whirlpool Clip
3	Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
7	Drain Pan
8	Bracket, Heater
10	Extension, Air Baffle
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	W10852725 Whirlpool Refrigerator Grommet
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
22	Support Block
23	WPW10194431 Whirlpool Start Device
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	W11501418 Whirlpool Refrigerator Screw
34	WP2315541 Whirlpool Refrigerator Air Baffle
35	WP2188874 Whirlpool Refrigerator Condenser Motor
36	2187382 Whirlpool Refrigerator Wire Harness
37	W11458267 Whirlpool Refrigerator Fan Blade
39	Tube, Suction
40	W10274306 Whirlpool Refrigerator Tube
41	WP489128 Whirlpool Refrigerator Screw
42	3400518 Whirlpool Oven Foot Mount Screw
43	WP2254574 Whirlpool Refrigerator Evaporator Tray
