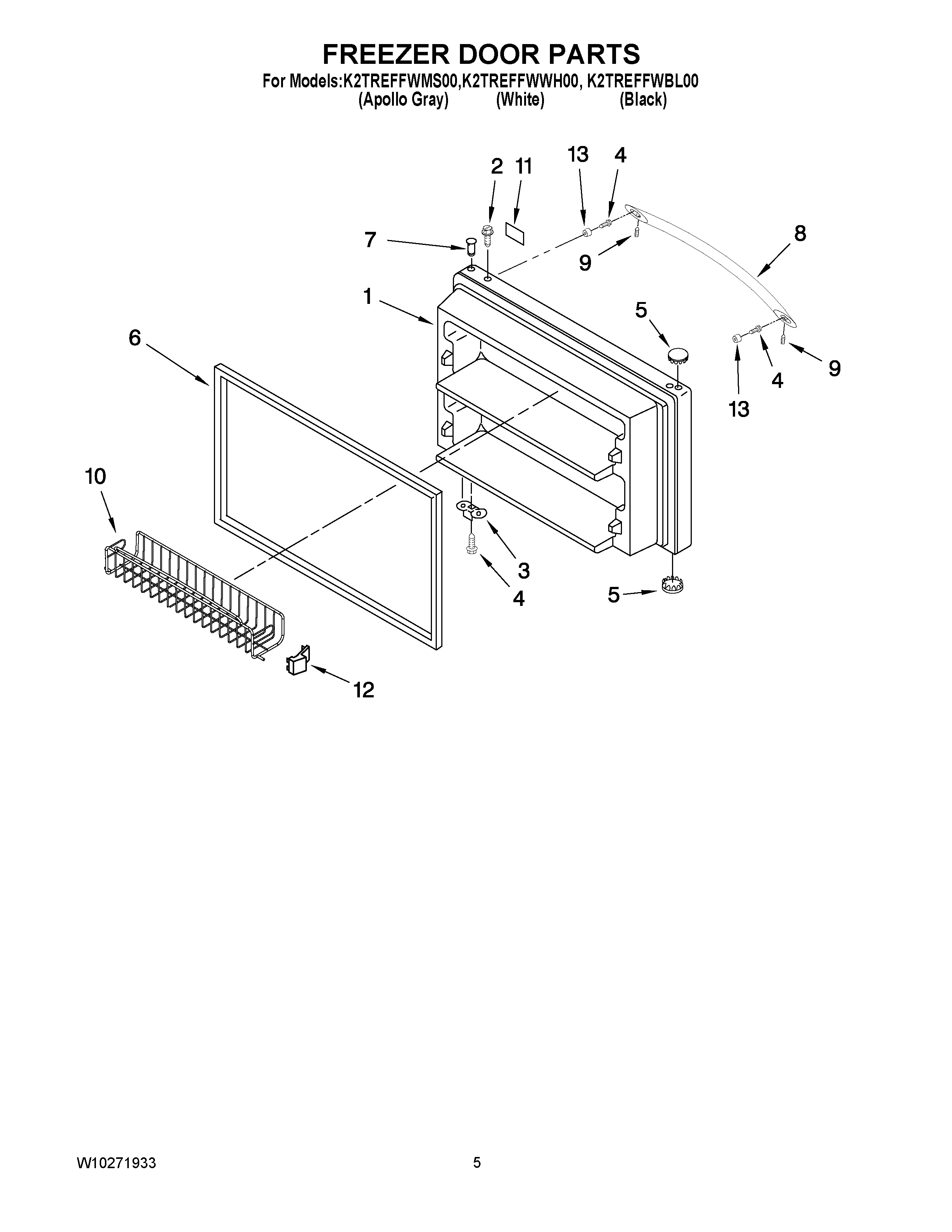

K2TREFFWWH00 03 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (WHITE)
1	FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (BLACK)
1	FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (STAINLESS STEEL)
2	WP8281206 Whirlpool Refrigerator Screw
3	W11745278 Whirlpool Bracket
4	WP488921 Whirlpool Refrigerator Screw
5	WP2212651 Whirlpool Refrigerator Button Plug
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6	2177310 Whirlpool Refrigerator Door Gasket
6	W10249196 Whirlpool Refrigerator Gasket FIP
7	WP2314293 Whirlpool Refrigerator Thimble
8	HANDLE, FREEZER (INCLUDES ILLUS. 11) (BLACK)
8	HANDLE, FREEZER (INCLUDES ILLUS. 11) (ARCH)
8	HANDLE, FREEZER (INCLUDES ILLUS. 11) (WHITE)
9	SET SCREW
10	BASKET, DOOR (2)
11	NAMEPLATE
11	WPW10243393 Whirlpool Dishwasher Nameplate
11	WPW10243392 Whirlpool Dishwasher Nameplate
12	ENDCAP, BSKT.(L)
12	ENDCAP, BSKT.(R)
13	WPW10170540 Whirlpool Screw
