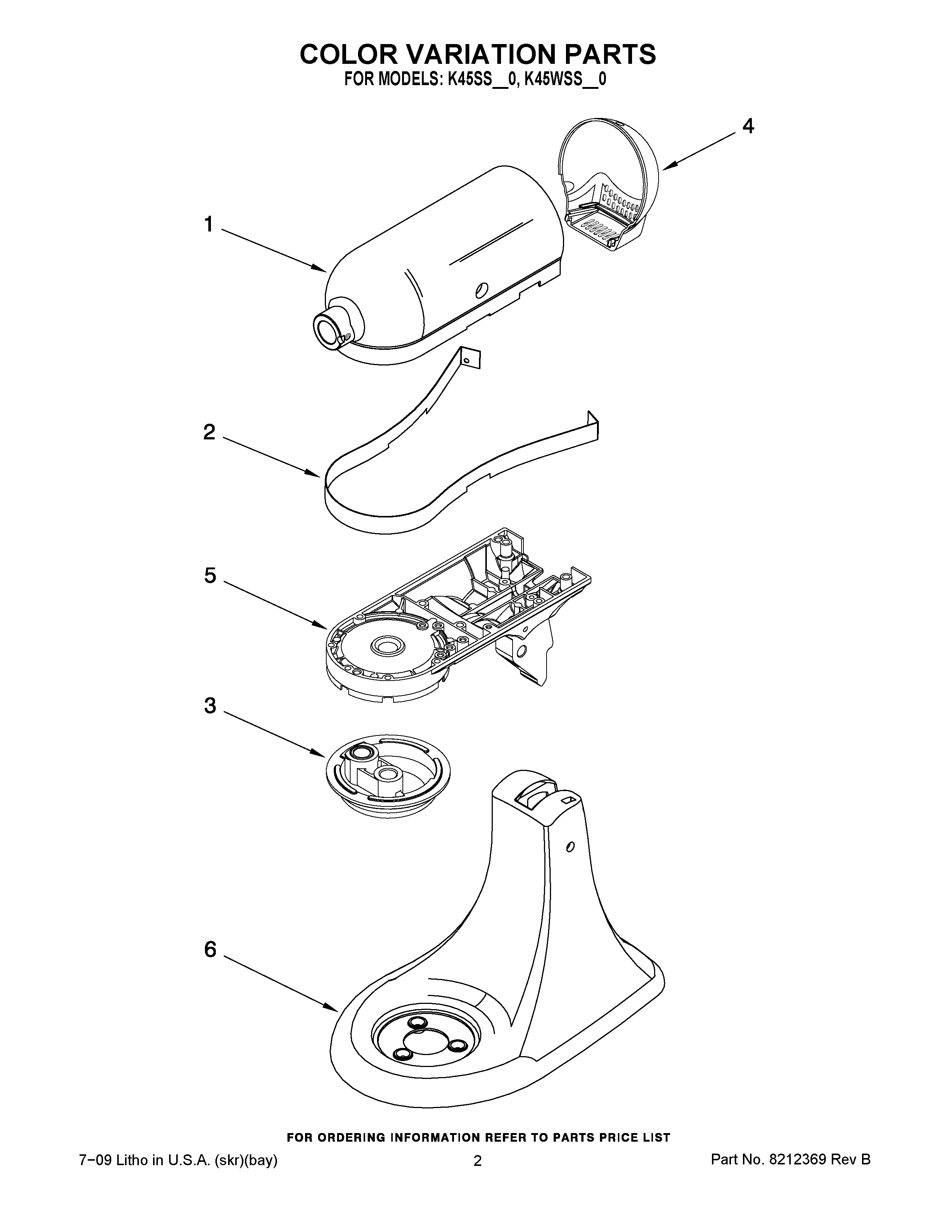

K45SSDAL-0 01 – COLOR VARIATION PARTS

Products

Position	Product
1	Motor Housing (White)
1	Motor Housing (Almond Creme)
1	Motor Housing (Onyx Black)
2	W10859323 Whirlpool Band Trim
3	PLANETARY-Onyx Black
3	Planetary (Almond Creme)
3	PLANETARY-White
4	END COVER-White
4	END COVER (ONYX BLACK)
4	End Cover (Almond Creme)
5	LOWER GEARCASE-White
5	LOWER GEARCASE (ALMOND CREME)
5	LOWER GEARCASE (ONYX BLACK)
6	Pedestal w/Feet (Onyx Black)
6	3179260 Whirlpool Pedestal
6	PEDESTAL W/FEET (ALMOND CREME)
