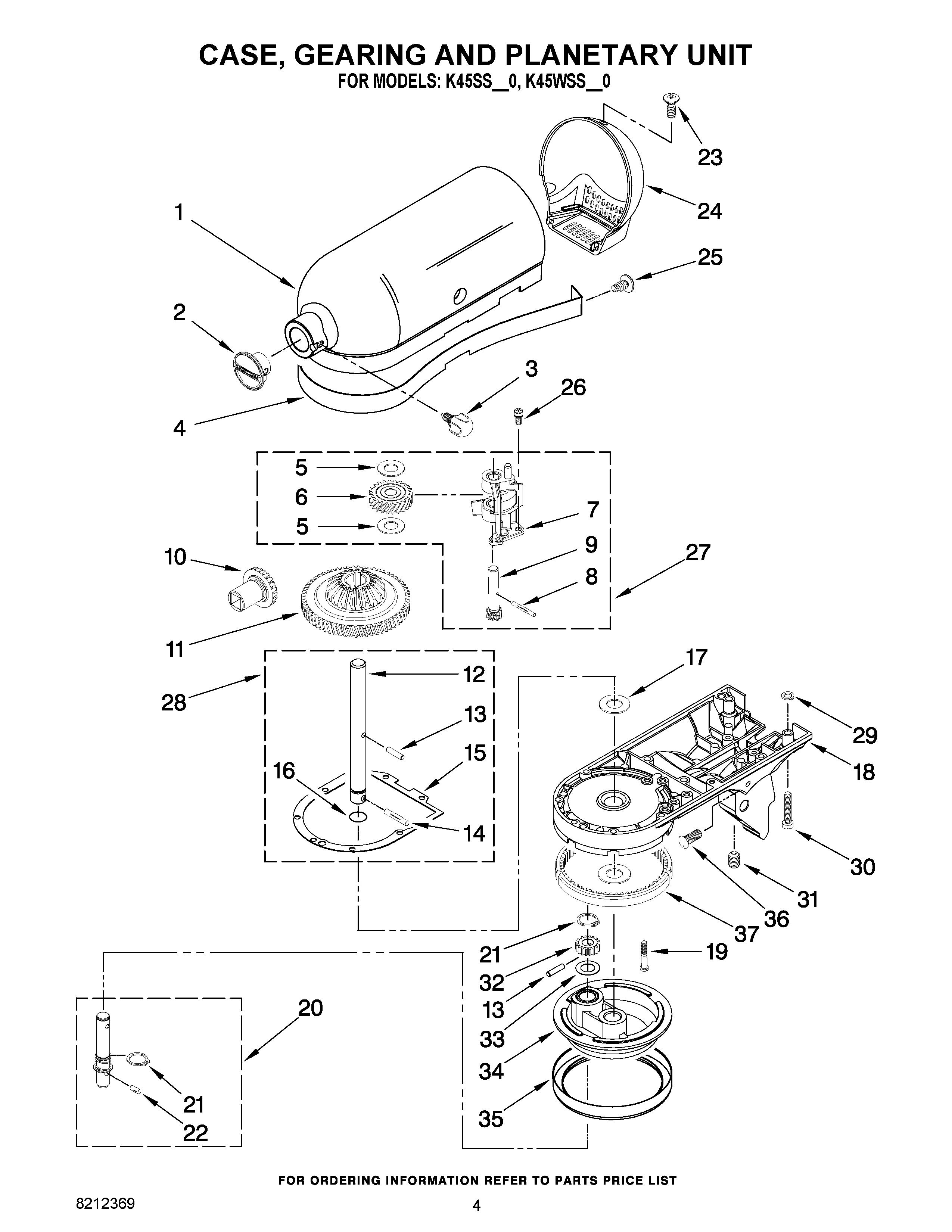

K45SSOB0 02 – CASE, GEARING AND PLANETARY UNIT

K45SSOB0 02 – CASE, GEARING AND PLANETARY UNIT

Written by

in

K45SSOB0 02 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
2Cap, Attachment Hub
2CAP, ATTACHMNT HUB (PAINTED)
3WP9709194 Whirlpool Black Thumb Screw
3WP9709196 Whirlpool Screw
5WPW10323373 Whirlpool Washer
6WPW10112253 Whirlpool Gear Assembly
7W11082541 Whirlpool Bearing
8WP9705444 Whirlpool Pin Groove
9Shaft & Pinion
10W11192794 Whirlpool HUB Gear
12WP240026 Whirlpool Control Shaft
13Pin (Vertical Center Shaft)
14WP9705443 Whirlpool Pin Groove
15WP4162324 Whirlpool Case Gasket
16O RING
17WPW10323378 Whirlpool Washer
19Screw, Special (5)
20WP243368 Whirlpool Agitator Shaft
21WP9703438 Whirlpool Snap Retaining Ring
22W11664709 Whirlpool Groove Pin
23WP241877 Whirlpool Screw
25WP313808 Whirlpool Screw
26W11097298 Whirlpool Dishwasher Screw
27GEAR, WORM AND BRACKET
284160474 Whirlpool Control Shaft
29WP8533914 Whirlpool Lock
30WP3400025 Whirlpool Screw
31WP3400203 Whirlpool Screw
32W11133645 Whirlpool Pinion Gear
33WP9706090 Whirlpool Washer
34CABINET (NOT A SERVICEABLE PART)
35WP240285 Whirlpool Drip Ring
36W11028216 Whirlpool Screw
37W11340106 Whirlpool Gear Assembly
