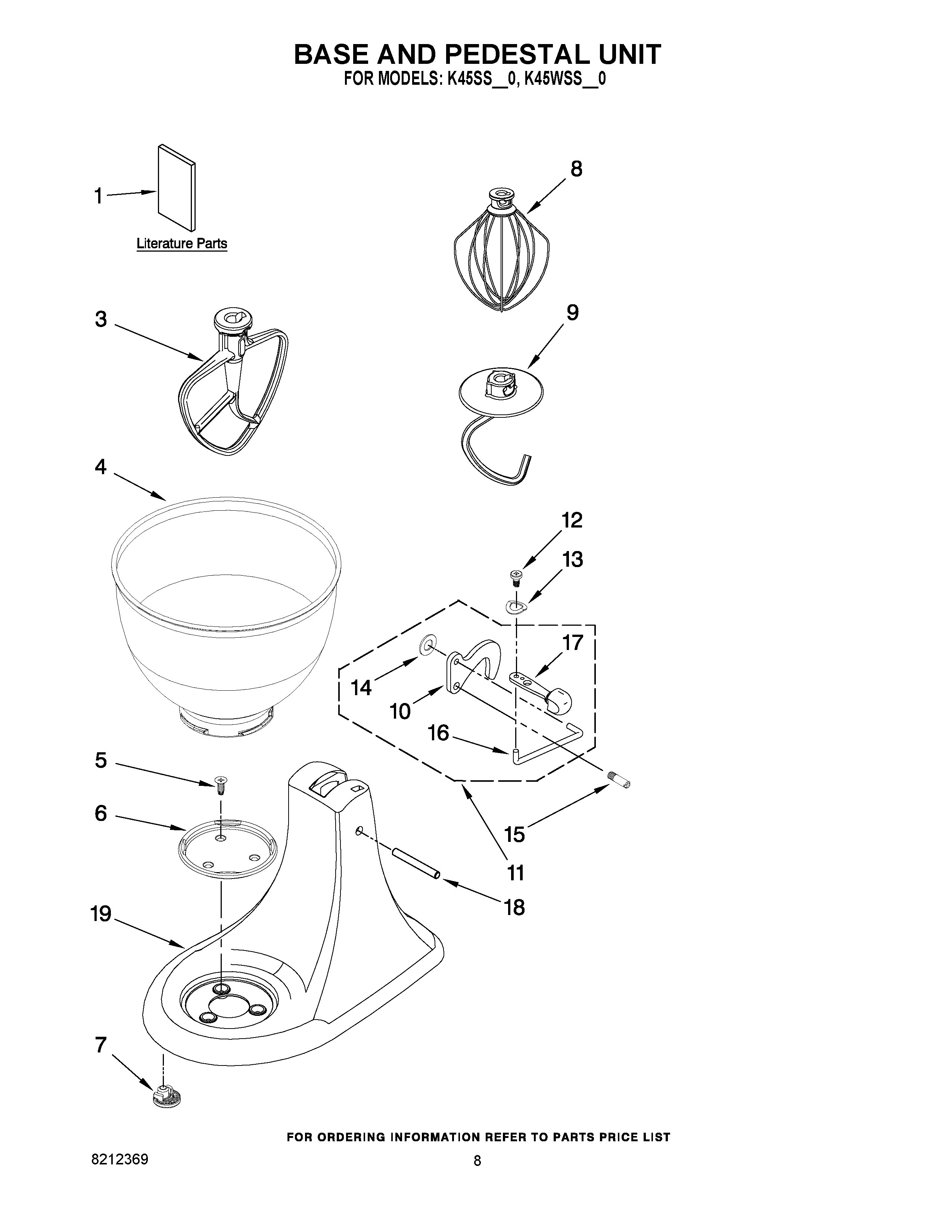

K45WSSWH-0 04 – BASE AND PEDESTAL UNIT

Products

Position	Product
1	Use & Care, Trilin
1	Repair Parts List
3	WPW10672617 Whirlpool Stand Mixer Flat Beater
4	W10802058 Whirlpool Mixer Bowl
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WP9704329 Whirlpool Wire Whip
9	WPW10674618 Whirlpool Dough Hook
10	W11246352 Whirlpool Latch Mechanism
11	Latch, Link & Lever (Storm Grey)
11	WP24452 Whirlpool Latch Lever
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	103993 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	9709281 Whirlpool Latch Lever
17	WP9709280 Whirlpool Latch Lever
18	WP16910 Whirlpool Dowel Pin
19	CABINET (NOT A SERVICEABLE PART)
