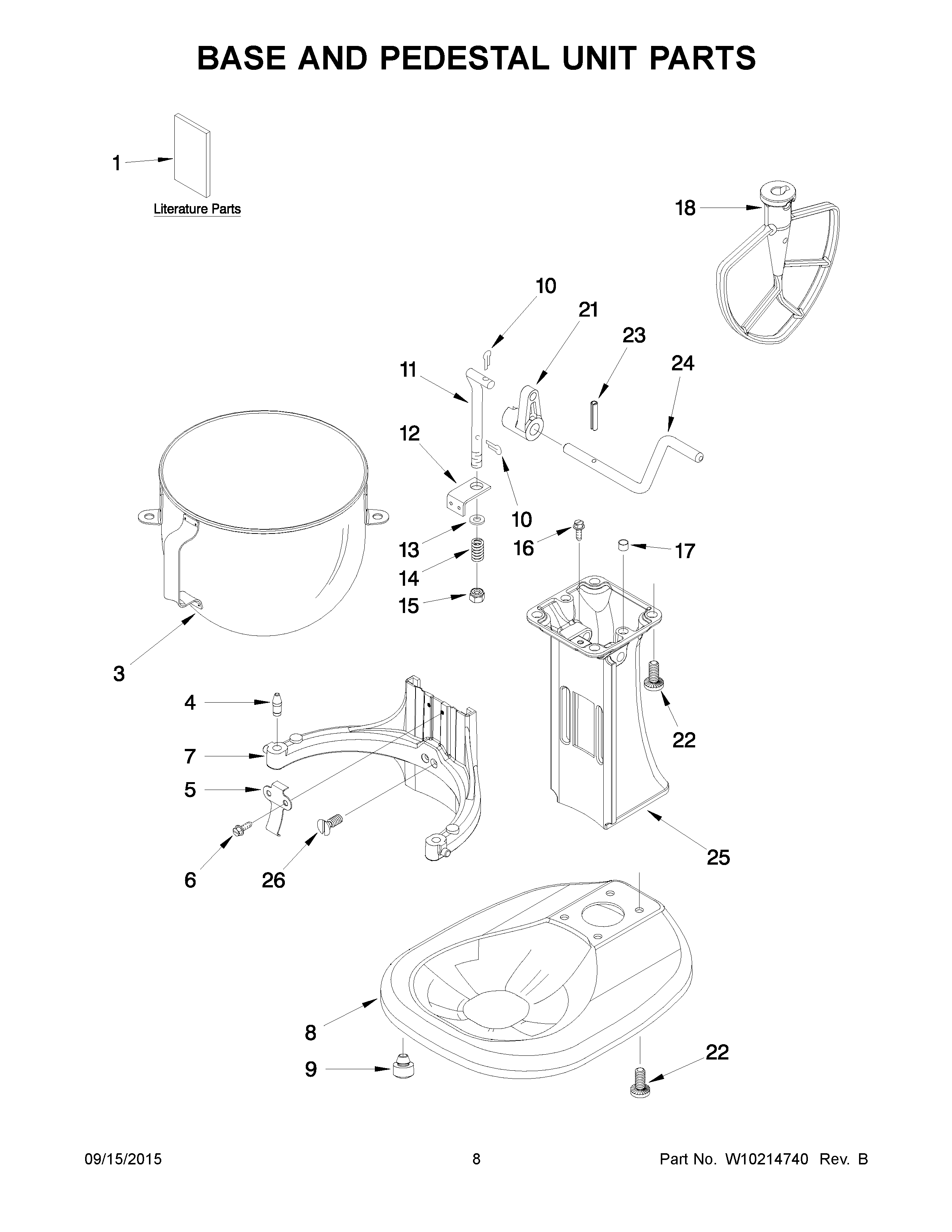

K4SSWH0 05 – BASE AND PEDESTAL UNIT PARTS

K4SSWH0 05 – BASE AND PEDESTAL UNIT PARTS

Written by

in

K4SSWH0 05 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1GUIDE, USE & CARE
3W10802050 Whirlpool Mixer Bowl
4WP240185 Whirlpool Bowl Retaining Pin
5WP3182857 Whirlpool Spring
6WP4159193 Whirlpool Screw
9WP9708649 Whirlpool Foot
10WP9704608 Whirlpool Cotter Pin
11W10598834 Whirlpool Lift Rod
12240169 Whirlpool Bracket
13W11708396 Whirlpool Washer
144159622 Whirlpool PP Spring
158533907 Whirlpool Dishwasher Nut
163182904 Whirlpool Screw
17PIN, DOWEL
18BEATER, FLAT
21WP241764 Whirlpool Mixer Lift Arm Bowl
22WP4162403 Whirlpool Screw
23WP9703442 Whirlpool Roll Pin
24W10598843 Whirlpool Handle Assembly
25CABINET (NOT A SERVICEABLE PART)
26W10861883 Whirlpool Screw
