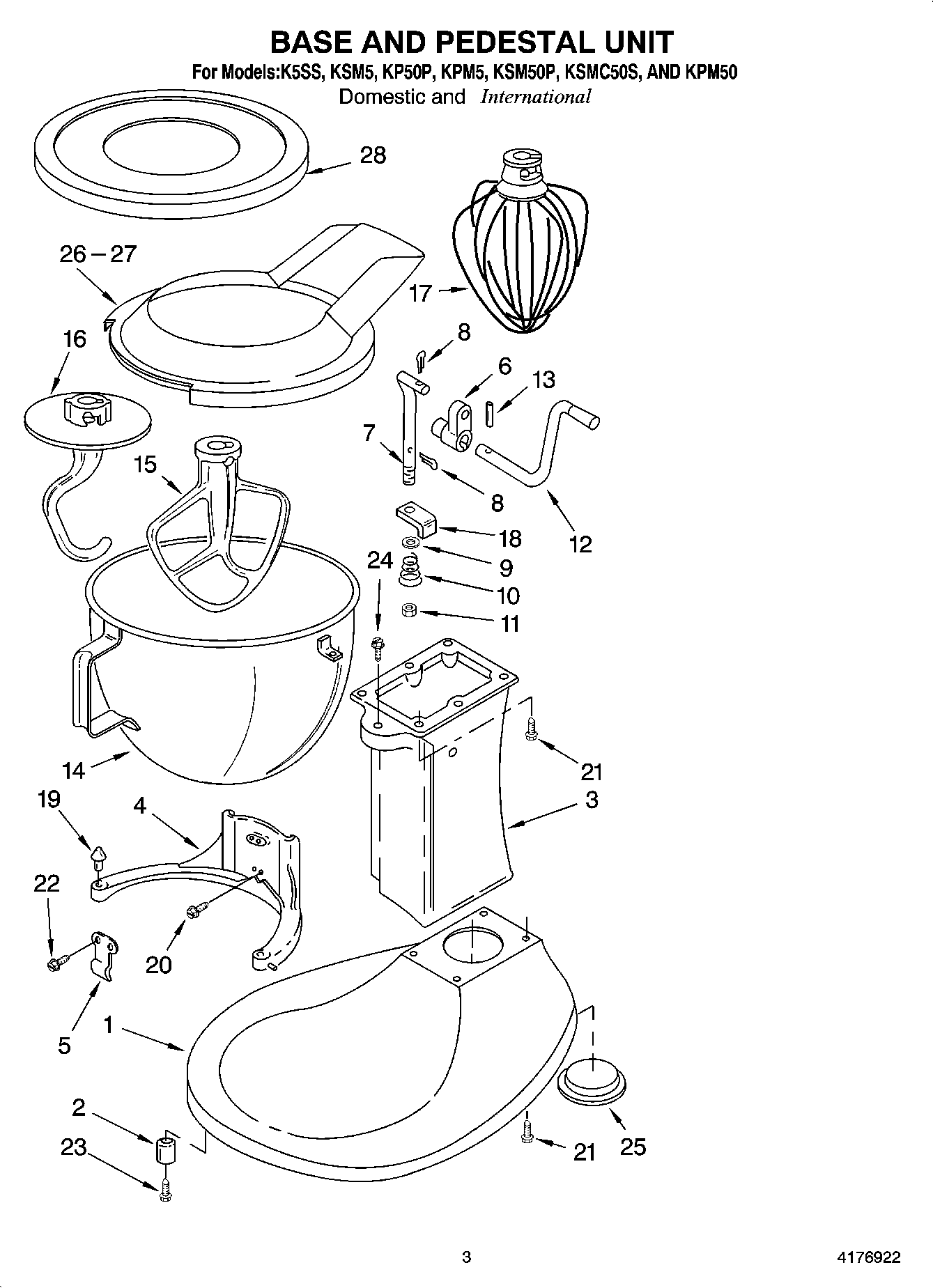

K5SS 01 – BASE AND PEDESTAL UNIT

K5SS 01 – BASE AND PEDESTAL UNIT

Written by

in

K5SS 01 – BASE AND PEDESTAL UNIT

Products

PositionProduct
1BASE & FOOT SUPPORT-MAJESTIC YELLOW
1KPM5 MODEL
1BASE & FOOT SUPPORT-EMPIRE GREEN
1BASE & FOOT SUPPORT-COBALT BLUE
1KSMC50S MODEL
1BASE & FOOT SUPPORT-METALLIC CHROME
1BASE & FOOT SUPPORT-EMPIRE RED
1BASE & FOOT SUPPORT – GLOSS BLACK
1W11233906 Whirlpool Base
1240493-8 Whirlpool Base
1BASE & FOOT SUPPORT – ALMOND CREME
1BASE & FOOT SUPPORT – ROYAL CRIMSON
28211628 Whirlpool Foot Assembly
3COLUMN – ROYAL CRIMSON
3COLUMN ASSY-WHITE (INTERNATIONAL)
3COLUMN ASSY-METALLIC CHROME
3KSMC50S MODEL
3COLUMN – Almond Creme
3COLUMN ASSY – COBALT BLUE
3COLUMN – GLOSS BLACK
3COLUMN – EMPIRE GREEN
3COLUMN – IMPERIAL GREY
3COLUMN ASSY-MAJESTIC YELLOW
3COLUMN ASSY-EMPIRE RED
3COLUMN (WHITE)
4BOWL SUPPORT – METALLIC CHROME
4BOWL SUPPORT – MAJESTIC YELLOW
4WP3179304 Whirlpool Support
4BOWL SUPPORT – ALMOND CREME
4BOWL SUPPORT – EMPIRE RED
4BOWL SUPPORT-Empire Green
4BOWL SUPPORT – ROYAL CRIMSON
43179300 Whirlpool Support Assembly
4BOWL SUPPORT-COBALT BLUE
4BOWL SUPPORT – GLOSS BLACK
5WP3182857 Whirlpool Spring
6WP241764 Whirlpool Mixer Lift Arm Bowl
7W10598834 Whirlpool Lift Rod
8WP9704608 Whirlpool Cotter Pin
9W11708396 Whirlpool Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W10598843 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
14WPL 4176043
14WPW10714130 Whirlpool Mixer Bowl
14W10802050 Whirlpool Mixer Bowl
15W10807813 Whirlpool Mixer Beater
16WPW10674621 Whirlpool Dough Hook Assembly
17WPW10731415 Whirlpool Stand Mixer Wire Whip
18240169 Whirlpool Bracket
19WP240185 Whirlpool Bowl Retaining Pin
20W10861883 Whirlpool Screw
21WP4162403 Whirlpool Screw
21WPL ARI153138A
22WP4159193 Whirlpool Screw
23WPL 4159349
243182904 Whirlpool Screw
25WPL 4176184
26W11312468 Whirlpool Pour Shelf
28Literature Parts (Use And Care Guide)
28WPL LIT9705170
28WPL LIT4176922
28USE & CARE GUIDE
28WPL 3177925
