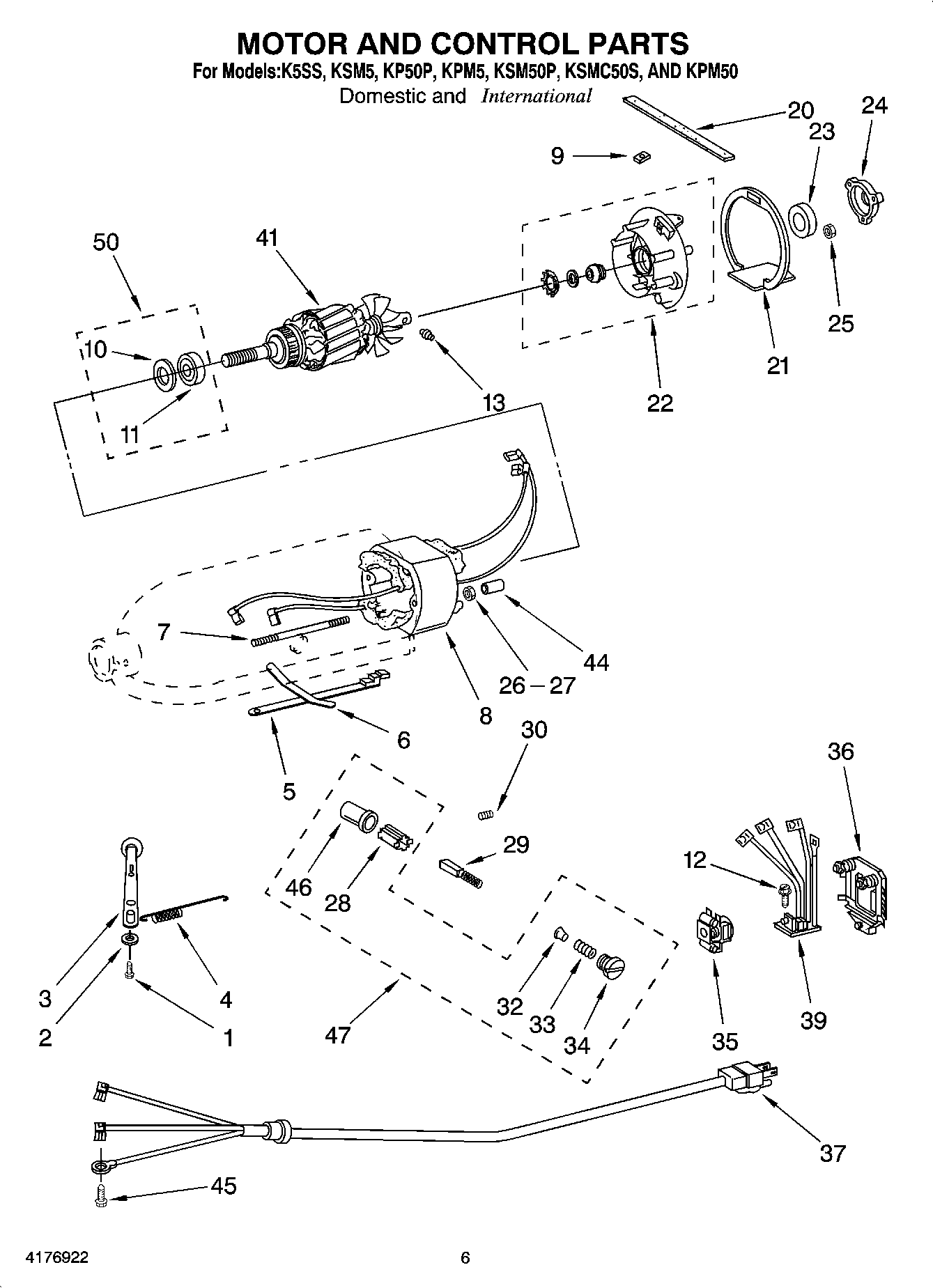

K5SS 03 – MOTOR AND CONTROL PARTS

Products

Position	Product
1	Screw, Pivot
2	Washer, Spring
3	WP9709277 Whirlpool Speed Lever
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	Speed Link & Cam
6	WP240205 Whirlpool Spring
7	W10851015 Whirlpool Stat Screw
8	WPW10417246 Whirlpool Field Assembly
8	W10870869 Whirlpool Field Assembly
8	(KSMC50S Model)
8	100 Volt (Japan Only)
10	WP9704324 Whirlpool Washer
11	SKF-6200ZJ
11	W11133634 Whirlpool Armature
12	W11084238 Whirlpool Screw Assembly
13	WP16998 Whirlpool Drive Stud
20	Seal (International)
20	KPM5 & KPM50
21	WP240775-1 Whirlpool Endcap Seal
22	WP3180526 Whirlpool Bearing Bracket
23	WASHER
26	8533905 Whirlpool Nut
27	W11170663 Whirlpool Washer
28	W11656718 Whirlpool Insert
29	WPW10380496 Whirlpool Stand Mixer Motor Brush
30	W11176201 Whirlpool Screw
32	WP116286 Whirlpool Spring Cap
33	WP116287 Whirlpool Spring Cap
34	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
34	WP3184211 Whirlpool Brush Cap
35	WPW10330804 Whirlpool Speed Governor
36	WPW10119326 Whirlpool Speed Control
37	W11545825 Whirlpool Power Cord
37	W10706734 Whirlpool Power Cord
37	W11396625 Whirlpool Power Cord
37	W10908276 Whirlpool Power Cord
37	W11112762 Whirlpool Power Cord
37	W11105837 Whirlpool Power Cord
37	Cord & Plug (110 Volt) (KSMC50
39	WPW10325124 Whirlpool Phase Board
39	W11174552 Whirlpool Stand Mixer Phase Board
41	W11105834 Whirlpool Armature
41	ARMATURE/BEARING
44	W11210996 Whirlpool Sleeve
45	Screw
46	WP3179908 Whirlpool Brush Holder
47	4162546 Whirlpool Brush Holder
50	W11200218 Whirlpool Grease Filter
50	CAN OPENER (CO)
50	JUICER (JE)
50	W11312468 Whirlpool Pour Shelf
50	FOOD GRINDER (FG-A)
50	WPL 3180616
50	WPW10714130 Whirlpool Mixer Bowl
50	WPL 3177925
50	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
50	PASTA MAKER PLATES (SNPA)
50	Food Tray (FT)
50	Speed Disc (Service Tool)
50	WPL 4176025
50	SAUSAGE STUFFER KIT (SSA)
50	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
50	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
50	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
50	Grain Mill (GM-A)
50	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
50	4162154 Whirlpool Water Jacket
