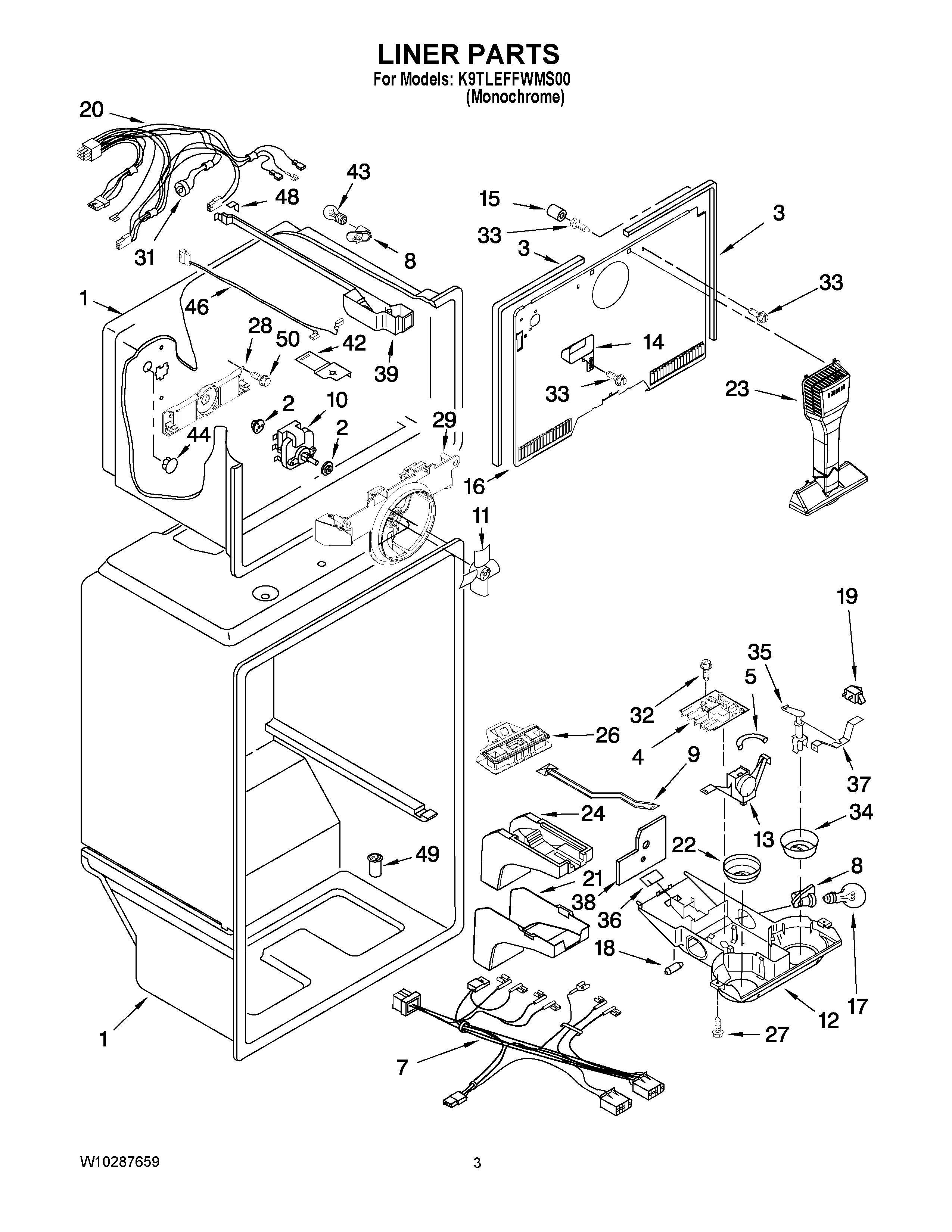

K9TLEFFWMS00 02 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5Thermostat Tube Barrier
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Illus. 5 & 18)
14Cover, Hole
15WP487996 Whirlpool Refrigerator Cap Tube
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20W10129799 Whirlpool Wire Harness
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26Air Diffuser, Top
27WP489442 Whirlpool Refrigerator Screw
282254454 Whirlpool Refrigerator Bracket
29BRACKET, FAN MOTOR
31WP2321800 Whirlpool Refrigerator Bimetallic Defrost
32Screw
33WP489478 Whirlpool Refrigerator Screw
34Knob, Damper
35Post, Damper
36WP2205079 Whirlpool Refrigerator Seal
37Bracket, Damper Knob
38Shield, heat
39Housing Base
42Electrical Shield, Freezer Light
434396822 Whirlpool Refrigerator Light Bulb
44WP941839 Whirlpool Refrigerator Button Plug
46Wiring Harness, Freezer Light
48Gasket, Rear
49WP2210509 Whirlpool Refrigerator Tub Valve
50WP488163 Whirlpool Refrigerator Screw
