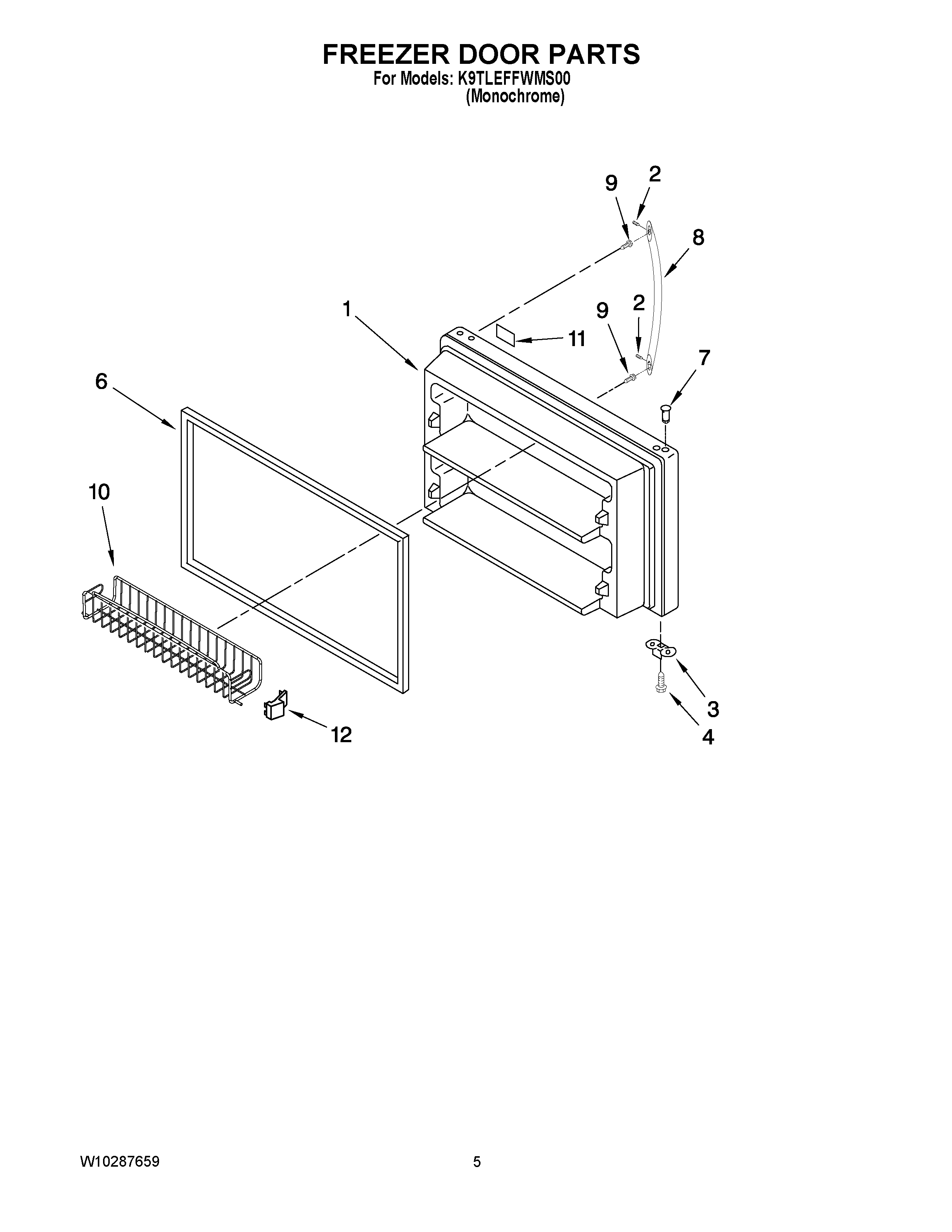

K9TLEFFWMS00 03 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (MONOCHROME)
2	SET SCREW
3	W11745278 Whirlpool Bracket
4	WP488921 Whirlpool Refrigerator Screw
6	W11624958 Whirlpool Refrigerator FIP Gasket
7	WP2314293 Whirlpool Refrigerator Thimble
8	HANDLE, FREEZER (INCLUDES ILLUS. 11) (ARCH)
9	WPW10170540 Whirlpool Screw
10	Door Basket- FC
11	WPW10243393 Whirlpool Dishwasher Nameplate
11	NAMEPLATE
12	ENDCAP, BSKT.(L)
12	ENDCAP, BSKT.(R)
