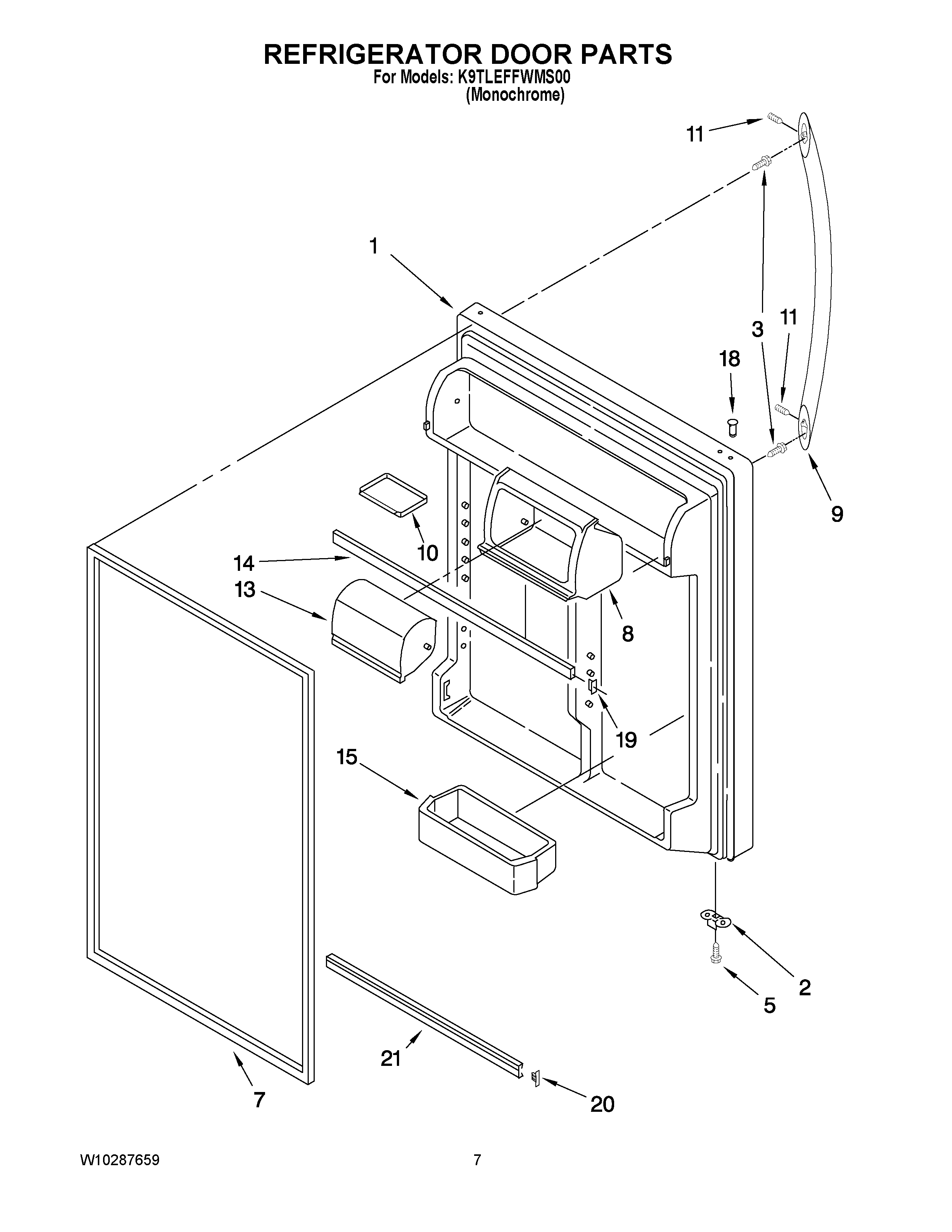

K9TLEFFWMS00 05 – REFRIGERATOR DOOR PARTS

K9TLEFFWMS00 05 – REFRIGERATOR DOOR PARTS

Written by

in

K9TLEFFWMS00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 7 & 18) (MONOCHROME)
2W11745278 Whirlpool Bracket
3WPW10170540 Whirlpool Screw
5WP488921 Whirlpool Refrigerator Screw
7W11624977 Whirlpool Refrigerator FIP Gasket
8Housing Compartment
9HANDLE, FREEZER (INCLUDES ILLUS. 11) (ARCH)
10Tray, Door
11SET SCREW
13DOOR-COMP
14WP2159312 Whirlpool Refrigerator Door Trim
15Bin, Door (3)
18WP2314293 Whirlpool Refrigerator Thimble
19Endcap, Door Trim
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21WPW10421484 Whirlpool Refrigerator Door Trim
