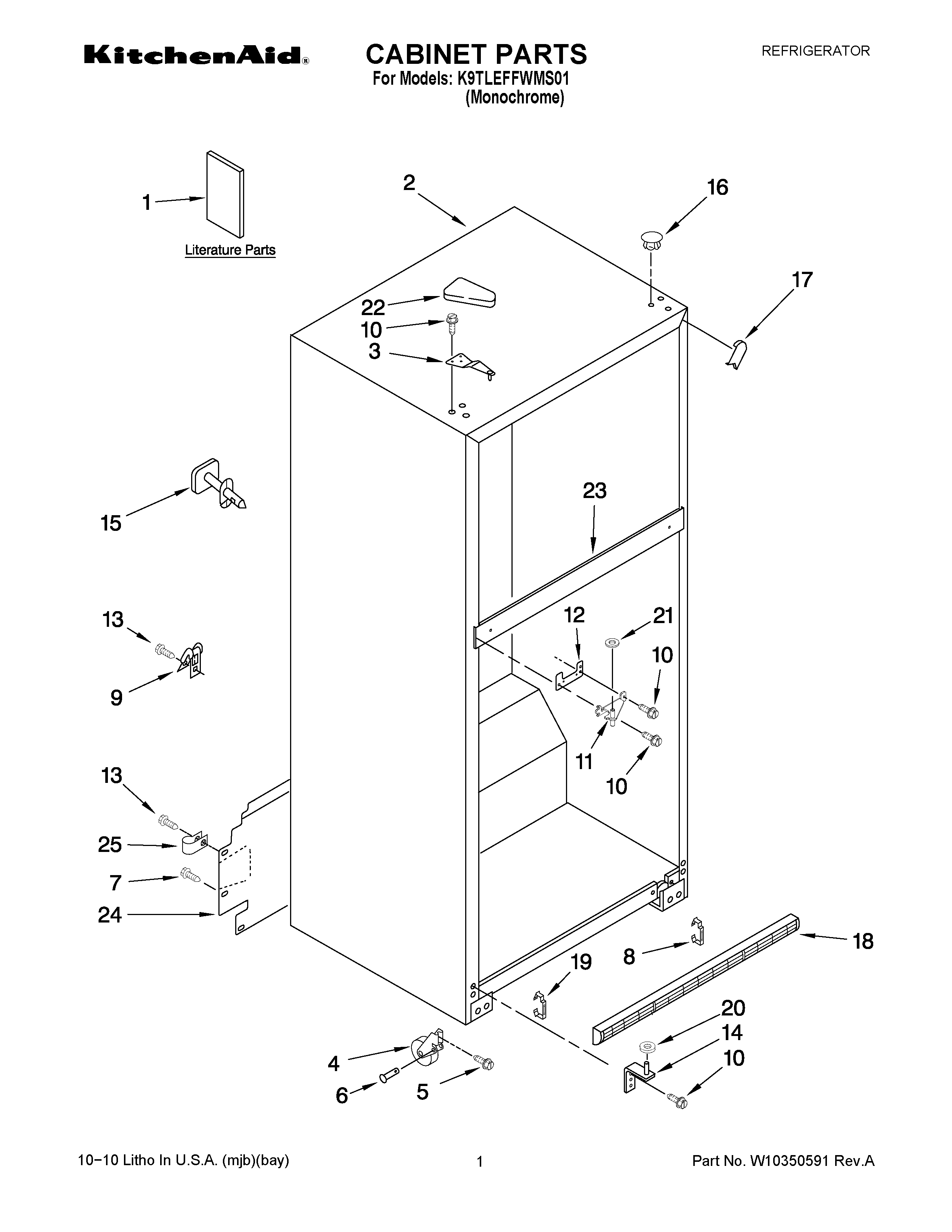

K9TLEFFWMS01 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	SERVICE & WIRING SHEET
1	U & C GUIDETRI
1	U & C GUIDE BI
1	DO-IT-YOURSELF MANUAL, ICEMAKER
3	WP2261963 Whirlpool Refrigerator Door Hinge
4	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP3400504 Whirlpool Refrigerator Screw
6	W11594405 Whirlpool Axle
7	WP489427 Whirlpool Refrigerator Screw
8	2254385 Whirlpool Refrigerator Clip
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183852 Whirlpool Refrigerator Shim
13	WP489464 Whirlpool Refrigerator Screw
14	WP2254473 Whirlpool Refrigerator Door Hinge
16	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
17	W10851579 Whirlpool Refrigerator Filler
18	GRILLE (INCLUDES ITEMS 8 & 19) (APOLLO GREY)
19	CLIP, GRILLE
20	WP487576 Whirlpool Washer
21	WP489467 Whirlpool Hinge Shim
22	W10853622 Whirlpool Refrigerator Cover
23	CABINET (NOT A SERVICEABLE PART)
24	Cover, Unit
25	WP488366 Whirlpool Refrigerator Clamp
