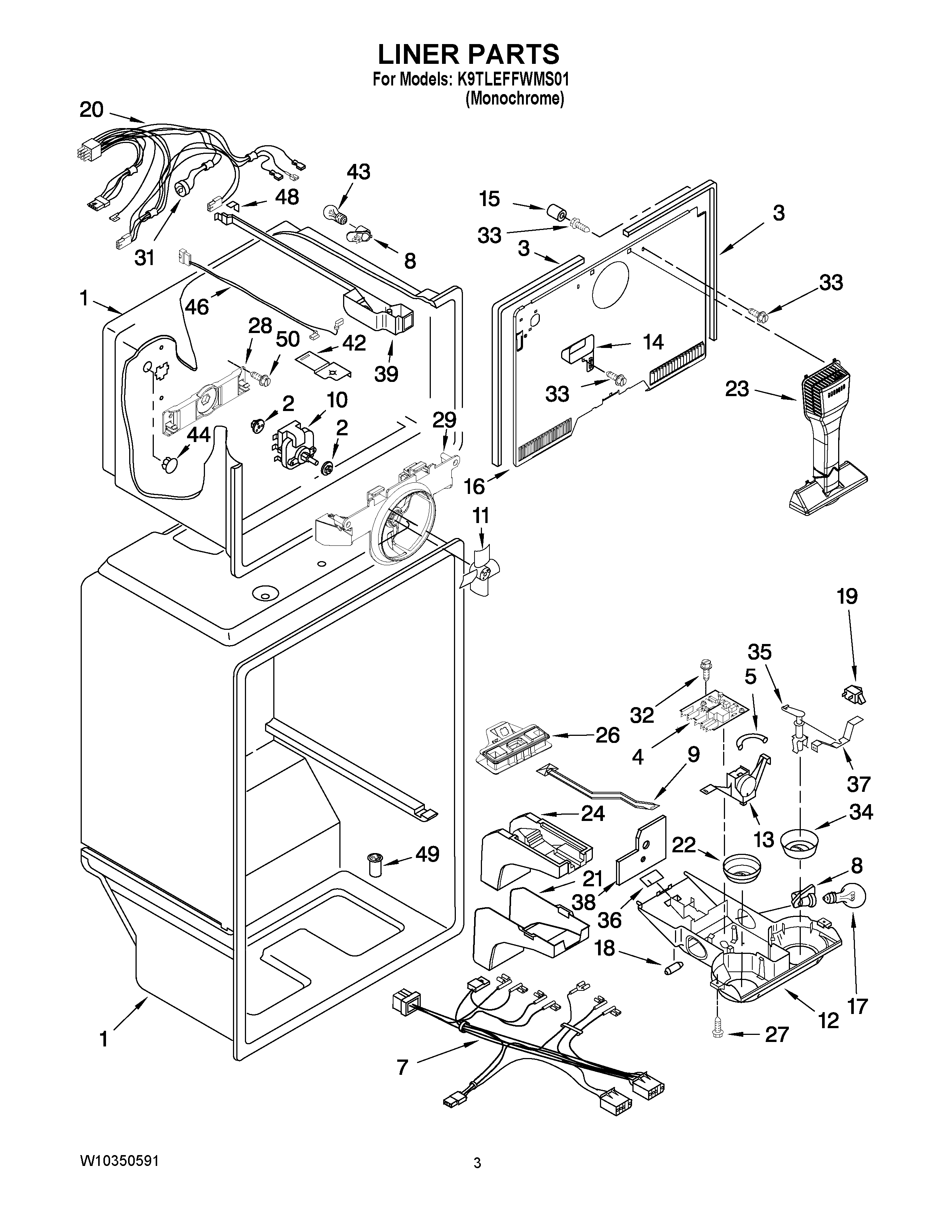

K9TLEFFWMS01 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5	Thermostat Tube Barrier
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	Cover, Hole
15	WP487996 Whirlpool Refrigerator Cap Tube
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	W10129799 Whirlpool Wire Harness
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
26	Air Diffuser, Top
27	WP489442 Whirlpool Refrigerator Screw
28	2254454 Whirlpool Refrigerator Bracket
29	BRACKET, FAN MOTOR
31	WP2321800 Whirlpool Refrigerator Bimetallic Defrost
32	Screw
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
35	Post, Damper
36	WP2205079 Whirlpool Refrigerator Seal
37	Bracket, Damper Knob
38	Shield, heat
39	Housing Base
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	WP941839 Whirlpool Refrigerator Button Plug
46	Wiring Harness, Freezer Light
48	Gasket, Rear
49	WP2210509 Whirlpool Refrigerator Tub Valve
50	WP488163 Whirlpool Refrigerator Screw
