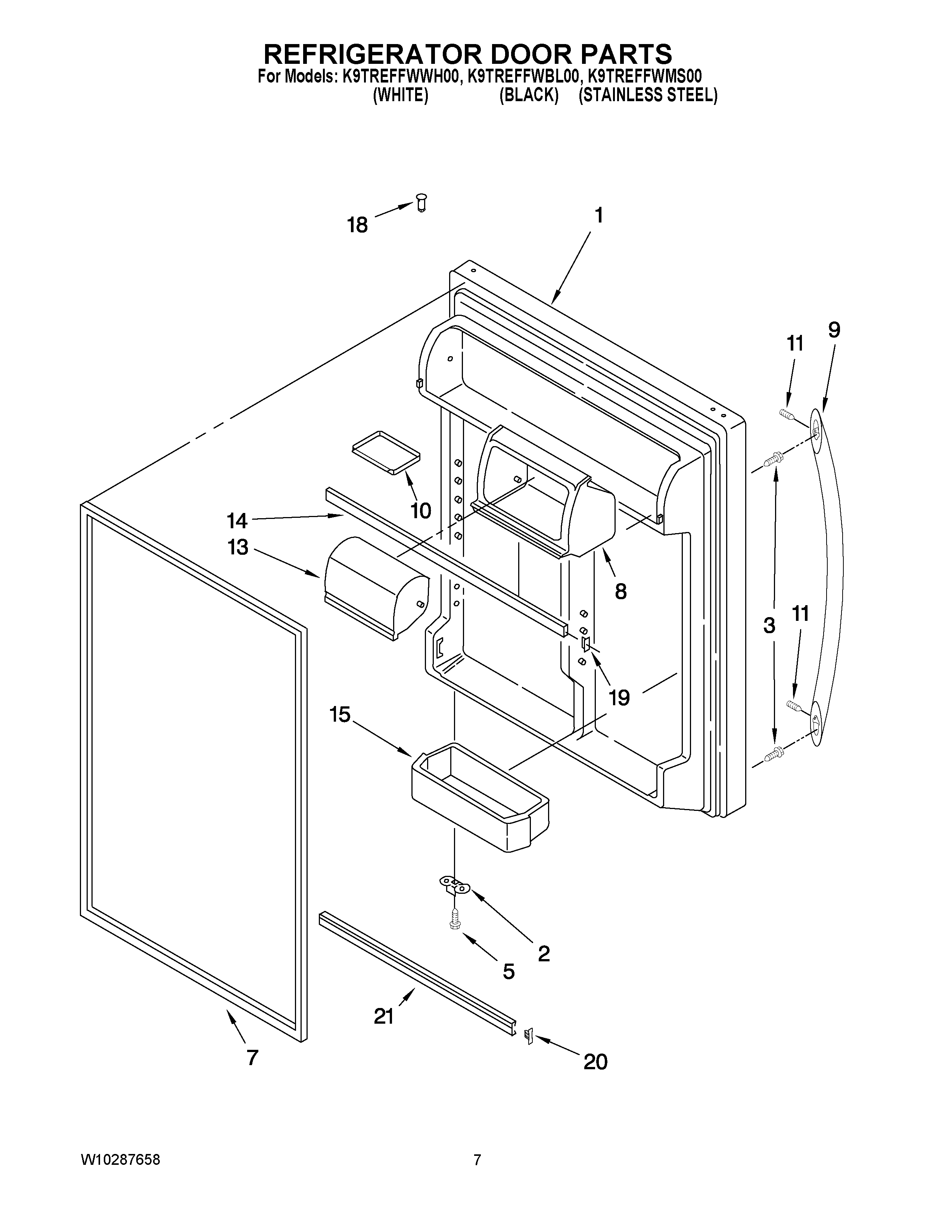

K9TREFFWBL00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 7 & 18) (STAINLESS STEEL)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 7 & 18) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 7 & 18) (BLACK)
2	W11745278 Whirlpool Bracket
3	WPW10170540 Whirlpool Screw
5	WP488921 Whirlpool Refrigerator Screw
7	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
7	2177305 Whirlpool Refrigerator Door FIP Gasket
7	W11624977 Whirlpool Refrigerator FIP Gasket
8	Housing Compartment
9	HANDLE, FREEZER (INCLUDES ILLUS. 11) (ARCH)
9	HANDLE, FREEZER (INCLUDES ILLUS. 11) (BLACK)
9	HANDLE, FREEZER (INCLUDES ILLUS. 11) (WHITE)
10	Tray, Door
11	SET SCREW
13	DOOR-COMP
14	WP2159312 Whirlpool Refrigerator Door Trim
15	Bin, Door (3)
18	WP2314293 Whirlpool Refrigerator Thimble
19	Endcap, Door Trim
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	WPW10421484 Whirlpool Refrigerator Door Trim
