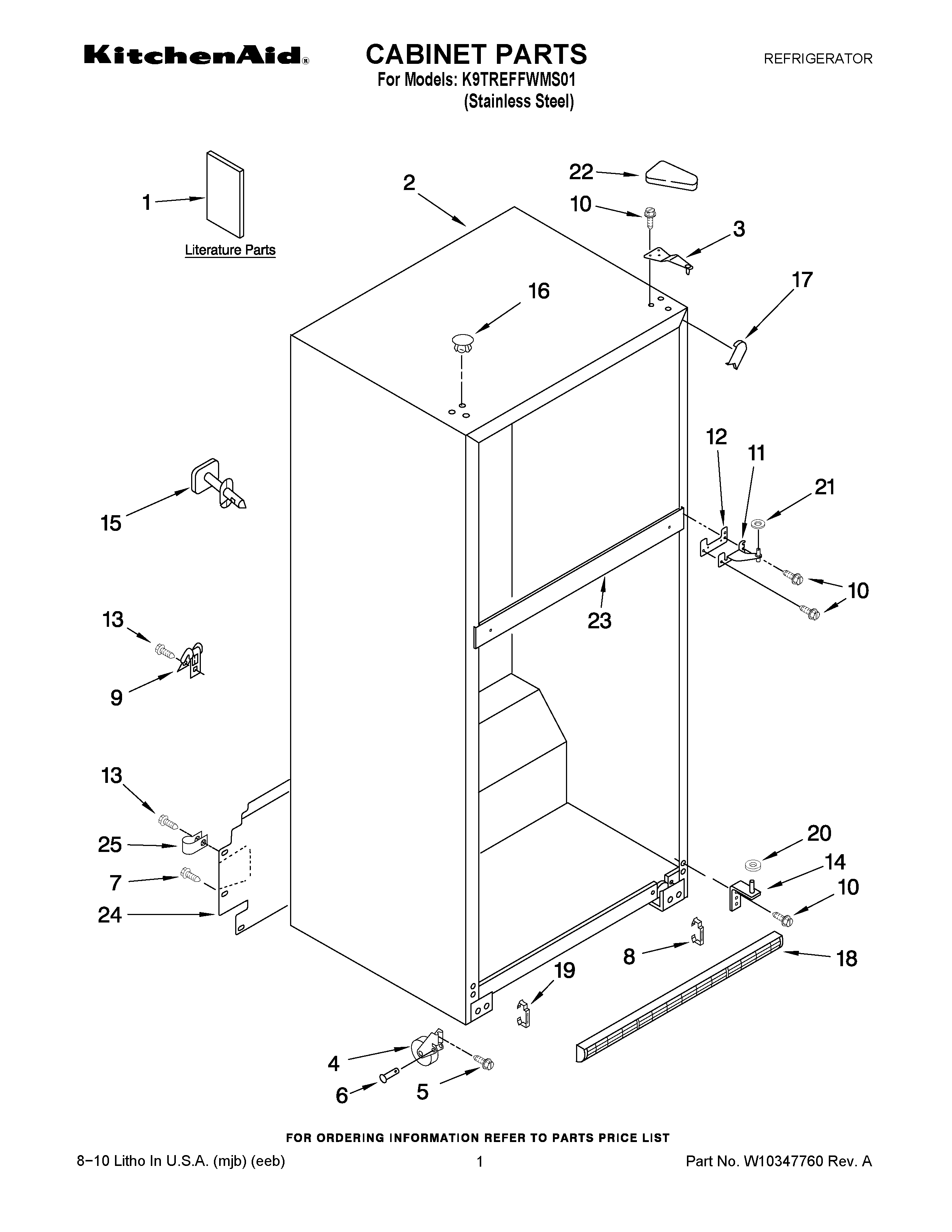

K9TREFFWMS01 01 – CABINET PARTS

K9TREFFWMS01 01 – CABINET PARTS

Written by

in

K9TREFFWMS01 01 – CABINET PARTS

Products

PositionProduct
1U & C GUIDETRI
1SERVICE & WIRING SHEET
1U & C GUIDE BI
1DO-IT-YOURSELF MANUAL, ICEMAKER
3WP2261963 Whirlpool Refrigerator Door Hinge
4WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP3400504 Whirlpool Refrigerator Screw
6W11594405 Whirlpool Axle
7WP489427 Whirlpool Refrigerator Screw
82254385 Whirlpool Refrigerator Clip
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183852 Whirlpool Refrigerator Shim
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
16WPW10520307 Whirlpool Refrigerator Replacement Plug Button
17W10851579 Whirlpool Refrigerator Filler
18GRILLE (INCLUDES ITEMS 8 & 19) (APOLLO GREY)
19CLIP, GRILLE
20WP487576 Whirlpool Washer
21WP489467 Whirlpool Hinge Shim
22W10853622 Whirlpool Refrigerator Cover
23CABINET (NOT A SERVICEABLE PART)
24Cover, Unit
25WP488366 Whirlpool Refrigerator Clamp
