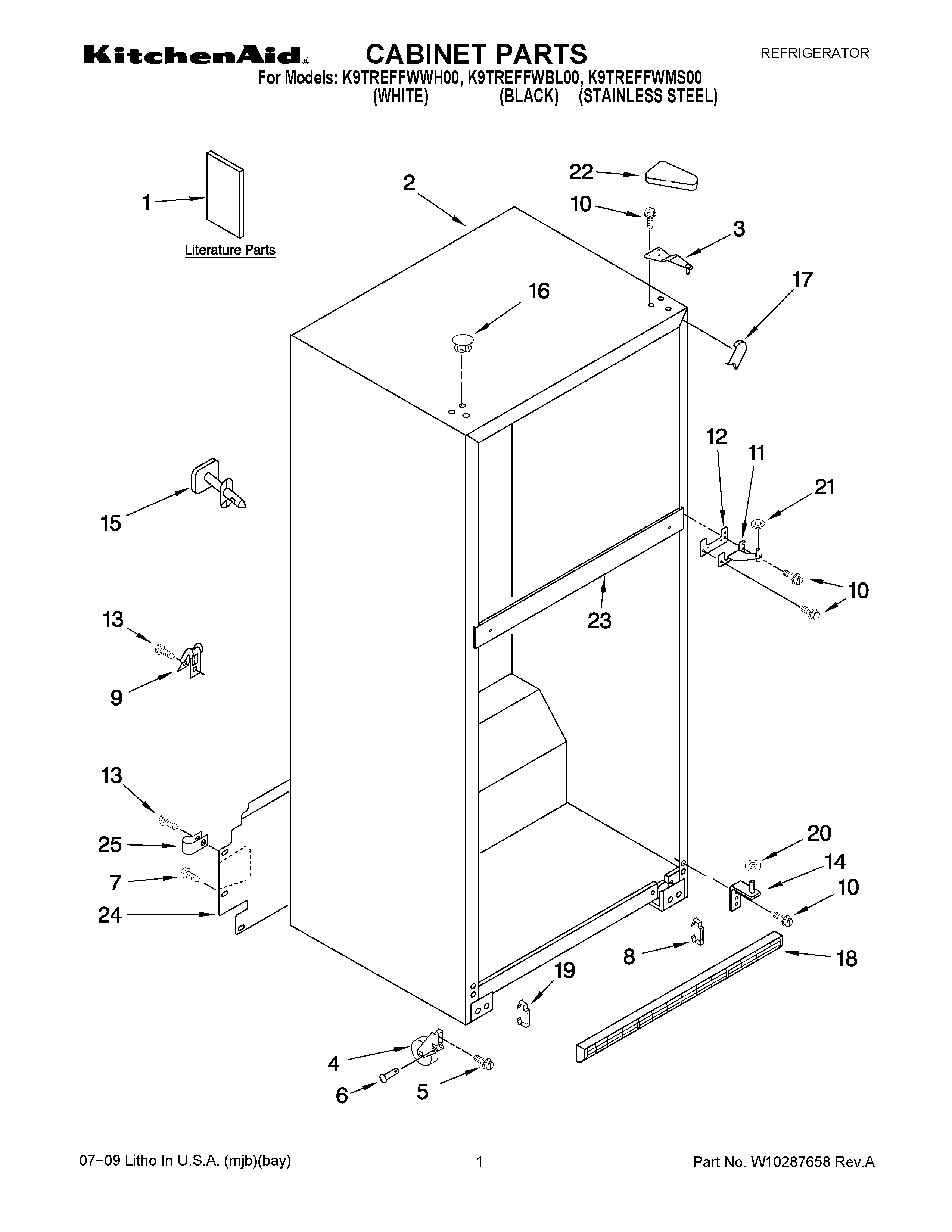

K9TREFFWWH00 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	USE & CARE GUIDE
1	USE & CARE GUIDE
1	DO-IT-YOURSELF MANUAL, ICEMAKER
3	WP2261963 Whirlpool Refrigerator Door Hinge
4	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP3400504 Whirlpool Refrigerator Screw
6	W11594405 Whirlpool Axle
7	WP489427 Whirlpool Refrigerator Screw
8	2254385 Whirlpool Refrigerator Clip
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183852 Whirlpool Refrigerator Shim
13	WP489464 Whirlpool Refrigerator Screw
14	WP2254473 Whirlpool Refrigerator Door Hinge
16	WP2151652 Whirlpool Refrigerator Button Plug
16	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
16	WP2183998 Whirlpool Refrigerator Button Plug
17	W11252732 Whirlpool Refrigerator Filler
17	WPW10283959 Whirlpool Refrigerator Filler
17	W10851579 Whirlpool Refrigerator Filler
18	WP2254386 Whirlpool Refrigerator Grille
18	GRILLE (INCLUDES ITEMS 8 & 19) (APOLLO GREY)
18	Grille (Includes Illus. 4 & 24) (Black)
19	CLIP, GRILLE
20	WP487576 Whirlpool Washer
21	WP489467 Whirlpool Hinge Shim
22	WP2213360 Whirlpool Refrigerator Cover
22	WP2213363 Whirlpool Refrigerator Cover
22	W10853622 Whirlpool Refrigerator Cover
23	CABINET (NOT A SERVICEABLE PART)
24	Cover, Unit
25	WP488366 Whirlpool Refrigerator Clamp
