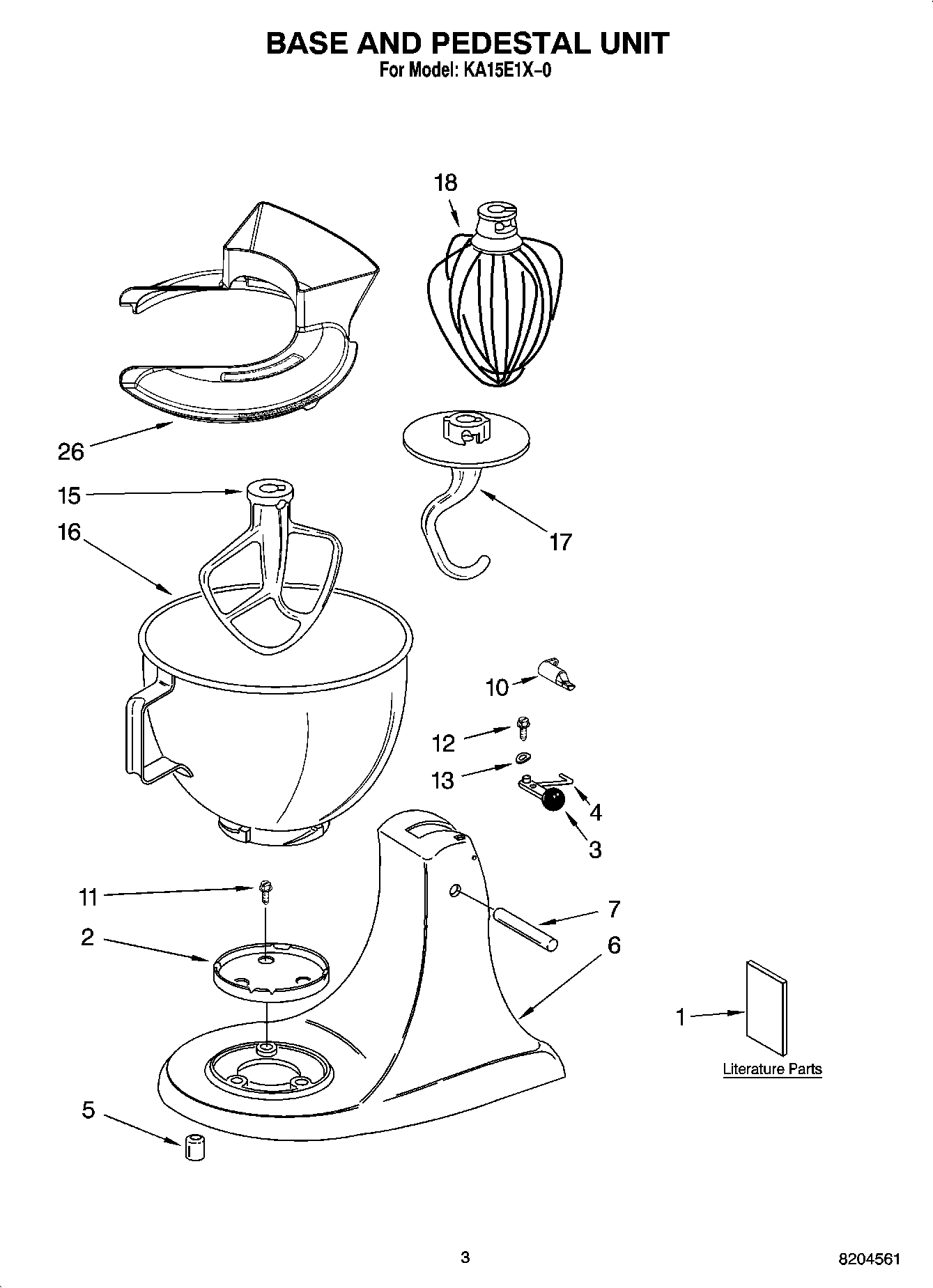

KA15E1X-0 02 – BASE AND PEDESTAL UNIT

KA15E1X-0 02 – BASE AND PEDESTAL UNIT

Written by

in

KA15E1X-0 02 – BASE AND PEDESTAL UNIT

Products

PositionProduct
1Use and Care Guide
1Repair Parts List
2Screw Cap
3Lever, Latch
4Link, Latch
5Foot, Base
6Pedestal
7Pin, Hinge
10Cam, Latch
11SCREW
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
15WPW10672617 Whirlpool Stand Mixer Flat Beater
16Bowl and Base
17WPW10674618 Whirlpool Dough Hook
18WP9704329 Whirlpool Wire Whip
26W11312468 Whirlpool Pour Shelf
